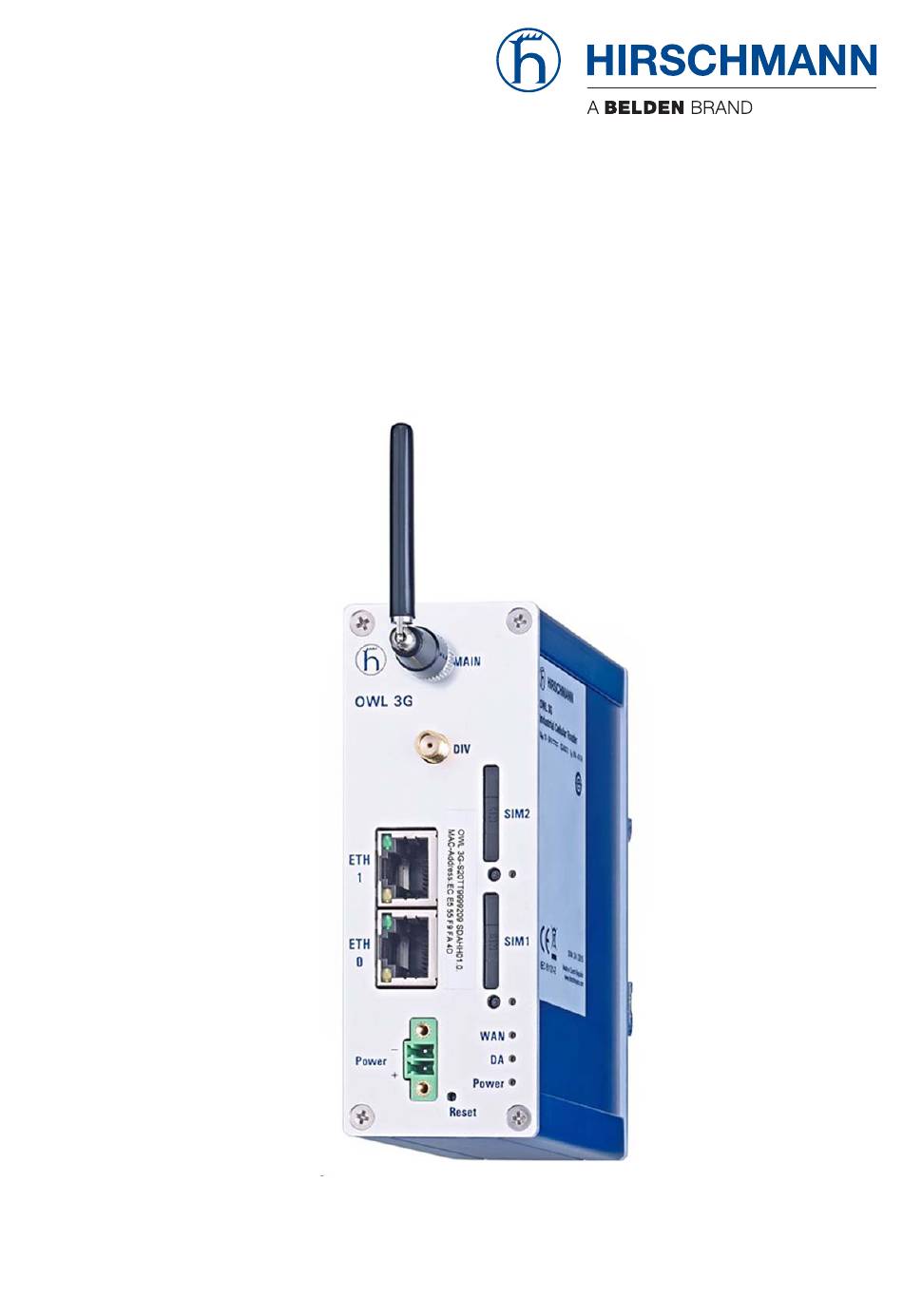

- Page 1 User Manual Installation OWL 3G (Industrial Cellular Router) Installation OWL 3G Technical Support Release 3 06/2017 https://hirschmann-support.belden.eu.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Connecting Components before the First Use Start Configuration 4.3.1 Configuration using a Web Browser Technical Parameters Basic parameters Type tests and environmental conditions Technical Parameters of module Technical Parameters of the processor Recommended literature Installation OWL 3G Release 3 06/2017... - Page 4 Available Literature Possible problems Solutions Customers Support CE-marking E marking Further support Installation OWL 3G Release 3 06/2017...
-
Page 5: About This Guide
About this Guide This document provides technical specifications for the Industrial Cellular Router and illustrates the hardware installation for a Hirschmann Industrial Cellular Router. It also helps the developers to validate their application design using the Industrial Cellular Router. The information in this publication contains general descriptions or... -
Page 6: Safety Instructions
Never start an operation with damaged components. The device does not contain any service components. If the device is not functioning correctly, or if it is damaged, turn off the power supply and return the device to Hirschmann for inspection. WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. - Page 7 Intended usage Use the product only for the application cases described in the Hirschmann product information, including this manual. Operate the product according to the technical parameters. See “First Use” on page 25. Connect components which are suitable for the requirements of the specific application to the product.
- Page 8 Verify that there is at least a minimum distance of 20 cm between the antenna and the human body. Housing Never insert pointed objects (narrow screwdrivers, wires, etc.) into the device or into the connection terminals for electric conductors. Do not touch the connection terminals. Installation OWL 3G Release 3 06/2017...
- Page 9 Note: Insert the SIM Card holder in the SIM card slot very carefully. When inserted improperly, you can damage the SIM card slot. Also, the SIM card can fall out of the holder and end up in the router. Installation OWL 3G Release 3 06/2017...
-
Page 10: Router Description
Router Description Hirschmann has designed the OWL router for wireless communication in mobile networks that make use of the following technologies: HSPA+ UMTS EDGE GPRS Due to the high speed data transfer, up to 14.4 Mbit/s (download) and up to 5.76 Mbit/s (upload), this router is an ideal wireless solution for connecting... - Page 11 This allows you to configure several routers at a time. Note: For the system time backup the device contains a 3 V Lithium Battery (Li/MnO2). Installation OWL 3G Release 3 06/2017...
-
Page 12: Contents Of Package
Contents of Package The basic router set available for delivery includes the following items: router clip for the DIN rail loose power connector General Safety Instructions Figure 1: Contents of Package Installation OWL 3G Release 3 06/2017... -
Page 13: Router Design
Router Design Delivery Identification Product Name Product Code Product Group OWL 3G OWL 3G-S20TT9999209SDAHHXX.X Industrial Cellular Router Table 1: Delivery identification Figure 2: Example of Router Label Installation OWL 3G Release 3 06/2017... -
Page 14: Basic Dimensions Of Router Box
Basic Dimensions of Router Box Figure 3: Basic Dimensions of Router Case Mechanical Dimensions and Mounting Recommendations Mounting recommendations: place router on a work surface DIN rail with the CKD2 holder included Installation OWL 3G Release 3 06/2017... - Page 15 Do not use data cables which conduct working voltage 230 V/50 Hz. Use twisted pair cables for sensor communications. Figure 5: Cable routing Sufficient space must be left before individual connectors for handling of the cables: Installation OWL 3G Release 3 06/2017...
- Page 16 Figure 6: Space in front of connectors For the correct function of the router, use earth-bonding distribution frame for grounding of power supply of router, data cables and antenna. Installation OWL 3G Release 3 06/2017...
-
Page 17: Removing From The Din Rail
After the holder clears the rail rotate the bottom part of the router out away from the DIN rail. Figure 8: Removing from the DIN rail Installation OWL 3G Release 3 06/2017... -
Page 18: Description Of The Front Panel
SIM1 Holder for the first SIM card SIM2 Holder for the second SIM card Reset Returns the configuration in the router to the default settings. Table 2: Delivery identification Figure 9: Router Front Panel Installation OWL 3G Release 3 06/2017... -
Page 19: Status Indication
Communication in progress on radio channel ETH0 Green Selected 100 Mbit/s ETH1 Selected 10 Mbit/s ETH0 Yellow The network cable is connected ETH1 Blinking Data transmission The network cable is not connected Table 4: Router Status Indication Installation OWL 3G Release 3 06/2017... -
Page 20: Power Connector
When you mount the device on a grounded DIN rail, then the DIN rail provides the ground.The shield of a shielded twisted pair cable is connected to the housing and the minus pole of the power supply socket. Installation OWL 3G Release 3 06/2017... -
Page 21: Antenna Connectors
Note: Be very careful when tightening the antenna. If you over tighten the antenna, then you will twist the antenna connector off of the circuit board. Figure 12: Connecting the Antenna The diversity antenna improves radio features of the router at a low signal strength. Installation OWL 3G Release 3 06/2017... -
Page 22: Sim Card Reader
For detailed information about resetting the router refer to the User Manual Configuration. Resetting the router returns the configuration to the default state. Use a narrow screwdriver for pressing the "Reset" button located on the front panel. Installation OWL 3G Release 3 06/2017... -
Page 23: Ethernet Ports Eth0 & Eth1
Data flow direction TXD+ Transmit Data - positive pole Input/Output TXD- Transmit Data - negative pole Input/Output RXD+ Receive Data - positive pole Input/Output RXD- Receive Data - negative pole Input/Output Table 7: Ethernet connector pin-outs Installation OWL 3G Release 3 06/2017... - Page 24 Note: ETH0 and ETH1 ports are not POE (Power Over Ethernet) compatible. Ethernet cable plugged into the RJ45 connector is labeled as ETH0 or ETH1 (see figure below). Figure 16: Connection of an Ethernet Cable Installation OWL 3G Release 3 06/2017...
-
Page 25: First Use
1 SIM card and a power supply. If the antenna is not connected, the router can be damaged. Note: Be very careful when tightening the antenna. If you over tighten the antenna, then you can twist the antenna connector off of the circuit board. Installation OWL 3G Release 3 06/2017... -
Page 26: Start
APN. You can change the parameters of the router behavior using the web interface. You can find a detailed description of the parameters in the User Manual Configuration. Installation OWL 3G Release 3 06/2017... -
Page 27: Configuration
Note: Use the HTTPS protocol for secure communication. After successfully entering the login information a user has access to the router using the Internet browser. Installation OWL 3G Release 3 06/2017... -
Page 28: Technical Parameters
RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m (80 – 2700 MHz) Fast transient EN 61000-4-4 Signal ports ± 2 kV Power ports ± 2 kV Ethernet ports ± 2 kV Table 9: Type tests and environmental conditions Installation OWL 3G Release 3 06/2017... -
Page 29: Technical Parameters Of Module
Multi slot class 12, CS 1 to 4, 3GPP rel. 99/4 standard Support channels GSM/GPRS/EDGE: Quad band, 850/900/1800/1900 MHz UMTS/HSDPA/HSUPA/HSPA+: Five band, 800/850/900/1900/2100 MHz Table 10: Technical parameters of the module Depending on the capabilities of the operator. Installation OWL 3G Release 3 06/2017... -
Page 30: Technical Parameters Of The Processor
Technical Parameters of the processor 32b ARM microprocessor Memory 512 Mb DDR SDRAM 128 Mb FLASH 1 Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100 Mbit/s USB 2.0 interface Table 11: Technical Parameters of the processor Installation OWL 3G Release 3 06/2017... -
Page 31: Recommended Literature
Recommended literature Available Literature User Manual Configuration Installation OWL 3G Release 3 06/2017... - Page 32 10 Mb/s communication rate for the network card connect the computer to the router through a switch start the computer only after the router has completed its boot process Installation OWL 3G Release 3 06/2017...
- Page 33 DNS servers, it is impossible to connect to the dyndns.org server. The router displays the following messages in the log system: – DynDNS daemon started – Error resolving hostname: no such file or directory – Connect to DynDNS server failed Installation OWL 3G Release 3 06/2017...
- Page 34 For example, if the router is changed to the off line mode using an SMS message, then the router remains in this mode until the next restart. This behavior is the same for every control SMS message. Installation OWL 3G Release 3 06/2017...
- Page 35 The router meets the SAR coefficient values defined by the International Commission on Non-Ionizing Radiation (ICNIRP) and the values described in "About protection of health before non-ionized radiation". CE-marking Hirschmann hereby declares that the labeled devices comply with the regulations contained in the following European directives: 2011/65/EU (RoHS) ...
- Page 36 The labeled devices comply with the regulations contained in the following European directive(s): Regulation No. 10 of the Economic Commission for Europe of the United Nations (UN/ECE): Devices with an approval are labeled with the E type approval mark. Installation OWL 3G Release 3 06/2017...
- Page 37 Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.eu.com.
