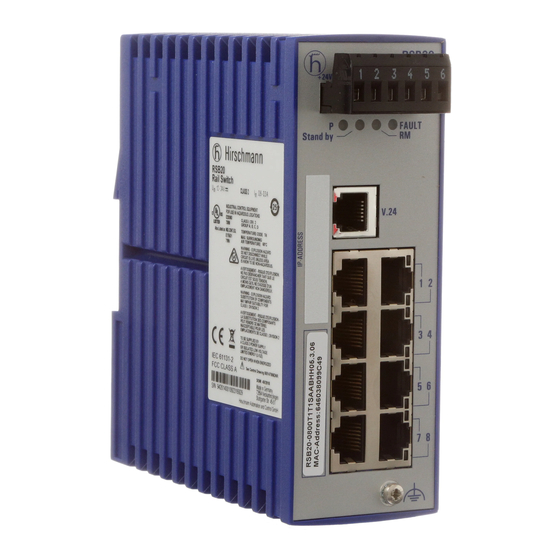

Hirschmann rsb20 Reference Manual

Web-based interface industrial ethernet switch
Hide thumbs Also See for rsb20:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Reference Manual

Web-based Interface
Industrial ETHERNET Switch
RSB20, OCTOPUS OS20/OS24 Managed
RM Web L2B
Technical Support
Release 5.3 05/2012
https://hirschmann-support.belden.eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the rsb20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann rsb20

Summary of Contents for Hirschmann rsb20

  • Page 1: Reference Manual

    Reference Manual Web-based Interface Industrial ETHERNET Switch RSB20, OCTOPUS OS20/OS24 Managed RM Web L2B Technical Support Release 5.3 05/2012 https://hirschmann-support.belden.eu.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Printed in Germany Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents Contents About this Manual Opening the Web-based Interface Basic Settings System Network Software 1.3.1 View the software versions presenton the device 1.3.2 TFTP Software Update 1.3.3 HTTP Software Update Port Configuration Power over ETHERNET Loading/Saving the Configuration 1.6.1 Loading a Configuration 1.6.2 Saving the Configuration 1.6.3 URL 1.6.4 Deleting a configuration...
  • Page 4 Contents Switching Global Filters for MAC addresses Multicasts 4.3.1 Global Configuration 4.3.2 IGMP Querier and IGMP settings 4.3.3 Multicasts 4.3.4 Settings per Port (Table) QoS/Priority Global Port Configuration 5.2.1 Entering the port priority 802.1D/p mapping IP DSCP mapping Redundancy Ring Redundancy 6.1.1 Configuring the HIPER-Ring 6.1.2 Configuring the MRP-Ring Rapid Spanning Tree...
  • Page 5 Contents Alarms (Traps) Report Self Test Advanced DHCP Relay Agent Command Line Appendix Technical Data List of RFCs Underlying IEEE Standards Underlying IEC Norms Copyright of Integrated Software A.5.1 Bouncy Castle Crypto APIs (Java) A.5.2 Broadcom Corporation Readers’ Comments Index Further Support RM Web L2B Release 5.3 05/2012...
  • Page 6 Contents RM Web L2B Release 5.3 05/2012...

  • Page 7: About This Manual

    About this Manual About this Manual The “Web-based Interface” reference manual contains detailed information on using the Web interface to operate the individual functions of the device. The “Command Line Interface” Reference Manual contains detailed information on using the Command Line Interface to operate the individual functions of the device.
  • Page 8 About this Manual RM Web L2B Release 5.3 05/2012...

  • Page 9: Key

    The designations used in this manual have the following meanings:  List Work step  Subheading  Link Cross-reference with link Note: A note emphasizes an important fact or draws your attention to a dependency. ASCII representation in user interface Courier Symbols used: WLAN access point...
  • Page 10 A random computer Configuration Computer Server PLC - Programmable logic controller I/O - Robot RM Web L2B Release 5.3 05/2012...

  • Page 11: Opening The Web-Based Interface

    Opening the Web-based Interface Opening the Web-based Interface To open the Web-based interface, you need a Web browser (a program that can read hypertext), for example Mozilla Firefox version 1 or later, or Microsoft Internet Explorer version 6 or later. Note: The Web-based interface uses Java software 6 (“Java™...
  • Page 12 Opening the Web-based Interface Figure 1: Installing Java  Start your Web browser.  Verify that you have activated Java in the security settings of your Web browser.  Establish the connection by entering the IP address of the device which you want to administer via the Web-based management in the address field of the Web browser.
  • Page 13 Opening the Web-based Interface Figure 2: Login window  Select the desired language.  In the drop-down menu "Login", you select – user, to have read access, or – admin, to have read and write access to the device.  The password “public”, with which you have read access for the login "user", is preset in the password field.
  • Page 14 Opening the Web-based Interface To save any changes made so that they will be retained after a power cycle or reboot of the device use the save option on the "Load/Save" dialog (see page 34 “Saving the Configuration”) Note: If you enter an incorrect configuration, you may block access to your device.
  • Page 15 Opening the Web-based Interface The menu section displays the menu items. By placing the mouse pointer in the menu section and clicking the alternate mouse button you can use “Back” to return to a menu item you have already selected, or “Forward” to jump to a menu item you have already selected.
  • Page 16 Opening the Web-based Interface RM Web L2B Release 5.3 05/2012...

  • Page 17: Basic Settings

    Basic Settings 1 Basic Settings The Basic Settings menu contains the dialogs, displays and tables for the basic configuration:  System  Network  Software  Port configuration  Power over Ethernet (PoE)  Load/Save  Restart RM Web L2B Release 5.3 05/2012...

  • Page 18: System

    Basic Settings 1.1 System 1.1 System The “System“ submenu in the basic settings menu is structured as follows:  Device Status  System data  Device view  Reloading data Figure 4: "System" Submenu Device state  This section of the user interface (Web-based Interface) provides information on the device status and the alarm states the device has detected.

  • Page 19: System Data

    Basic Settings 1.1 System Figure 5: Device status and display of detected alarms 1 - Symbol indicates the Device Status 2 - Cause of the oldest existing alarm detected 3 - Time of the oldest existing alarm detected System Data ...
  • Page 20 Basic Settings 1.1 System Figure 6: Device View What the symbols mean: The port (10, 100 Mbit/s, 1, 10 Gbit/s) is enabled and connection is OK. The port is blocked by network management and has no connection. The port is blocked by network management and has no connection.
  • Page 21 Basic Settings 1.1 System Reloading  This area of the graphical user interface at the bottom left displays the countdown time until the applet requests the current data of this dialog again. Clicking the “Reload” button immediately calls up the current data for the dialog.

  • Page 22: Network

    Basic Settings 1.2 Network 1.2 Network With the Basic settings:Network dialog you define the source from which the device gets its IP parameters after starting, and you assign the IP parameters and configure the HiDiscovery access. RM Web L2B Release 5.3 05/2012...
  • Page 23 Basic Settings 1.2 Network Figure 8: Network parameters dialog  Under “Mode”, you enter where the device gets its IP parameters:  In the BOOTP mode, the configuration is via a BOOTP or DHCP server on the basis of the MAC address of the device (see on page 33 “Loading/Saving the Configuration”).
  • Page 24 Basic Settings 1.2 Network Note: When you change the network mode from ”Local“ to ”BOOTP“ or ”DHCP“, the server will assign a new IP address to the device. If the server does not respond, the IP address will be set to 0.0.0.0, and the BOOTP/ DHCP process will try to obtain an IP address again.

  • Page 25: Software

    Basic Settings 1.3 Software 1.3 Software The software dialog enables you display the software versions in the device and to carry out a software update of the device via file selection. Figure 9: Software dialog RM Web L2B Release 5.3 05/2012...

  • Page 26: View The Software Versions Presenton The Device

    Basic Settings 1.3 Software 1.3.1 View the software versions present on the device The dialog shows the existing software versions:  Stored Version: The version of the software stored in the flash memory.  Running Version: The version of the software currently running. ...

  • Page 27: Http Software Update

    Basic Settings 1.3 Software 1.3.3 HTTP Software Update For an HTTP software update (via a file selection window), copy the device software to a data carrier that you can access from your workstation.  In the file selection frame, click on “...”. ...

  • Page 28: Port Configuration

    Basic Settings 1.4 Port Configuration 1.4 Port Configuration This configuration table allows you to configure each port of the device and also display each port‘s current mode of operation (link state, bit rate (speed) and duplex mode).  In the “Name” column, you can enter a name for every port. ...
  • Page 29 Basic Settings 1.4 Port Configuration Note: The active automatic configuration has priority over the manual configuration. Note: The following settings are required for the ring ports in a HIPER-Ring: Port type Bit rate Autonegotiation Port setting Duplex (automatic configuration) 100 Mbit/s 100 Mbit/s full duplex (FDX) Optical 100 Mbit/s...
  • Page 30 Basic Settings 1.4 Port Configuration Figure 10: Port Configuration Table Dialog RM Web L2B Release 5.3 05/2012...

  • Page 31: Power Over Ethernet

    Basic Settings 1.5 Power over ETHERNET 1.5 Power over ETHERNET For the devices  OS24-080900T5T5TFFBHH  OS24-080900T5T5TNEBHH The device supports Power over ETHERNET according to IEEE 802.3at (PoE+) and allows you to supply current to devices such as IP phones via the twisted-pair cable.
  • Page 32 Basic Settings 1.5 Power over ETHERNET  The "Class" column indicates the class of the connected device: Class: Maximum delivered power 0: 15.4 W 1: 4.0 W 2: 7.0 W 3: 15.4 W 4: 30.0 W  The column „Consumption [W]“ displays the current power delivered at the respective port.

  • Page 33: Loading/Saving The Configuration

    Basic Settings 1.6 Loading/Saving the Configuration 1.6 Loading/Saving the Configuration With this dialog you can:  load a configuration,  save a configuration,  enter a URL,  restore the delivery configuration,  cancel a configuration change. Figure 12: Load/Save dialog RM Web L2B Release 5.3 05/2012...

  • Page 34: Loading A Configuration

    Basic Settings 1.6 Loading/Saving the Configuration 1.6.1 Loading a Configuration In the “Load” frame, you have the option to  load a configuration saved on the device,  load a configuration stored under the specified URL,  load a configuration stored on the specified URL and save it on the device, ...

  • Page 35: Url

    Basic Settings 1.6 Loading/Saving the Configuration If you change the current configuration (for example, by switching a port off), the Web-based interface changes the “load/save” symbol in the navigation tree from a disk symbol to a yellow triangle. After saving the configuration, the Web-based interface displays the “load/save”...

  • Page 36: Using The Autoconfiguration Adapter (Aca)

    Basic Settings 1.6 Loading/Saving the Configuration 1.6.5 Using the AutoConfiguration Adapter (ACA) The ACAs are devices for loading/saving the configuration data of a device. An ACA enables the configuration data to be transferred easily by means of a substitute device of the same type. Note: The described devices use the following AutoConfiguration Adapter: ACA 11.
  • Page 37 Basic Settings 1.6 Loading/Saving the Configuration Status Meaning notPresent No ACA present The configuration data from the ACA and the device match. removed The ACA was removed after booting. notInSync - The configuration data of the ACA and the device do not match, or only one file exists - no configuration file is present on the ACA or on the device outOfMemory...

  • Page 38: Restart

    Basic Settings 1.7 Restart 1.7 Restart This dialog provides you with the following functions:  initiate a cold start of the device. The device reloads the software from the non-volatile memory, restarts, and performs a self-test. Reload the website in your browser to reaccess the device after restarting.
  • Page 39 Basic Settings 1.7 Restart Figure 13: Restart Dialog RM Web L2B Release 5.3 05/2012...
  • Page 40 Basic Settings 1.7 Restart RM Web L2B Release 5.3 05/2012...

  • Page 41: Security

    Security 2 Security The “Security” menu contains the dialogs, displays and tables for configuring the security settings:  Password/SNMPv3 access  SNMPv1/v2 access  Web access RM Web L2B Release 5.3 05/2012...

  • Page 42: Password / Snmpv3 Access

    Security 2.1 Password / SNMPv3 access 2.1 Password / SNMPv3 access This dialog gives you the option of changing the read and read/write passwords for access to the device via the Web-based interface, via the CLI, and via SNMPv3 (SNMP version 3). Set different passwords for the read password and the read/write password so that a user that only has read access (user name “user”) does not know, or cannot guess, the password for read/write access (user name “admin”).
  • Page 43 Security 2.1 Password / SNMPv3 access Figure 14: Dialog Password/SNMP Access Note: If you do not know a password with “read/write” access, you will not have write access to the device. Note: For security reasons, the device does not display the passwords. Make a note of every change.
  • Page 44 Security 2.1 Password / SNMPv3 access You can block access via a Web browser in a separate dialog (see on page 48 “Web Access”). Access at IP address level is restricted in a separate dialog (see on page 45 “SNMPv1/v2 Access Settings”).

  • Page 45: Snmpv1/V2 Access Settings

    Security 2.2 SNMPv1/v2 Access Settings 2.2 SNMPv1/v2 Access Settings With this dialog you can select access via SNMPv1 or SNMPv2. In the state on delivery, both protocols are activated. You can thus manage the device with HiVision and communicate with earlier versions of SNMP.
  • Page 46 Security 2.2 SNMPv1/v2 Access Settings Binary notation of the mask 255.255.255.240: 1111 1111 1111 1111 1111 1111 1111 0000 mask bits Binary notation of the IP address 172.168.23.20: 1010 1100 1010 1000 0001 0111 0001 0100 The binary representation of the mask with the IP address yields an address range of: 1010 1100 1010 1000 0001 0111 0001 0000 bis...
  • Page 47 Security 2.2 SNMPv1/v2 Access Settings Figure 15: SNMPv1/v2 Access Dialog RM Web L2B Release 5.3 05/2012...

  • Page 48: Web Access

    Security 2.3 Web Access 2.3 Web Access This dialog allows you to switch off the Web server on the device. Figure 16: Web Access dialog 2.3.1 Description of Web Access (http) The device's Web server allows you to configure the device by using the Web-based interface.
  • Page 49 Security 2.3 Web Access After the Web server has been switched off, it is no longer possible to log in via a Web browser. The login in the open browser window remains active. Note: The Command Line Interface allows you to reactivate the Web server. RM Web L2B Release 5.3 05/2012...
  • Page 50 Security 2.3 Web Access RM Web L2B Release 5.3 05/2012...

  • Page 51: Time

    Time 3 Time With this dialog you can enter time-related settings independently of the time synchronization protocol selected.  The “System Time (UTC)” displays the time with reference to Universal Time Coordinated. The time displayed is the same worldwide. Local time differences are not taken into account.
  • Page 52 Time Interaction of PTP and SNTP According to PTP (IEEE 1588) and SNTP, both protocols can exist in parallel in the same network. However, since both protocols affect the system time of the device, situations may occur in which the two protocols compete with each other.

  • Page 53: Sntp Configuration

    Time 3.1 SNTP configuration 3.1 SNTP configuration The Simple Network Time Protocol (SNTP) enables you to synchronize the system time in your network. The device supports the SNTP client and the SNTP server function. The SNTP server makes the UTC (Universal Time Coordinated) available. UTC is the time relating to the coordinated world time measurement.
  • Page 54 Time 3.1 SNTP configuration Parameter Meaning Possible Default Values Setting Server status Switches the SNTP server On/Off. On, Off Anycast destination IP address, to which the SNTP server of the Valid IPv4 0.0.0.0 address device sends the SNTP packets (see address table Anycast send interval Time interval at which the device sends...
  • Page 55 Time 3.1 SNTP configuration Parameter Meaning Possible Values Default Setting Client Status Switches the SNTP client On/Off. On, Off External server IP address of the SNTP server from which the Valid IPv4 address 0.0.0.0 address device periodically requests the system time. Redundant IP address of the SNTP server from which the Valid IPv4 address 0.0.0.0...
  • Page 56 Time 3.1 SNTP configuration Figure 18: SNTP Dialog RM Web L2B Release 5.3 05/2012...

  • Page 57: Ptp (Ieee 1588)

    Time 3.2 PTP (IEEE 1588) 3.2 PTP (IEEE 1588) Precise time management is required for running time-critical applications via a LAN. The IEEE 1588 standard with the Precision Time Protocol (PTP) describes a procedure that determines the best master clock in a LAN and thus enables precise synchronization of the clocks in this LAN.
  • Page 58 Time 3.2 PTP (IEEE 1588) Figure 19: Dialog PTP RM Web L2B Release 5.3 05/2012...

  • Page 59: Switching

    Switching 4 Switching The switching menu contains the dialogs, displays and tables for configuring the switching settings:  Switching Global  Filters for MAC Addresses  Rate Limiter  Multicasts RM Web L2B Release 5.3 05/2012...

  • Page 60: Switching Global

    Switching 4.1 Switching Global 4.1 Switching Global Variable Meaning Possible Values Default Setting MAC address Display the MAC address of the device (read only) Aging Time (s) Enter the Aging Time in seconds for 15-3.825 dynamic MAC address entries. Table 9: Switching:Global dialog Figure 20: Dialog Switching Global RM Web L2B...

  • Page 61: Filters For Mac Addresses

    Switching 4.2 Filters for MAC addresses 4.2 Filters for MAC addresses The filter table for MAC addresses is used to display and edit filters. Each row represents one filter. Filters specify the way in which data packets are sent. They are set automatically by the device (learned status) or manually. Data packets whose destination address is entered in the table are sent from the receiving port to the ports marked in the table.
  • Page 62 Switching 4.2 Filters for MAC addresses Note: The filter table allows you to create up to 100 filter entries for Multicast addresses. RM Web L2B Release 5.3 05/2012...

  • Page 63: Multicasts

    Switching 4.3 Multicasts 4.3 Multicasts With this dialog you can:  activate/deactivate the IGMP function globally,  configure the IGMP protocol globally and per port. Figure 22: Multicasts dialog RM Web L2B Release 5.3 05/2012...

  • Page 64: Global Configuration

    Switching 4.3 Multicasts 4.3.1 Global Configuration In this frame you can:  activate/deactivate the IGMP Snooping protocol. Parameter Meaning Default setting IGMP Snooping Activate IGMP Snooping globally for the entire device. deselected disabled Deactivate IGMP Snooping globally for the entire device. selected If IGMP Snooping is switched off: ...
  • Page 65 Switching 4.3 Multicasts Parameter Bedeutung Wertebereich Voreinstellung IGMP Querier IGMP Querier Switch query function on/off enabled Protocol Version Select IGMP version 1, 2 or 3. 1, 2, 3 Send Interval Enter the interval at which the switch 2-3,599 s 125 s sends query packets.

  • Page 66: Multicasts

    Switching 4.3 Multicasts Parameter Protocol Value range Default setting Version Max. Response Time, 1, 2 1-25 seconds 10 seconds 1-3,598 seconds Send Interval 1, 2, 3 2-3,599 seconds 125 seconds Group Membership Interval 1, 2, 3 3-3,600 seconds 260 seconds Table 12: Value range for - Max.
  • Page 67 Switching 4.3 Multicasts Parameter Meaning Value range Default setting Unknown Multicasts  Send to Query Ports: Send to Query Send to All The device sends the packets Ports, Send to Ports with an unknown MAC/IP All Ports, Multicast address to all query Discard ports.
  • Page 68 Switching 4.3 Multicasts Note: The way in which unlearned Multicast addresses are handled also applies to the reserved addresses from the “Local Network Control Block” (224.0.0.0 - 224.0.0.255). This can have an effect on higher-level routing protocols. RM Web L2B Release 5.3 05/2012...

  • Page 69: Settings Per Port (Table)

    Switching 4.3 Multicasts 4.3.4 Settings per Port (Table) With this configuration table you can enter port-related settings for:  IGMP Parameter Meaning Value range Default setting Module Module number for modular devices, otherwise 1. Port Module and port numbers to which this entry applies.
  • Page 70 IGMP queries (default automatic setting). This column allows you to also send IGMP report messages to: other selected ports (enable) or connected Hirschmann devices (automatic). Prerequisite: In the Switching:Multicasts:Global Setting dialog, the IGMP Snooping mode is selected. Learned Query...

  • Page 71: Qos/Priority

    QoS/Priority 5 QoS/Priority The device enables you to set  how it evaluates the QoS/prioritizing information of incoming data packets: – VLAN priority based on IEEE 802.1Q/ 802.1D (Layer 2) – Type of Service (ToS) or DiffServ (DSCP) for IP packets (Layer 3) ...

  • Page 72: Global

    QoS/Priority 5.1 Global 5.1 Global With this dialog you can:  enter the IP-DSCP value for management packets in the range 0 to 63 (default setting: 0 (be/cs0)). In order for you to have full access to the management of the device, even when there is a high network load, the device enables you to prioritize management packets.
  • Page 73 QoS/Priority 5.1 Global  display the maximum number of queues possible per port. The device supports 4 (8 for MACH 4000, MACH 104, MACH 1040 and PowerMICE) priority queues (traffic classes in compliance with IEEE 802.1D).  select the trust mode globally. You use this to specify how the device handles received data packets that contain priority information.
  • Page 74 QoS/Priority 5.1 Global Figure 23: Global dialog RM Web L2B Release 5.3 05/2012...

  • Page 75: Port Configuration

    QoS/Priority 5.2 Port Configuration 5.2 Port Configuration This dialog allows you to configure the ports. You can:  assign a port priority to a port. Parameter Meaning Module Module of the device on which the port is located. Port Port to which this entry applies. Port priority Enter the port priority.

  • Page 76: Entering The Port Priority

    QoS/Priority 5.2 Port Configuration 5.2.1 Entering the port priority  Double-click a cell in the “Port priority” column and enter the priority (0-7). According to the priority entered, the device assigns the data packets that it receives at this port to a traffic class (see table 17).

  • Page 77: D/P Mapping

    QoS/Priority 5.3 802.1D/p mapping 5.3 802.1D/p mapping The 802.1D/p mapping dialog allows you to assign a traffic class to every VLAN priority. RM Web L2B Release 5.3 05/2012...

  • Page 78: Vlan Priority

    QoS/Priority 5.3 802.1D/p mapping Figure 25: 802.1D/p Mapping dialog  Enter the desired value from 0 to 3 in the Traffic Class field for every VLAN priority. Port priority Traffic class (default setting) IEEE 802.1D traffic type Best effort (default) Background Standard Excellent effort (business critical)
  • Page 79 QoS/Priority 5.3 802.1D/p mapping Note: Network protocols and redundancy mechanisms use the highest traffic class 3. Therefore, select other traffic classes for application data. RM Web L2B Release 5.3 05/2012...

  • Page 80: Ip Dscp Mapping

    QoS/Priority 5.4 IP DSCP mapping 5.4 IP DSCP mapping The IP DSCP mapping table allows you to assign a traffic class to every DSCP value.  Enter the desired value from 0 to 3 in the Traffic Class field for every DSCP value (0-63).
  • Page 81 QoS/Priority 5.4 IP DSCP mapping  Assured Forwarding (AF): Provides a differentiated schema for handling different data traffic (RFC 2597).  Default Forwarding/Best Effort: No particular prioritizing. DSCP value DSCP name Traffic class (default setting) Best Effort /CS0 9,11,13,15 10,12,14 AF11,AF12,AF13 17,19,21,23 18,20,22...
  • Page 82 QoS/Priority 5.4 IP DSCP mapping RM Web L2B Release 5.3 05/2012...

  • Page 83: Redundancy

    Redundancy 6 Redundancy Under Redundancy you will find the dialogs and views for configuring and monitoring the redundancy functions:  Ring Redundancy  Sub-Ring  Redundant coupling of Rings and network segments  Rapid Spanning Tree Protocol (RSTP) RM Web L2B Release 5.3 05/2012...

  • Page 84: Ring Redundancy

     Within a HIPER-Ring, you can use any combination of the following devices: – RS2-./. – RS2-16M – RS2-4R – RS20, RS30, RS40 – RSB20 – RSR20, RSR30 – OCTOPUS – MICE – MS20, MS30 – PowerMICE – MACH 100 –...
  • Page 85 Redundancy 6.1 Ring Redundancy  Receive Ring information.  Delete the Ring Redundancy. Note: Only one Ring Redundancy method can be enabled on one device at any one time. When changing to another Ring Redundancy method, deactivate the function for the time being. Parameter Meaning Version...

  • Page 86: Configuring The Hiper-Ring

    Redundancy 6.1 Ring Redundancy 6.1.1 Configuring the HIPER-Ring For the ring ports, select the following basic settings in the Basic Settings:Port Configuration dialog: Port type Bit rate Autonegotiation Port setting Duplex (automatic configuration) 100 Mbit/s 100 Mbit/s full duplex (FDX) Optical 100 Mbit/s 100 Mbit/s full duplex (FDX)
  • Page 87 Redundancy 6.1 Ring Redundancy Note: As an alternative to using software to configure the HIPER-Ring, with devices RS20/30/40 and MS20/30 you can also use DIP switches to enter a number of settings on the devices. You can also use a DIP switch to enter a setting for whether the configuration via DIP switch or the configuration via software has priority.
  • Page 88 Redundancy 6.1 Ring Redundancy Figure 27: Selecting ring redundancy, entering ring ports, enabling/disabling ring manager and selecting ring recovery. Note: Deactivate the Spanning Tree protocol for the ports connected to the redundant ring, because the Spanning Tree and the Ring Redundancy work with different reaction times ( Redundancy:Rapid Spanning Tree:Port).

  • Page 89: Configuring The Mrp-Ring

    Redundancy 6.1 Ring Redundancy 6.1.2 Configuring the MRP-Ring To configure an MRP-Ring, you set up the network to meet your demands. For the ring ports, select the following basic settings in the Basic Settings:Port Configuration dialog: Port type Bit rate Autonegotiation Port setting Duplex...
  • Page 90 Otherwise you activate the advanced Configuration mode. Note: All Hirschmann devices that support the MRP-Ring also support the advanced mode. Ring If there is exactly one device, you switch the Ring Manager function on at the Manager ends of the line.
  • Page 91 Redundancy 6.1 Ring Redundancy Figure 28: Selecting MRP-Ring version, entering ring ports and enabling/disabling ring manager Note: For all devices in an MRP-Ring, activate the MRP compatibility in the Redundancy:Spanning Tree:Global dialog if you want to use RSTP in the MRP-Ring. If this is not possible, perhaps because individual devices do not support the MRP compatibility, you deactivate the Spanning Tree protocol at the ports connected to the MRP-Ring.

  • Page 92: Rapid Spanning Tree

    Redundancy 6.2 Rapid Spanning Tree 6.2 Rapid Spanning Tree With this dialog you can:  switch the Rapid Spanning Tree Protocol on/off  display bridge-related information on the Spanning Tree Protocol  configure device-related parameters of the Rapid Spanning Tree Protocol ...
  • Page 93 Redundancy 6.2 Rapid Spanning Tree Note: RSTP reduces a layer 2 network topology with redundant paths into a tree structure (Spanning Tree) that does not contain any more redundant paths. One of the Switches takes over the role of the root bridge here. The maximum number of devices permitted in an active branch (from the root bridge to the tip of the branch) is specified by the variable Max Age for the current root bridge.

  • Page 94: Global

    Redundancy 6.2 Rapid Spanning Tree 6.2.1 Global Note: Rapid Spanning Tree is activated on the device by default, and it automatically begins to resolve the existing topology into a tree structure. If you have deactivated RSTP on individual devices, you avoid loops during the configuration phase.
  • Page 95 Redundancy 6.2 Rapid Spanning Tree Parameter Meaning Possible Default Setting Values Function Switch the RSTP function for this device “On” or “Off”. If you switch off the RSTP for a device globally, the device floods the RSTP packets received like normal Multicast packets to the ports.
  • Page 96 Redundancy 6.2 Rapid Spanning Tree Parameter Meaning Possible Default Setting Values Priority Sets the local bridge priority. 0 ≤ n*4096 ≤ 32,768 The bridge priority and its own MAC 61440 address make up this separate Bridge ID. The device with the best (numerically lowest) priority assumes the role of the root bridge.
  • Page 97 Redundancy 6.2 Rapid Spanning Tree Parameter Meaning Possible Default Setting Values Bridge ID The local Bridge ID, made up of the local (read only) priority and its own MAC address. The format is ppppp / mm mm mm mm mm mm, with: ppppp: priority (decimal) and mm: the respective byte of the MAC address (hexadecimal).
  • Page 98 Redundancy 6.2 Rapid Spanning Tree Figure 29: RSTP global dialog RM Web L2B Release 5.3 05/2012...

  • Page 99: Rapid Spanning Tree Port

    Redundancy 6.2 Rapid Spanning Tree 6.2.2 Rapid Spanning Tree Port Parameter Meaning Possible Values Default Setting STP State Here you can turn RSTP on or off for this port. If you turn RSTP off for this port while RSTP is globally enabled for the device, the device will discard RSTP frames received on this port.
  • Page 100 Redundancy 6.2 Rapid Spanning Tree Parameter Meaning Possible Values Default Setting Auto Edge Port The setting for Auto Edge Port only true, false true takes effect if the parameter "Oper Edge Port“ has been set to "false“. if "Auto Edge Port“ is set to "true“, the port will transition to the forwarding state within 1.5 * Hello Time (3 seconds).
  • Page 101 Redundancy 6.2 Rapid Spanning Tree Figure 30: RSTP Port dialog RM Web L2B Release 5.3 05/2012...
  • Page 102 Redundancy 6.2 Rapid Spanning Tree RM Web L2B Release 5.3 05/2012...

  • Page 103: Diagnostics

    Diagnostics 7 Diagnostics The diagnosis menu contains the following tables and dialogs:  Trap Log  Ports (statistics, utilization, SFP modules)  Topology Discovery  Port Mirroring  Device Status  Signal Contact  Alarms (Traps)  Report (log file, system information) ...

  • Page 104: Event Log

    Diagnostics 7.1 Event Log 7.1 Event Log The table lists the logged events with a time stamp. The “Reload” button allows you to update the content of the event log, and with the “Delete” button you delete the content of the event log. Figure 31: Event log table RM Web L2B Release 5.3 05/2012...

  • Page 105: Ports

    Diagnostics 7.2 Ports 7.2 Ports The port menu contains displays and tables for the individual ports:  Statistics table  Utilization  SFP Modules 7.2.1 Statistics table This table shows you the contents of various event counters. In the Restart menu item, you can reset the event counters to zero using "Warm start", "Cold start"...

  • Page 106: Network Load

    Diagnostics 7.2 Ports 7.2.2 Network load This table displays the network load of the individual ports. The network load is the data quantity that the port received in the previous 30 s, compared to the maximum possible data quantity at its currently configured data rate. In the “Upper Threshold[%]”...

  • Page 107: Sfp Modules

    Diagnostics 7.2 Ports 7.2.3 SFP modules The SFP status display enables you to look at the current SFP module connections and their properties. The properties include: Parameter Meaning Module.Port Port identification using module and port numbers of the device, e.g. 2.1 for port one of module two.

  • Page 108: Topology Discovery

    Diagnostics 7.3 Topology Discovery 7.3 Topology Discovery The table on the “LLDP” tab page shows you the collected LLDP information for neighboring devices. This information enables the network management station to map the structure of your network. Activating “Display FDB entries” below the table allows you to add entries for devices without active LLDP support to the table.

  • Page 109: Port Mirroring

    Diagnostics 7.4 Port Mirroring 7.4 Port Mirroring The port mirroring function enables you to review the data traffic at up to 8 ports of the device for diagnostic purposes. The device additionally forwards (mirrors) the data for these ports to another port. This process is also called port mirroring.
  • Page 110 Diagnostics 7.4 Port Mirroring Note: When port mirroring is active, the specified destination port is used solely for reviewing, and does not participate in the normal data traffic. Figure 35: Port Mirroring dialog RM Web L2B Release 5.3 05/2012...

  • Page 111: Device Status

    Diagnostics 7.5 Device Status 7.5 Device Status The device status provides an overview of the overall condition of the device. Many process visualization systems record the device status for a device in order to present its condition in graphic form. The device displays its current status as “Error”...
  • Page 112 Diagnostics 7.5 Device Status Figure 36: Device State dialog (for PowerMICE)  In the “Monitoring” field, you select the events you want to monitor. The events which can be selected are: Name Meaning Power supply ... Monitor/ignore supply voltage(s). ACA removal Monitor/ignore the removal of the ACA.
  • Page 113 Diagnostics 7.5 Device Status Name Meaning Ring Redundancy Monitor/ignore ring redundancy (for HIPER-Ring only in Ring Manager mode). On delivery, ring redundancy is not monitored. If the device is a normal ring subscriber and not the ring manager, it reports the following: ...

  • Page 114: Signal Contact

    Diagnostics 7.6 Signal contact 7.6 Signal contact The signal contacts are used for  controlling external devices by manually setting the signal contacts,  monitoring the functions of the device,  reporting the device state of the device. 7.6.1 Manual Setting ...

  • Page 115: Function Monitoring

    Diagnostics 7.6 Signal contact 7.6.2 Function monitoring  Select the tab “Signal contact 1” or “Signal contact 2” (for devices with two signal contacts).  In the “Mode Signal contact” box, you select the “Monitoring correct operation” mode. In this mode, the signal contacts monitor the functions of the device, thus enabling remote diagnosis.

  • Page 116: Device Status

    Diagnostics 7.6 Signal contact Note: If the device is a normal ring member and not a ring manager, it doesn't report anything for the HIPER-Ring; for the MRP it only reports detected errors in the local configuration. 7.6.3 Device status ...

  • Page 117: Configuring Traps

    Diagnostics 7.6 Signal contact 7.6.4 Configuring Traps  Select generate Trap, if the device is to create a trap as soon as the position of a signal contact changes when function monitoring is active. Figure 37: Signal Contact Dialog RM Web L2B Release 5.3 05/2012...

  • Page 118: Alarms (Traps)

    Diagnostics 7.7 Alarms (Traps) 7.7 Alarms (Traps) This dialog allows you to determine which events trigger an alarm (trap) and where these alarms should be sent.  Select “Create”.  In the "IP Address“ column, enter the IP address of the management station to which the traps should be sent.
  • Page 119 Diagnostics 7.7 Alarms (Traps) Figure 38: Alarms Dialog RM Web L2B Release 5.3 05/2012...

  • Page 120: Report

    Diagnostics 7.8 Report 7.8 Report The following reports are available for the diagnostics:  file. The log file is an HTML file in which the device writes important device- internal events.  System information. The system information is an HTML file containing system-relevant data. RM Web L2B Release 5.3 05/2012...

  • Page 121: Self Test

    Diagnostics 7.9 Self Test 7.9 Self Test With this dialog you can:  activate/deactivate the RAM test for a cold start of the device. Deactivating the RAM test shortens the booting time for a cold start of the device. Default setting: activated. ...
  • Page 122 Diagnostics 7.9 Self Test RM Web L2B Release 5.3 05/2012...

  • Page 123: Advanced

    Advanced 8 Advanced The menu contains the dialogs, displays and tables for:  DHCP Relay Agent RM Web L2B Release 5.3 05/2012...

  • Page 124: Dhcp Relay Agent

    Advanced 8.1 DHCP Relay Agent 8.1 DHCP Relay Agent This dialog allows you to configure the DHCP relay agent.  Enter the DHCP server IP address. If one DHCP server is not available, you can enter up to 3 additional DHCP server IP addresses so that the device can change to another DHCP server.
  • Page 125  In the “Option 82 on” column in the table, you can switch this function on/ off for each port.  In the "Hirschmann Device" column, you check the ports to which a Hirschmann device is connected. Figure 40: DHCP Relay Agent dialog RM Web L2B Release 5.3 05/2012...

  • Page 126: Command Line

    Advanced 8.2 Command Line 8.2 Command Line This window enables you to access the Command Line Interface (CLI) using the Web interface. You will find detailed information on CLI in the “Command Line Interface” reference manual. RM Web L2B Release 5.3 05/2012...

  • Page 127: A Appendix

    Appendix A Appendix RM Web L2B Release 5.3 05/2012...

  • Page 128: Technical Data

    Appendix A.1 Technical Data A.1 Technical Data Switching Size of MAC address table 2,048 (incl. static filters) Max. number of statically configured multicast MAC address filters Max. number of statically configured unicast MAC address filters Max. length of over-long packets (from rel. 1,552 bytes 03.0.00) RM Web L2B...

  • Page 129: List Of Rfcs

    Appendix A.2 List of RFCs A.2 List of RFCs RFC 768 RFC 783 TFTP RFC 791 RFC 792 ICMP RFC 793 RFC 826 RFC 854 Telnet RFC 855 Telnet Option RFC 951 BOOTP RFC 1112 IGMPv1 RFC 1157 SNMPv1 RFC 1155 SMIv1 RFC 1212 Concise MIB Definitions...
  • Page 130 Appendix A.2 List of RFCs RFC 2574 User Based Security Model for SNMP v3 RFC 2575 View Based Access Control Model for SNMP RFC 2576 Coexistence between SNMP v1, v2 & v3 RFC 2578 SMI v2 RFC 2579 Textual Conventions for SMI v2 RFC 2580 Conformance statements for SMI v2 RFC 2613...

  • Page 131: Underlying Ieee Standards

    Appendix A.3 Underlying IEEE Standards A.3 Underlying IEEE Standards IEEE 802.1AB Topology Discovery (LLDP) IEEE 802.1af Power over Ethernet IEEE 802.1D Switching, GARP, GMRP, Spanning Tree (supported via IEEE 802.1Q-2005 implementation) IEEE 802.1D-1998, Media access control (MAC) bridges (includes IEEE 802.1p Priority IEEE 802.1D-2004 and Dynamic Multicast Filtering, GARP, GMRP) IEEE 802.1Q-2005...

  • Page 132: Underlying Iec Norms

    Appendix A.4 Underlying IEC Norms A.4 Underlying IEC Norms IEC 62439 High availability automation networks; especially: Chap. 5, MRP – Media Redundancy Protocol based on a ring topology RM Web L2B Release 5.3 05/2012...

  • Page 133: Copyright Of Integrated Software

    Appendix A.5 Copyright of Integrated Software A.5 Copyright of Integrated Software A.5.1 Bouncy Castle Crypto APIs (Java) The Legion Of The Bouncy Castle Copyright (c) 2000 - 2004 The Legion Of The Bouncy Castle (http://www.bouncycastle.org) Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies...

  • Page 134: Broadcom Corporation

    Appendix A.5 Copyright of Integrated Software A.5.2 Broadcom Corporation (c) Copyright 1999-2012 Broadcom Corporation. All Rights Reserved. RM Web L2B Release 5.3 05/2012...

  • Page 135: B Readers' Comments

    Readers’ Comments B Readers’ Comments What is your opinion of this manual? We are always striving to provide as comprehensive a description of our product as possible, as well as important information that will ensure trouble-free operation. Your comments and suggestions help us to further improve the quality of our documentation.
  • Page 136 Please fill out and return this page  as a fax to the number +49 (0)7127 14-1600 or  by post to Hirschmann Automation and Control GmbH Department 01RD-NT Stuttgarter Str. 45-51 72654 Neckartenzlingen RM Web L2B Release 5.3 05/2012...
