Summary of Contents for Hirschmann OWL3G
-

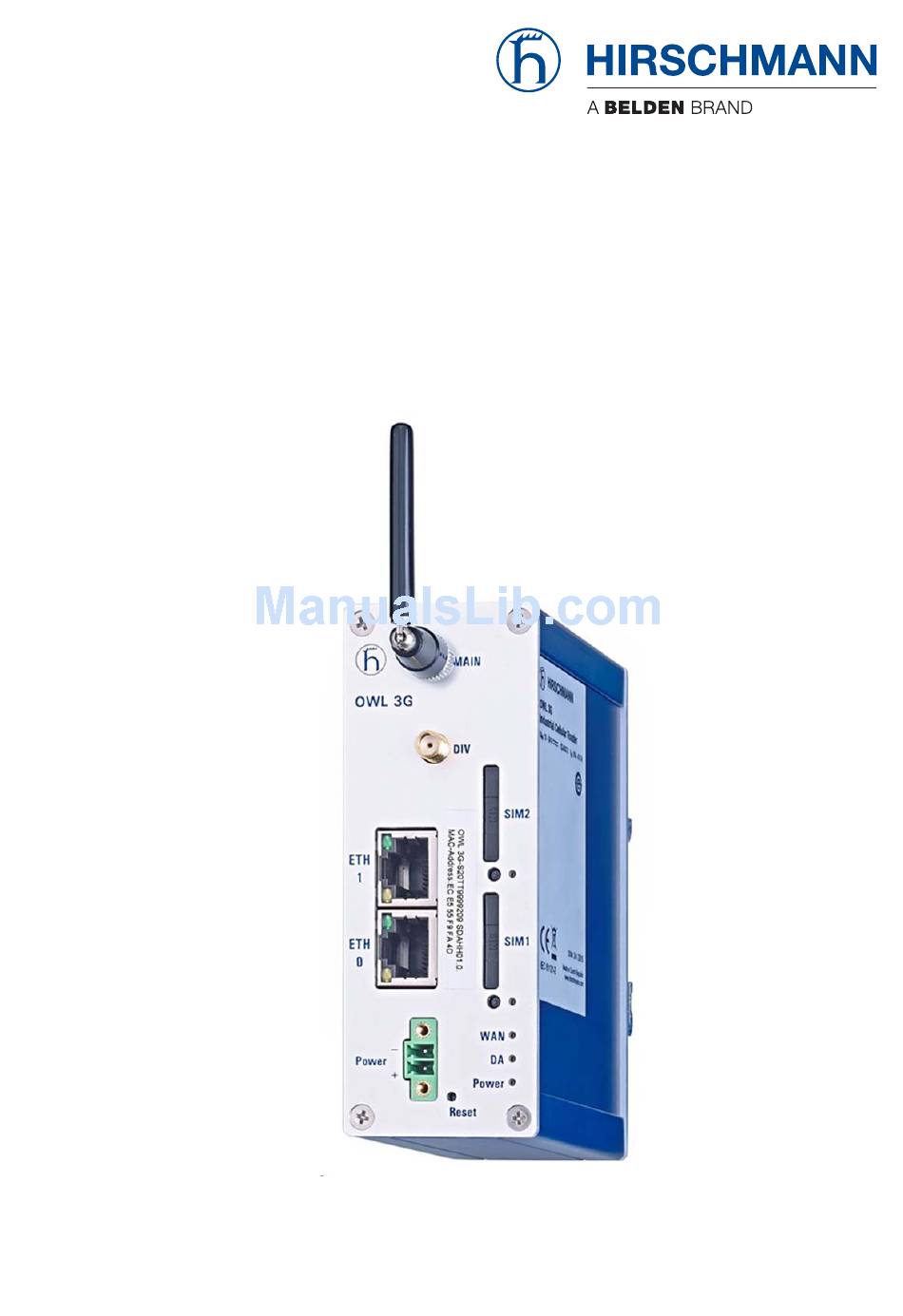

Page 1: User Manual
User Manual Installation OWL3G (Industrial Cellular Router) UM Installation OWL3G Technical Support Release 1.0 06/2015 https://hirschmann-support.belden.eu.com... - Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (http://www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
3.6.5 SIM Card Reader 3.6.6 Ethernet Ports ETH0 & ETH1 3.6.7 Reset First Use Connecting Components before the First Use Start Configuration 4.3.1 Configuration using a Web Browser Technical Parameters Basic parameters Technical Parameters of HSPA+ Module UM Installation OWL3G Release 1.0 06/2015... - Page 4 Contents Technical Parameters of the Processor Recommended literature Available Literature Possible problems Solutions Customers Support CE-marking E marking Further Support UM Installation OWL3G Release 1.0 06/2015...
-
Page 5: About This Guide
About this Guide About this Guide This document provides technical specifications for the Industrial Cellular Router and illustrates the hardware installation for a Hirschmann Industrial Cellular Router. It also helps the developers to validate their application design using the Industrial Cellular Router. -
Page 6: Legend
The designations used in this manual have the following meanings: List Work step Subheading Link Cross-reference with link Note: A note emphasizes an important fact or draws your attention to a dependency. ASCII representation in the graphical user interface Courier UM Installation OWL3G Release 1.0 06/2015... -
Page 7: Gpl License
About this Guide GPL License GPL License Source codes under the GPL license are available free of charge. Send an email request to: hac-support@belden.com UM Installation OWL3G Release 1.0 06/2015... -
Page 8: Safety Instruction
Never start an operation with damaged components. The device does not contain any service components. If the device is not functioning correctly, or if it is damaged, turn off the power supply and return the device to Hirschmann for inspection. WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. - Page 9 Intended usage Use the product only for the application cases described in the Hirschmann product information, including this manual. Operate the product according to the technical parameters. See chapter 6 for details. Connect components which are suitable for the requirements of the specific application case to the product.
-
Page 10: Installation Site Requirements
Housing The router cannot be opened. Never insert pointed objects (narrow screwdrivers, wires, etc.) into the device or into the connection terminals for electric conductors. Do not touch the connection terminals. UM Installation OWL3G Release 1.0 06/2015... - Page 11 SIM card slot. Also, the SIM card can fall out of the holder and end up in the router. If you open the router, then the warrantee is voided. UM Installation OWL3G Release 1.0 06/2015...
- Page 12 About this Guide Safety Instruction UM Installation OWL3G Release 1.0 06/2015...
-
Page 13: Router Description
Router Description 1 Router Description Hirschmann has designed the OWL router for wireless communication in mobile networks that make use of the following technologies: HSPA+ UMTS EDGE GPRS Due to the high speed data transfer, up to 14.4 Mbit/s (download) and up to 5.76 Mbit/s (upload), this router is an ideal wireless solution for connecting... - Page 14 You can exchange these configurations as necessary for example, using SMS. The HSPA+ router OWL can automatically upgrade a configuration and firmware from a server. This allows you to configure several routers at a time. UM Installation OWL3G Release 1.0 06/2015...
-
Page 15: Contents Of Package
2 Contents of Package The basic router set available for delivery includes the following items: router clip for the DIN rail loose power connector quick installation guide Figure 1: Contents of Package UM Installation OWL3G Release 1.0 06/2015... - Page 16 Contents of Package UM Installation OWL3G Release 1.0 06/2015...
-
Page 17: Router Design
Router Design 3 Router Design UM Installation OWL3G Release 1.0 06/2015... -
Page 18: Router Versions
3 V and 1.8 V SIM cards. The Ethernet ports and SIM card slots are located on the front panel of the router. This router is available in a metal casing. Figure 2: Front panel UM Installation OWL3G Release 1.0 06/2015... -
Page 19: Delivery Identification
Router Design 3.2 Delivery Identification 3.2 Delivery Identification Product Name Product Code Product Group OWL 3G OWL 3G-S20TT9999209SDAHH01.0 Industrial Cellular Router Table 1: Delivery identification Figure 3: Example of Router Label UM Installation OWL3G Release 1.0 06/2015... -
Page 20: Basic Dimensions Of Router Box
Router Design 3.3 Basic Dimensions of Router Box 3.3 Basic Dimensions of Router Figure 4: Basic Dimensions of Router Case UM Installation OWL3G Release 1.0 06/2015... -
Page 21: Mechanical Dimensions And Mounting Recommendations
To eliminate interference while using an external antenna except for the switch, it is necessary to fit a lightening conductor. Before mounting a router on sheet-metal, we recommend using an external antenna: Figure 5: Space around antennas UM Installation OWL3G Release 1.0 06/2015... - Page 22 All signals to the sensors must be twisted pairs. Figure 6: Cable routing Sufficient space must be left before individual connectors for handling of the cables: Figure 7: Space in front of connectors UM Installation OWL3G Release 1.0 06/2015...
- Page 23 Router Design 3.4 Mechanical Dimensions and Mounting Recommendations For the correct function of the router in the switch-board, use earth-bonding distribution frame for grounding of power supply of router, data cables and antenna. UM Installation OWL3G Release 1.0 06/2015...
-
Page 24: Removing From The Din Rail
After the holder clears the rail rotate the bottom part of the router out away from the DIN rail. Figure 9: Removing from the DIN rail UM Installation OWL3G Release 1.0 06/2015... -
Page 25: Description Of The Front Panel
SIM1 Holder for the first SIM card SIM2 Holder for the second SIM card Reset Returns the configuration in the router to the default settings. Table 2: Delivery identification Figure 10: Router Front Panel UM Installation OWL3G Release 1.0 06/2015... -
Page 26: Status Indication
SIM card 1 is active SIM2 SIM card 2 is active Table 3: Router Status Indication The WAN status is updated every 10 seconds. The WAN LED displays the current status. 3.6.2 Power Connector Panel socket 2-pin. UM Installation OWL3G Release 1.0 06/2015... -
Page 27: Grounding The Device (Functional Earth)
When you mount the device on a DIN rail, then the DIN rail provides the ground.The shield of a shielded twisted pair cable is connected to the housing and the minus pole of the power supply socket. UM Installation OWL3G Release 1.0 06/2015... -
Page 28: Antenna Connectors
Note: Be very careful when tightening the antenna. If you over tighten the antenna, then you will twist the antenna connector off of the circuit board. Figure 13: Connecting of the Antenna The diversity antenna improves radio features of the router at a low signal strength. UM Installation OWL3G Release 1.0 06/2015... -
Page 29: Sim Card Reader
Press the small button under the SIM slot to eject the SIM Card holder. Figure 14: Example of an Ejected SIM Card Holder 3.6.6 Ethernet Ports ETH0 & ETH1 Panel socket RJ45. UM Installation OWL3G Release 1.0 06/2015... - Page 30 Connection of Power Connector Figure 15: Ethernet Connector Note: ETH0 and ETH1 ports are not POE (Power Over Ethernet) compatible. Ethernet cable plugged into the RJ45 connector is labeled as ETH0 or ETH1 (see figure below). UM Installation OWL3G Release 1.0 06/2015...
-
Page 31: Reset
For detailed information about resetting the router refer to the UM-Configuration manual. Resetting the router returns the configuration to the default state. Use a narrow screwdriver for pressing the "Reset" button located on the front panel. UM Installation OWL3G Release 1.0 06/2015... - Page 32 Reboot Turn off and then turn on router Disconnect and connect the power, Press the Reboot button in the web configuration Reset Restore default configuration and reboot Press Reset button the router Table 6: Description of Reset and Restart Router UM Installation OWL3G Release 1.0 06/2015...
-
Page 33: First Use
First Use 4 First Use UM Installation OWL3G Release 1.0 06/2015... -
Page 34: Connecting Components Before The First Use
1 SIM card and the power supply. If the antenna is not connected, the router can be damaged. Note: Be very careful when tightening the antenna. If you tighten the antenna beyond firm, then you will twist the antenna connector off of the circuit board. UM Installation OWL3G Release 1.0 06/2015... - Page 35 First Use 4.1 Connecting Components before the First Use Figure 18: Router Connection UM Installation OWL3G Release 1.0 06/2015...
-
Page 36: Start
The power consumption during receiving is 2.3 W. The peak power consumption during data sending is 5.5 W. For correct operation, it is necessary that the power source supplies a peak current of 0.9 A. UM Installation OWL3G Release 1.0 06/2015... -
Page 37: Configuration
The default IP address of the router is 192.168.1.1 netmask 255.255.255.0. The default settings allow only the user “admin” with the default password “private” to configure the router. Note: Use the HTTPS protocol for secure communication. UM Installation OWL3G Release 1.0 06/2015... - Page 38 First Use 4.3 Configuration UM Installation OWL3G Release 1.0 06/2015...
-
Page 39: Technical Parameters
Technical Parameters 5 Technical Parameters UM Installation OWL3G Release 1.0 06/2015... -
Page 40: Basic Parameters
Dimensions 42 x 87 x 113 mm (DIN 35 mm) Weight 280 g Antenna connectors 2x SMA - 50 Ohm Use interfaces 2x ETH Ethernet (10/100 Mbit/s) Table 7: Technical Parameters of the Router UM Installation OWL3G Release 1.0 06/2015... -
Page 41: Technical Parameters Of Hspa+ Module
(DL) / 85.6 kbps (UL)Multi slot class 12, CS 1 to 4, 3GPP rel. 99/4 standard Support channels GSM/GPRS/EDGE: Quad band, 850/900/1800/1900 MHz UMTS/HSDPA/HSUPA/HSPA+: Five band, 800/850/900/1900/2100 MHz Table 8: Technical Parameters of the Module Depending on the capabilities of the operator. UM Installation OWL3G Release 1.0 06/2015... - Page 42 5.3 Technical Parameters of the Processor 32b ARM microprocessor Memory 512 Mb DDR SDRAM 128 Mb FLASH 1 Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100 Mbit/s USB 2.0 interface Table 9: Technical Parameters of Processor UM Installation OWL3G Release 1.0 06/2015...
-
Page 43: Recommended Literature
Recommended literature 6 Recommended literature UM Installation OWL3G Release 1.0 06/2015... - Page 44 Recommended literature 6.1 Available Literature 6.1 Available Literature Quick Installation Guide UM-Configuration Manual UM Installation OWL3G Release 1.0 06/2015...
-
Page 45: Possible Problems
Possible problems 7 Possible problems UM Installation OWL3G Release 1.0 06/2015... - Page 46 10 Mb/s communication rate for the network cards connect the computer to the router through a switch start the computer only after the router has completed the boot process UM Installation OWL3G Release 1.0 06/2015...
- Page 47 – NAT is possible to verify by the help of the ping on address of your server with static IP address and by the help of the router address verify and address in ping. UM Installation OWL3G Release 1.0 06/2015...
- Page 48 SMS message, the router will be in this mode up to next restart. This behavior is the same for all the control SMS messages. UM Installation OWL3G Release 1.0 06/2015...
-
Page 49: Customers Support
– During the cleaning of the router, do not use aggressive chemicals, solvents and abrasive cleaners! Router fits values of coefficient SAR defined by association ICNIRP and values of "About protection of health before non-ionized radiation". UM Installation OWL3G Release 1.0 06/2015... - Page 50 Customers Support 9.1 CE-marking 9.1 CE-marking Hirschmann hereby declares that the labeled devices comply with the regulations contained in the following European directives: 2011/65/EU (RoHS) Directive of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
- Page 51 9.2 E marking The labeled devices comply with the regulations contained in the following European directive:Rule No. 10 of the Economic Commission for Europe (ECE): Devices with an approval are labeled with the E type-approval mark. UM Installation OWL3G Release 1.0 06/2015...
- Page 52 Customers Support 9.2 E marking UM Installation OWL3G Release 1.0 06/2015...
- Page 53 Further Support A Further Support Technical Questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com...
- Page 54 Further Support With the Hirschmann Competence Center, you have decided against making any compromises. Our client-customized package leaves you free to choose the service components you want to use. Internet: http://www.hicomcenter.com UM Installation OWL3G Release 1.0 06/2015...
