Page 1: User Manual

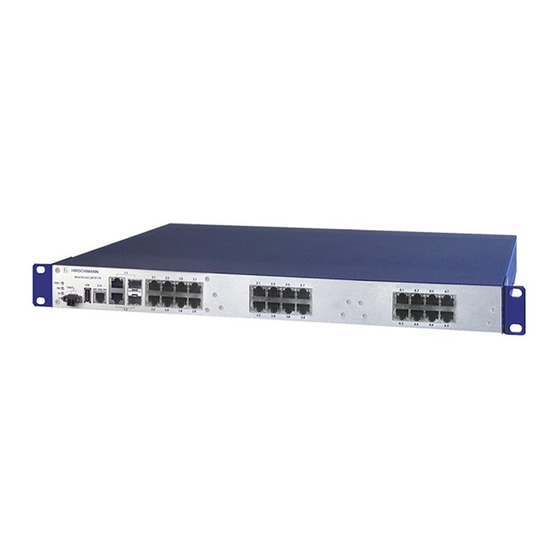

User Manual Installation Industrial ETHERNET Workgroup Switch MACH104 Family Full Gigabit MACH104-20TX-F FAULT V.24 FAULT MACH104-20TX-F MACH104-20TX-FR FAULT V.24 FAULT MACH104-20TX-FR MACH104-20TX-F-4PoE FAULT V.24 FAULT MACH104-20TX-F-4PoE MACH104 Technical Support Release 09/09 HAC-Support@belden.com... - Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann-ac.de). Printed in Germany Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Content Safety instructions About this manual Legend Device description Description of the device variants 1.1.1 MACH104 devices with 24 GB ports 1.1.2 MACH104 devices with 24 GB ports and redundant voltage supply 1.1.3 MACH104 devices with 24 GB ports, 4 of which are PoE ports 1.1.4 PoE ports 1.1.5 Combo ports... -
Page 4: Safety Instructions
Safety instructions This documentation contains instructions which must be observed to ensure your own personal safety and to avoid damage to devices and machinery. Certified usage Please observe the following: The device may only be employed for the purposes described in the catalog and technical description, and only in conjunction with external devices and components recommended or approved by the manufacturer. - Page 5 Beware of possible short circuits when connecting a cable section with conductive shielding braiding. Housing Only technicians authorized by Hirschmann are permitted to open the housing. The device is grounded via the voltage supply socket. Make sure that the electrical installation meets local or nationally ap- plicable safety regulations.
-
Page 6: General Safety Instructions
trained or directed in the care and use of appropriate safety equipment in accordance with the current standards of safety engineering; trained in providing first aid. General safety instructions Electricity is used to operate this equipment. Comply in every detail with the safety requirements specified in the operating instructions regarding the voltages to apply (refer to page 4). - Page 7 In accordance with the above-named EU directives, the EU conformity declaration will be at the disposal of the relevant authorities at the follow- ing address: Hirschmann Automation and Control GmbH Stuttgarter Strasse 45-51 72654 Neckartenzlingen Tel.: +49 1805 141538 The product can be used in living areas (living area, place of business, small business) and in industrial areas.
-
Page 8: About This Manual
About this manual The following manuals are included as PDF files on the enclosed CD ROM: User manual „Installation“ User manual “Basic configuration” User manual “Redundancy configuration” Reference manual “Web-based Interface” and Reference manual “Command Line Interface” The Network Management Software HiVision/Industrial HiVision provides you with additional options for smooth configuration and monitoring: Configuration of multiple devices simultaneously. -
Page 9: Device Description
You can connect terminal de- vices and other infrastructure components via twisted pair cables, multi- mode F/O and single-mode F/O. The twisted pair ports support autocrossing, autonegotiation and autopolarity. MACH104-20TX-F FAULT V.24 FAULT The MACH104 devices provide you with a range of switch variants. -
Page 10: Description Of The Device Variants
The pin assignment is identical to MDI-X. When the autonegotiation function is enabled, these ports also support autocrossing. In the MACH104-20TX-F-4PoE devices, ports 1 to 4 also support Power over Ethernet (PoE). Voltage range: 100 - 240 V AC Temperature range: 0°C to +50 °C... - Page 11 Autocrossing (device may be connected with a crossed-over or an un- crossed cable) Specific functions of fiber optic interface Link Down monitoring The MACH104-20TX-F, MACH104-20TX-FR and MACH104-20TX-F-4PoE devices from the Industrial ETHERNET family MACH104 are Switches with fixed configurations. MACH104...
-
Page 12: Mach104 Devices With 24 Gb Ports
18 20 22 24 Figure 1: Overview of interfaces and display and control elements in the MACH104-20TX-F 1 - MACH104-20TX-F device 2 - LED display elements 3 - Signal contact 4 - USB interface 5 - V.24 connection for external management... -
Page 13: Mach104 Devices With 24 Gb Ports And Redundant Voltage Supply
1.1.2 MACH104 devices with 24 GB ports and redundant voltage supply MACH104-20TX-FR 4 Gigabit ETHERNET combo ports 20 Gigabit ETHERNET ports The power supply is connected redundantly. 9 11 13 15 17 19 21 23 MACH104-20TX-FR FAULT V.24 FAULT 10 12 14 16 18 20 22 24... -
Page 14: Mach104 Devices With 24 Gb Ports, 4 Of Which Are Poe Ports
18 20 22 24 Figure 3: Overview of interfaces and display and control elements in the MACH104-20TX-F-4PoE 1 - MACH104-20TX-F-4PoE device 2 - LED display elements 3 - Signal contact 4 - USB interface 5 - V.24 connection for external management... -
Page 15: Poe Ports
1.1.4 PoE ports The MACH104-20TX-F-4PoE device variants support Power over Ethernet (PoE) in accordance with IEEE 802.3af. They allow the connection and remote supply of, for example, IP telephones (Voice over IP), webcams, sensors, printer servers and WLAN access points via 10BASE-T/100BASE-TX/1000BASE-T. - Page 16 23 - 80 km RX: 1590 nm Singlemode M-SFP-BIDI Type B LH/LC EEC TX: 1590 nm Singlemode 23 - 80 km RX: 1490 nm Singlemode Table 1: SFP Modules Note: Only use Hirschmann SFP modules (see page 35 „Accessories“). MACH104 Release 09/09...
-
Page 17: Assembly And Start-Up
Assembly and start-up The devices have been developed for practical application in a harsh indus- trial environment. The installation process is correspondingly simple. On delivery, the device is ready for operation. The following procedure has been proven to be successful for the assembly of the device: Unpacking and checking Installing the SFP modules (optional) -
Page 18: Signal Contact „Fault
2 - Ports 7 + 8: Two SFP slots that are used as alternatives to the RJ45 ports Push the SFP module with the lock closed into the socket until it latches audibly in place. Note: Only use Hirschmann SFP modules (see page 35 „Accessories“). Figure 5: Installing an SFP module 2.1.3... - Page 19 The failure of at least one of the two voltage supplies (voltage supply 1 or 2 is below the threshold value). A continuous malfunction in the device (internal supply voltage). The defective link status of at least one port. The report of the link status can be masked by the Management for each port.
-
Page 20: Dimension Drawings
2.1.4 Dimension drawings 462,6 0.13 18.21 0.13 inch 19,3 19,3 0.76 17.48 0.76 2.1.5 Installing the device and grounding The device can be mounted on a flat surface, in a 19" standard switch cabinet, or on the wall. Consider the following criteria when selecting the location for mounting your device: The installation location should be close to a power outlet. - Page 21 The LED display elements should be clearly and easily visible. Make sure that the TP cable is far enough away from power cables and other sources of possible electrical interference. Make sure that the device is connected to a separate power source with a ground connection and a main voltage in line with the technical data, and that the device is supplied with power via a separate isolator or power switch.
- Page 22 1 - MACH104 device 2 - Sliding/mounting rail 3 - 19" cabinet On delivery, two brackets are attached to the sides of the device (see figure below). MACH104-20TX-F FAULT V.24 FAULT Figure 9: Mounting the MACH104 in the 19" cabinet Fasten the device by screwing the brackets to the switch cabinet.
-
Page 23: Supply Voltage
Attach two additional brackets to the device (see on page 35 „Acces- sories“, not included in the delivery) as shown in the following figure (see fig. 10). Fasten the device by screwing the brackets to the wall. Warning When installing the device, make sure the ventilation slots re- main unobstructed, as otherwise the device can overheat and be damaged. - Page 24 MACH104-20TX-F Figure 11: Connections of the MACH104-20TX-F on the back of the device 1 - Voltage supply 100 - 240 V AC 2 - MACH104-20TX-F device MACH104-20TX-FR The supply voltage can be connected redundantly. Both inputs are un- coupled. There is no distributed load. With redundant supply, the standard voltage supply alone supplies the device.
-
Page 25: Startup Procedure
These connections are RJ45 sockets. 10/100/1000 Mbit/s TP ports enable the connection of terminal devices or independent network segments according to the IEEE 802.3 10BASE-T/ 100BASE-TX/1000BASE-T standard. The MACH104-20TX-F-4PoE devices also allow IEEE 802.3af (Power over ETHERNET on data lines). These ports support: Autonegotiation... -
Page 26: Display Elements
After the operating voltage is set up, the software starts and initializes itself. Afterwards, the device performs a self-test. During this process, various LEDs light up. The process takes around 15 seconds. 9 11 13 15 17 19 21 23 MACH104-20TX-F FAULT V.24 FAULT 10 12 14 16 18 20 22 24... - Page 27 These LEDs provide information about conditions which affect the opera- tion of the whole device. P - Power (green/yellow LED) Glowing green MACH104-20TX-F, MACH104-20TX-F-4PoE: Supply voltage is on. MACH104-20TX-FR: Supply voltages 1 and 2 are on. Glowing yellow MACH104-20TX-FR: Supply voltage 1 or 2 is on.
-
Page 28: Basic Set-Up
Port state These LEDs display port-related information. LS - link status (one green LED per port) Not glowing No valid connection. Glowing green Valid connection. Flashing green (1 time a period) Port is switched to stand-by. Flashing green (3 times a peri- Port is switched off. -
Page 29: Usb Interface
Optical 100 Mbit/s ports: 100 Mbit/s full duplex All other ports: autonegotiation Redundancy manager switched off (DIP switch RM and Stand-by: ON) Stand-by coupling switched off (DIP switch RM and Stand-by: ON) Port 3 = control port, port 4 = coupling port for redundant ring coupling Rapid Spanning Tree: on USB interface The USB socket has an interface for the local connection of an AutoCon-... -
Page 30: Disassembly
Disassembly Disassembling the device To detach the device from the switch cabinet or the wall, remove the screws from the brackets on the device. MACH104-20TX-F FAULT V.24 FAULT Figure 16: Disassembling the device Disassembling the SFP modules Pull the SFP module out of the socket by means of the opened lock. -
Page 31: Technical Data
Technical data General technical data Dimensions MACH104-... 448 mm x 44 mm x 345 mm (without brackets) W x H x D Weight MACH104-20TX-F 4.2 kg MACH104-20TX-FR 4.4 kg MACH104-20TX-F-4PoE 4.6 kg Power supply Rated voltage 100 - 240 VAC... - Page 32 Network range TP port Length of a twisted pair segment max. 100 m / 300 ft (cat5e cable with 1000BASE-T) Table 4: TP port 10BASE-T / 100BASE-TX / 1000BASE-T Product Wave- Fiber System at- Example Fiber data code length tenuation for fiber M-FAST- optic line...
- Page 33 MACH104-20TX-F 35 W 119 Btu (IT)/h MACH104-20TX-FR 35 W 119 Btu (IT)/h MACH104-20TX-F-4PoE, when 4 x 110 W 170 Btu (IT)/h Class0-PD (powered device) connected Table 9: Power consumption/power output Name Operating tempera- Order number ture...
- Page 34 Name Operating tempera- Order number ture (chassis) MACH104-20TX-F-4PoE 0 °C to +50 °C 942 003-201 Gigabit ETHERNET SFP Transceiver M-SFP-SX/LC 0 °C to +60 °C 943 014-001 M-SFP-SX / LC EEC -40 °C to +85 °C 943 896-001 M-SFP-LX/LC 0 °C to +60 °C...
-
Page 35: Scope Of Delivery
Interfaces MACH104-20TX-F - V.24 port: external management MACH104-20TX-FR - 1 terminal block, 2-pin: each 1 x signal contact, max. 1 A, 24 MACH104-20TX-F-4PoE - USB: ACA 21-USB - 4 Gigabit ETHERNET combo ports (alternatively 100/1000 Mbit/s optical SFP slot or 1000/100/10 Mbit/s RJ45 socket) - Page 36 Certifications The following table shows the status of the certification of the devices. Standard cUL 508 / CSA C22.2 No.142 pending cUL 60950-1 pending Table 12: Certifications - for the current status, visit www.hirschmann.com MACH104 Release 09/09...
-
Page 37: A Further Support
Further support Technical questions and training courses In the event of technical queries, please contact your local Hirschmann distributor or Hirschmann office. You can find the addresses of our distributors on the Internet: www.hirschmann-ac.com. Our support line is also at your disposal: Tel.
