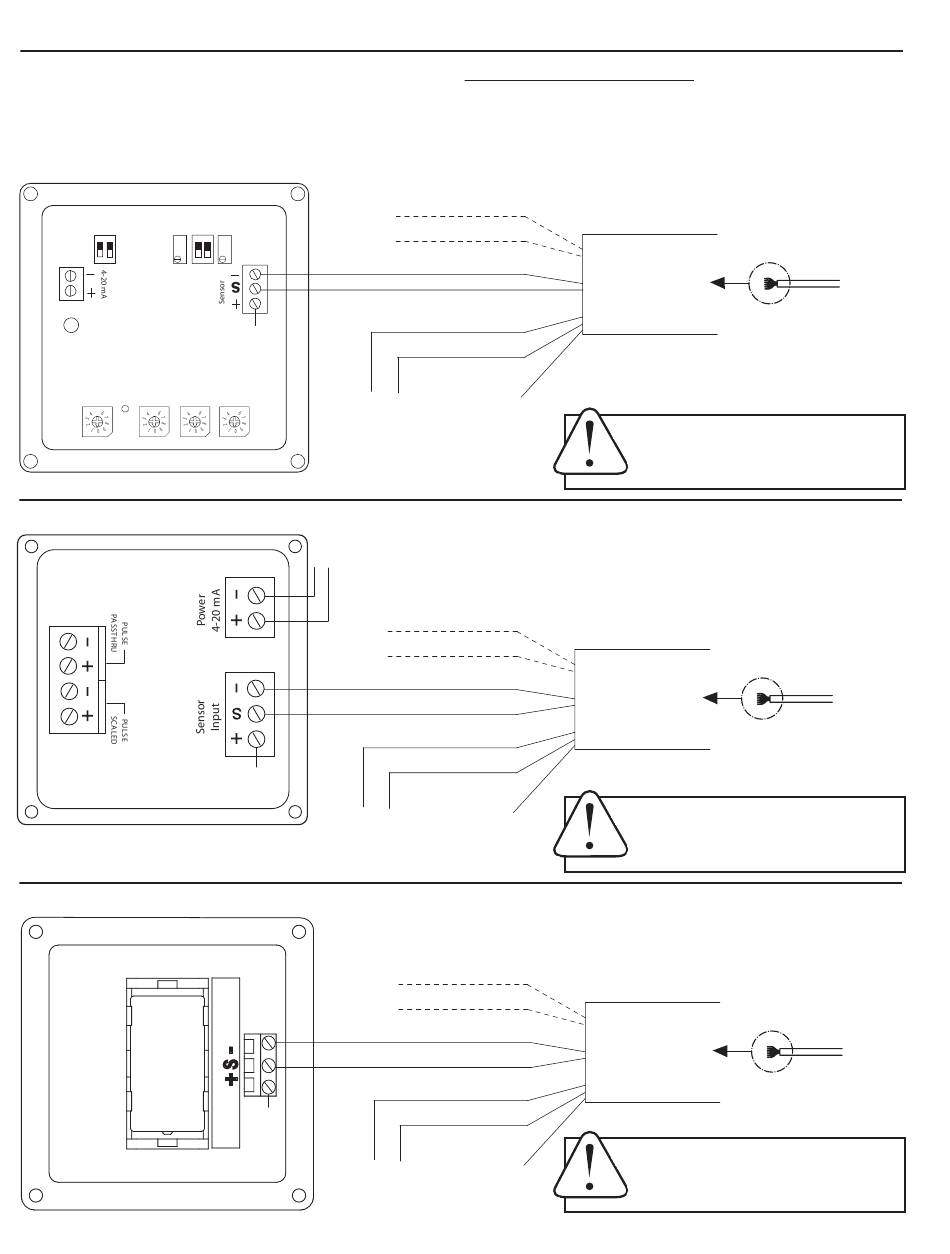

CONNECTIONS DIAGRAMS (WMX101)
The WMX101 requires a power source of 8 to 32 Vdc at 30
mA max (see WARNING). The WMX101 power cable also
serves as a pulse output if needed for remote reading, data
logging, signal conversion, or telemetry.
AO55/WMX101
Power
Frequency
5 5 5
AO55W Pulse-to-Analog Converter
FT420/WMX101
FT420W Remote Rate/Total Display
DL75 or DL76/WMX101
Battery
DL75W or DL76W Data Logger
{
Blue
Do
Not
Orange
Use
White (-)
Green (+)
Black
Not
Used
Red
(-) +)
(
5
Power Supply
8-32 Vdc
at 30 mA max
(see WARNING)
External Power Input Required - 12-32 Vdc
{
Blue
Do
Not
Orange
Use
White (-)
Green (+)
Black
Red
Not
Used
(-) +)
(
Power Supply
8-32 Vdc
at 30 mA max
(see WARNING)
{
Blue
Do
Not
Orange
Use
White (-)
Green (+)
Black
Not
Red
Used
(-) +)
(
Power Supply
8-32 Vdc
at 30 mA max
(see WARNING)
WMX101 Cable Color Codes
Orange and Blue: Serial Output (Do Not Use)
Green (+) and White (-): Pulse Output, 30 Vdc max, 10 mA max
Red (+) and Black (-): External Power, 8-32 Vdc at 30 mA max
Drain: Connect to earth ground
WMX101 Cable
Shielded
Direct Burial Cable
22 AWG Stranded
Drain Wire
WARNING: Using an unregulated power
supply >18 Vdc may damage the meter
due to AC line input voltage fluctuation.
WMX101 Cable
Shielded
Direct Burial Cable
22 AWG Stranded
WARNING: Using an unregulated power
Drain Wire
supply >18 Vdc may damage the meter
due to AC line input voltage fluctuation.
WMX101 Cable
Shielded
Direct Burial Cable
22 AWG Stranded
WARNING: Using an unregulated power
supply >18 Vdc may damage the meter
Drain Wire
due to AC line input voltage fluctuation.
(see WARNING)
WMX101
WMX101
WMX101
