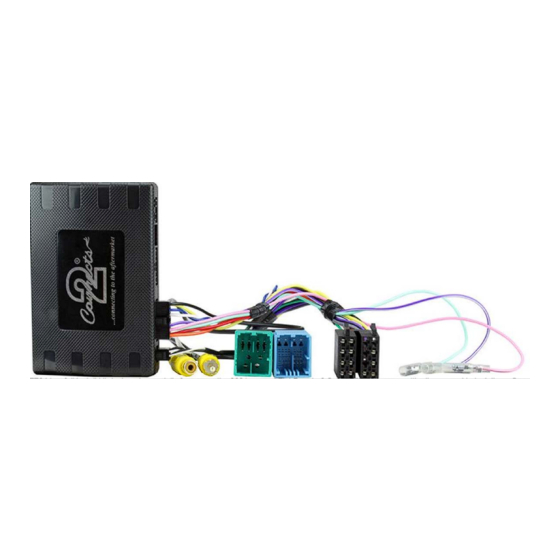

43uft03 Infodapter
for Fiat vehicles
.
.
APPLICATION
Note: Application data is subject to change at any time
Fiat Ducato (8 Series)
2021 - UP
FEATURES
• Retains steering wheel control & phone button functionality
• Retains vehicle settings and generates setting menus
• Provides outputs for Park Brake, Reverse Gear and Speed Pulse
DISCLAIMER
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Advertisement
Table of Contents
Related Manuals for Connects2 43uft03
Summary of Contents for Connects2 43uft03
- Page 1 43uft03 Infodapter for Fiat vehicles APPLICATION Note: Application data is subject to change at any time Fiat Ducato (8 Series) 2021 - UP FEATURES • Retains steering wheel control & phone button functionality • Retains vehicle settings and generates setting menus •...
-
Page 2: Product Information
PRODUCT INFORMATION The interface provided helps retain steering wheel control presets and phone button functionality, as well as retaining vital features and functions which include OEM vehicle settings. The lead features plug-and-play connectors for an easier installation process. WIRING KEY IN ISO CONNECTOR Yellow Permanent 12V... -
Page 3: Steering Wheel Controls
STEERING WHEEL CONTROLS EXAMPLE STEERING WHEEL CONTROL DIAGRAM The following diagram, though based on careful research, is an example only. Individual steering wheel control configurations may differ. The Infodapter will retain several of the vehicle’s original steering wheel control functions including moving up and down between tracks, adjusting the volume and picking up or hanging up calls. -
Page 4: Wiring Diagram
WIRING DIAGRAM FM/Blue Phantom Power Connections Fakra Antenna Connection Connect to aftermarket stereo Connect to OEM Antenna connector from vehicle Flying Wires 12-Way/32-Way Connector Pink - Speed Pulse Connect to relevant connectors from vehicle Green - Park Brake ISO Connector Purple/White - Reverse Gear Connect to aftermarket stereo Aftermarket Camera RCA Connector... - Page 5 INSTALLATION GUIDE - WIRING See Wiring Diagram on Pg.4 for more information Before installing the interface, the factory stereo must be removed and disconnected. To do this, please consult the vehicle owner’s manual/handbook or contact a fitting professional. For universal patch leads, prepare the wiring loops in accordance with the instruction manual supplied before installation. 1.
-
Page 6: Vehicle Settings
INFODAPTER MENU Once the CTKFT03 has been installed into the vehicle successfully, simply hold the ‘Speech’ button (Fig.8) on the steering wheel to access the ‘Configuration Menu’. Note: In the case that the vehicle does not feature phone buttons, the ‘Source’ button will act as Infodapter enter/exit button. -
Page 7: Picture Settings
INFODAPTER MENU SCREEN SIZE/POSITION Infodapter Settings Allows the user to setup the Infodapter display screen to the exact size of the aftermarket head unit being fitted. Screen Size & Position Picture Settings PICTURE SETTINGS Preferences Allows the user to adjust the Brightness, Contrast and Installer Menu Saturation levels of the Infodapter menus/parking <... - Page 8 NOTES...
