Package Contents - Wayne-Dalton 8000 Series Installation Instructions And Owner's Manual

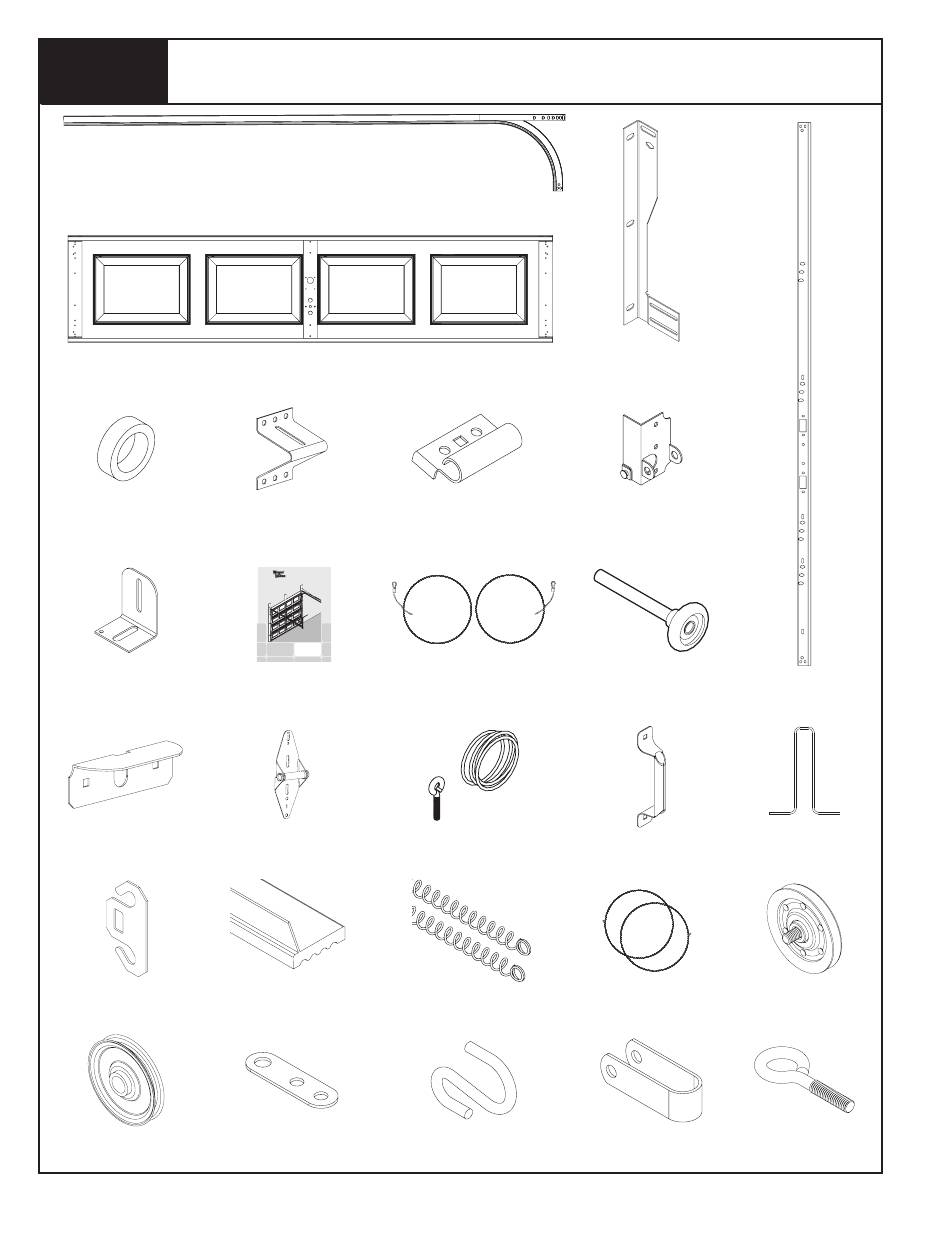

Package contents

(2) hORIzONTAL TRACkS Rh/Lh
DOOR SECTIONS (AS REqUIRED)
(2) ROLLER SPACERS
fULLY ADjUSTAbLE jAMb
bRACkETS (AS REqUIRED)
(2) STEP PLATES #1, #2, #3, & #4 hINGES
(2) hOOk PLATES
(If INCLUDED)
(2) REAR ShEAVES
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
(2) TOP bRACkET
bASES
8000 Series, Model 46
Extension Spring
Installation Instructions and Owner's Manual
Portland Source Plant
IMPORTANT NOTICE!
Read these instructions carefully before
attempting installation. If in question about
any of the procedures, do not perform the
work. Instead, have a qualifi ed door agency
do the installation or repairs.
© Copyright 2002-2006 Wayne-Dalton Corp. Part No. 300663 Rev2 08/31/2006
MANUAL (2) COUNTERbALANCE
#6 SCREW EYE AND PULL
(AS REqUIRED)
WEAThER SEAL &
NAILS (If INCLUDED)
3 hOLE CLIPS
(AS REqUIRED)
NoTe: DEPENDING ON ThE DOOR MODEL, SOME PARTS
LISTED WILL NOT bE SUPPLIED If NOT NECESSARY. REAR
SUPPORTS MAY OR MAY NOT bE INCLUDED WITh YOUR DOOR.
(2) fULLY ADjUSTAbLE
Rh/Lh fLAGANGLES
(2) TOP bRACkET
SLIDES bOTTOM bRACkETS
CAbLES
ROPE (If INCLUDED)
(2) ExTENSION (2) SNUbbER CAbLES
SPRINGS
S-hOOkS
(AS REqUIRED)
RIGhT AND LEfT
ROLLERS (2) VERTICAL
(AS REqUIRED)
Rh/Lh TRACkS
(2) LIfT hANDLES
& SPACERS (AS REqUIRED)
(2) fRONT ShEAVES
(2) ShEAVE fORkS 5/16"-18 x 3-3/4"EYE
hOOkS (AS REqUIRED)
U-bAR
