Uplift Desk MON021 User Manual

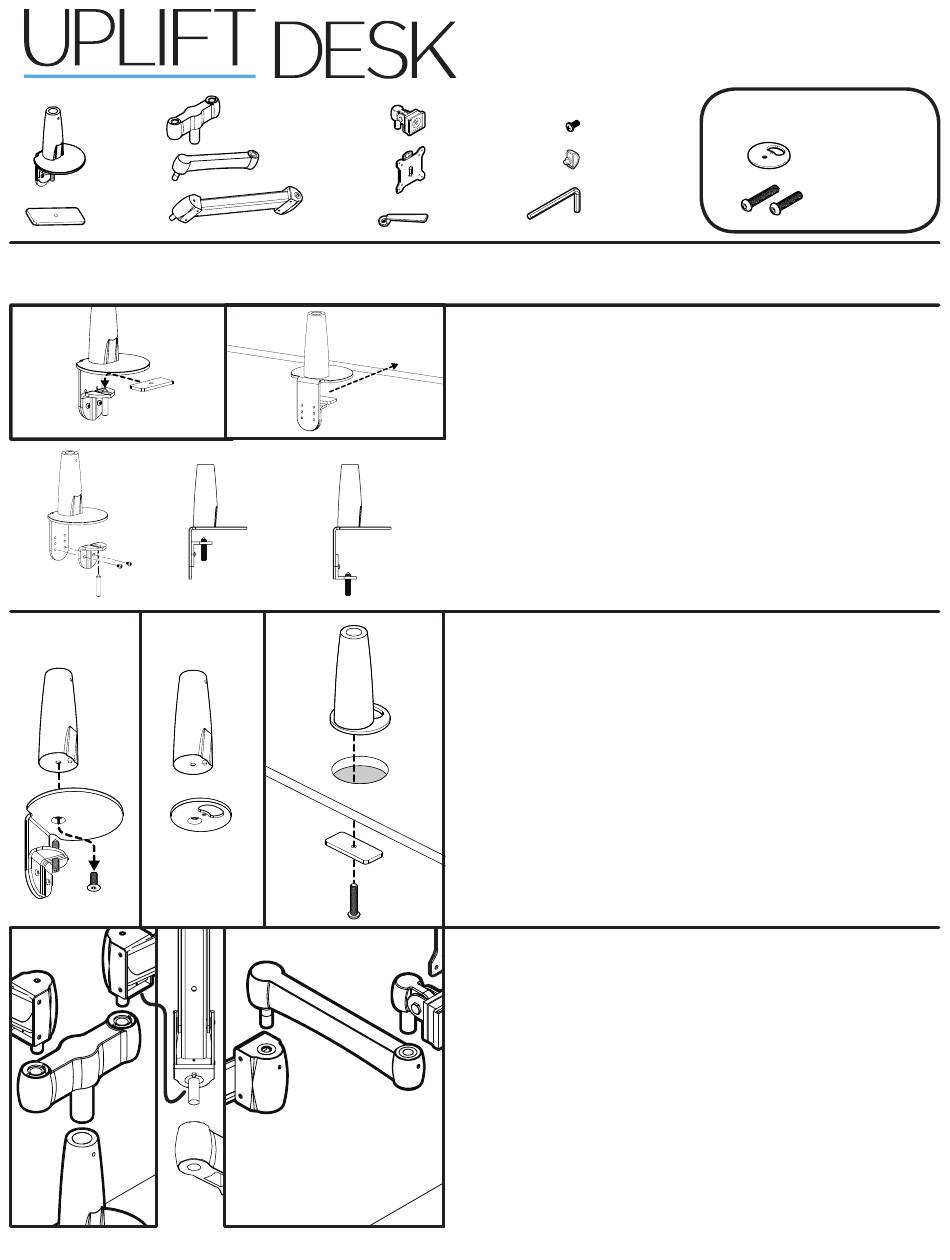

Package Contents

Base
Bottom
plate
Note: There are two ways to attach to your desktop: Clamp and Bolt-thru assembly. Determine if you need to attach it
around the back side of your desk (follow Step 1.1) or through a hole from .4'' to 3.15'' in diameter (follow Step 1.2).
fig. 1
fig. 4
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
Dual arm adapter
Extension arm
(qty 2)
Gas arm
(qty 2)
fig. 2 fig. 3
min
thickness thickness
.75''
®
Range Dual Monitor Arm
MON021
Monitor joint
(qty 2)
VESA mount
(qty 2)
13mm Flat
wrench

Step 1.1 - Clamp

Rest the Bottom plate onto the Base's bolt. Fit the Base around
the back of the desk and tighten the Bolt & Bottom plate into
place using the 6.5 mm Allen wrench.
Note: If the Clamp does not fit on your desk, increase or decrease
the span of the clamp by removing the Bottom clamp and Bolt,
and repositioning them. First, unscrew the two screws holding the
Bottom clamp with the 4mm Allen wrench (see fig. 1).
For thin desks (.75'' minimum), reassemble the clamp as shown in
Figure 2. For thick desks (3.75'' maximum), reassemble the clamp
as shown in Figure 3.
max
Once the Clamp has been set and fits your desktop, continue on
to Step 2 below.
3.5''

Step 1.2 - Bolt-thru

To mount your monitor arm through a hole in your desktop (min .4'',
max 3.15'' in diameter), first loosen the big screw inside the clamp
with the 6mm Allen wrench. Note: screw may be tight. Once re-
moved, separate the clamp assembly from the Base.
Place the Base onto the Bolt-thru top as shown. The Base's small
peg should fit into the small hole of the Bolt-thru top. Rotate until
the large hole lines up with the notch at the front of the base.
Place assembly completely over the hole facing the front of desk.
Select a Long bolt: the 50mm Bolt fits desks .6'' to 1.38'' thick, and
the 70mm Bolt fits desks 1.38'' to 2.13'' thick. Insert the Long bolt
thru the Bottom plate. Note: Bottom Plate must be wide enough
to straddle the hole's diameter. Thread the bolt into the Base as-
sembly by hand and tighten using the 6.5mm Allen wrench.

Step 2

Insert the Dual arm adapter into the Base, and follow with the
Gas arms into the Dual arm adapter. Note: The stopping-pin un-
der the Gas arm restricts rotation to 180°. If you want a full 360°
rotation, remove this pin with the 2mm Allen wrench. (see fig. 4)
Insert an Extension arm into each Gas arm, and finish with a
Monitor joint into each Extension Arm.
Parts for Bolt-thru assembly
Monitor screw
(qty 8)
Wire clips
(qty 4)
Allen wrenches
(set of five:
2mm, 3mm, 4mm,
6mm, and 6.5mm)
Bolt-thru top
Long bolts
(two sizes included:
50mm & 70mm)
AI-MON021-1.1
