Uplift Desk MON021 Manual

Range Dual Monitor Arm
SKU: MON021

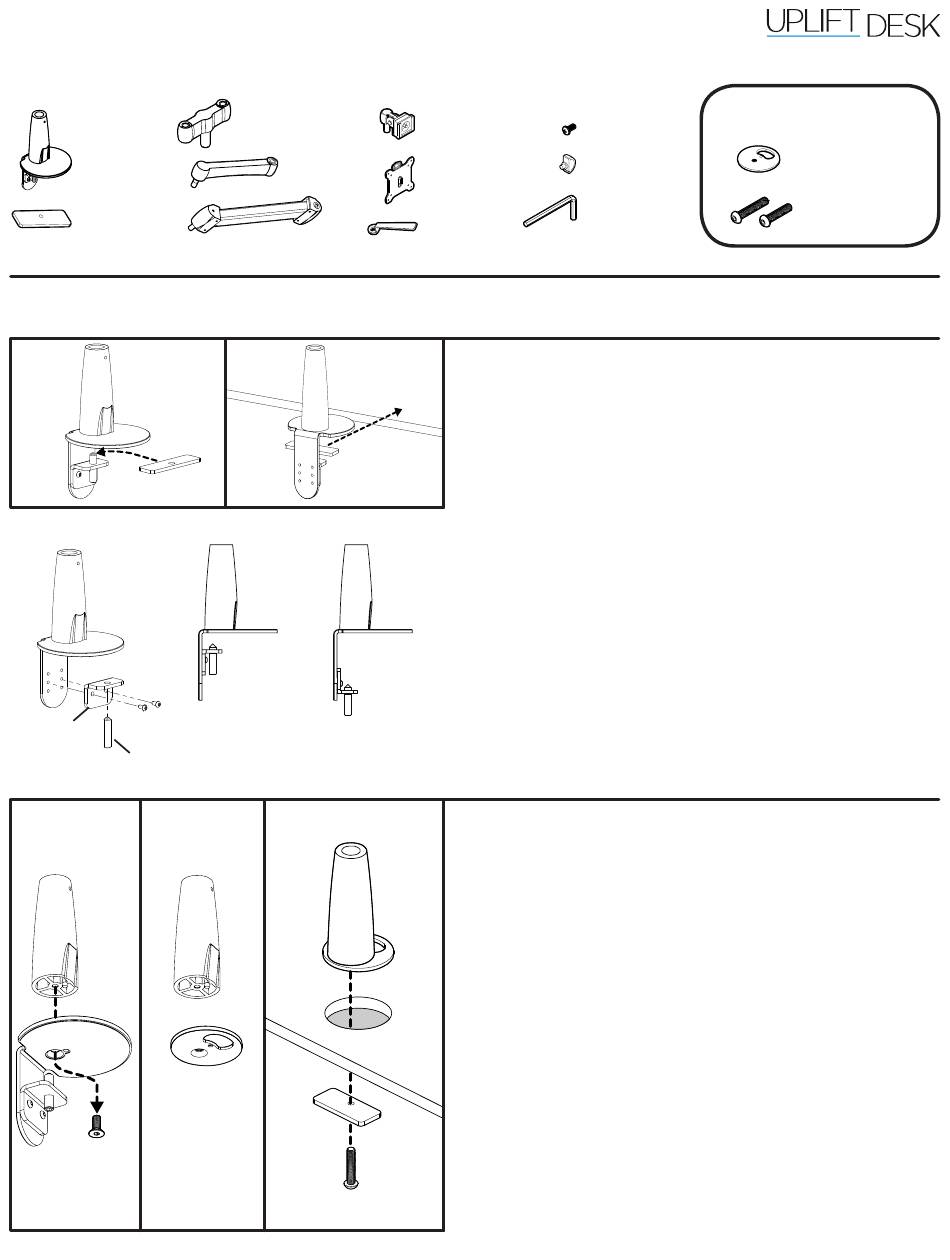

Package Contents
Base
Bottom plate
Note: There are two ways to attach to your desktop: Clamp and Bolt-through mount. Determine if you need to attach it
around the back side of your desk (follow Step 1.1) or through a hole from 0.4'' to 3.15'' in diameter (follow Step 1.2).
fig. 1
bottom
clamp
bolt
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • upliftdesk.com
Dual arm adapter
Extension arm
(qty 2)
Gas arm
(qty 2)
fig. 2 fig. 3
min max
thickness thickness
0.75'' 3.75''
Monitor screw
Monitor joint
(qty 8)
(qty 2)
Wire clips
(qty 8)
VESA mount
(qty 2) Allen wrenches
(set of five:
13 mm Flat
2 mm, 3 mm, 4 mm,
wrench
6 mm, and 6.5 mm)
Step 1.1 - Clamp
Rest the Bottom plate on the Base's bolt. Next, fit the Base around
the back edge of your desk, and using the 6.5 mm Allen wrench,
tighten the Long bolt & Bottom plate into place.
When placing the Bottom plate on the Base's bolt, make sure the
edge farthest from the hole is facing the back of the Base and the
edge closest to the hole aligns with the front edge of the Bottom
clamp. If you're attaching this to a UPLIFT V2 4-Leg Desk, this is
the only way it will fit properly.
Note: If the Clamp does not fit around your desk edge, you can
increase or decrease the space between the Clamp by removing
the bottom of the Clamp and the Bolt, and repositioning them.
Using the 4 mm Allen wrench, unscrew the two screws holding
the bottom of the Clamp (see fig. 1).
For thinner desks (0.75'' minimum), reassemble the Clamp as
shown in fig. 2. For thicker desks (3.75'' maximum), reassemble
the Clamp, as shown in fig. 3.
Note: If you're mounting this to an UPLIFT V2 4-Leg Desk, 2.5'' will
be the maximum thickness that will work with the Clamp.
Once the Clamp is sized and attached to your desktop as de-
scribed above, continue on to Step 2.
Step 1.2 - Bolt-through
To mount your monitor arm through a hole in your desktop, first
measure the hole. It must be between a minimum 0.4'' and a max-
imum of 3.15'' in diameter.
Prepare the Base for the Bolt-through mount by first loosen-
ing the screw under the Clamp with the 6 mm Allen wrench.
Note: screw may be tight. Once removed, separate the Clamp as-
sembly from the Base.
Place the Base onto the Bolt-through top, as shown. The Base's
small peg should fit into the small hole on the Bolt-through top.
Rotate until the large hole lines up with the notch at the front of
the Base.
Place assembly completely over the hole, and facing the front of
desk. Then, select a Long bolt: the 50 mm Bolt fits desks 0.6'' to
1.38'' thick, and the 70 mm Bolt fits desks 1.38'' to 2.13'' thick. Insert
the Long bolt through the Bottom plate.
Note: The Bottom plate must straddle the hole's diameter. As
long as the hole isn't larger than 3.15'' than the Bottom plate will
work. Thread the bolt into the Base assembly by hand and tighten
using the 6 mm Allen wrench.
Parts for
Bolt-through assembly
Bolt-through top
Long bolts
(two sizes included:
50 mm & 70 mm)
