Lucasey LC6X4WTM Installation Instructions Manual

LC6X4WTM INSTALLATION INSTRUCTIONS

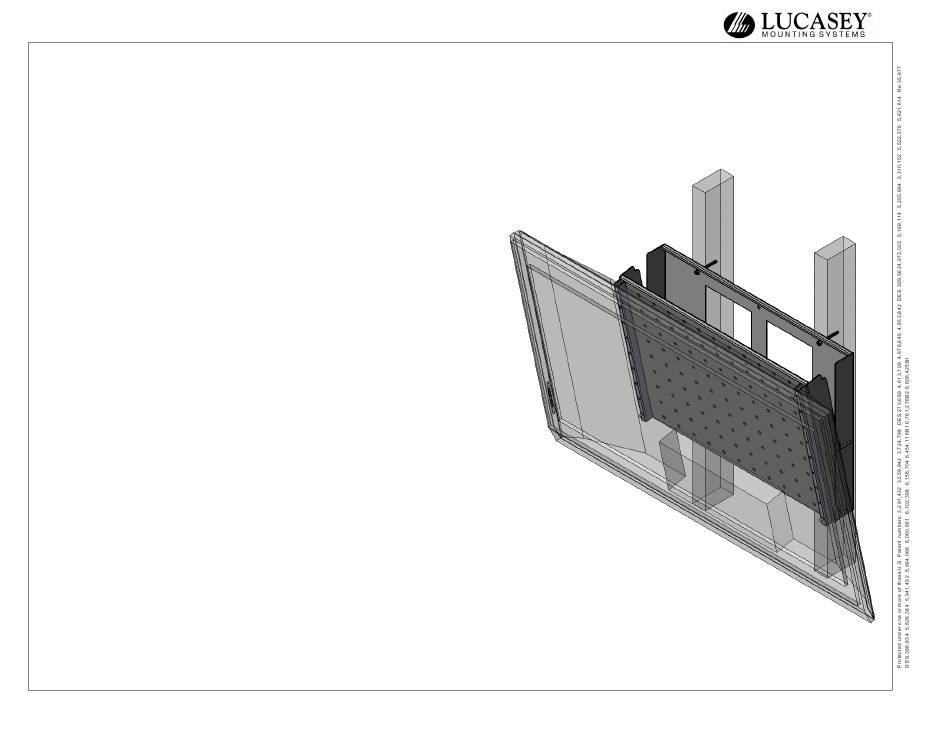

The LC6X4WTM Security Wall Mount with Tilt is designed to
secure a flat screen, up to a 60", to the wall while
still allowing the monitor to tilt.
The VESA® mounting patterns on the front of the
LC6X4WT allow it to be mounted to monitors that have
mounting patterns of 600mm x 400mm or smaller
(including 400mm x 200mm and 200mm x 200mm
mounting patterns)
Convenient cutouts for electrical and A/V wiring in the wall.
Using the provided security screws prevents the monitor
from being removed without the use of a security screw
tool, purchased separately.
Important! Please read all warnings and cautions before installing the mount.
Caution: Improper installation of this mount may void the warranty on your monitor.
Caution: Wall attachment should be performed by qualified installers only, using construction methods prescribed
by authorized architects or engineers that comply to all applicable codes and standards.
The maximum weight of monitor to be installed on the LC6X4WTM is 150 Lbs. (68.2Kg.)
Inspect all parts to make sure there is no shipping damage. Do not install if any parts are damaged.
Please call 1-800-LUCASEY or 1-510-534-1435 if you have any questions about this installation.
LC6X4WTM (9/09)
Page 1 of 6
LC6X4WTM
Security Wall Mount with Tilt
for up to 60" Flat Screens with
VESA® 600mm x 400mm or less
©2009 Lucasey Manufacturing Corporation, Oakland, California www.lucasey.com
