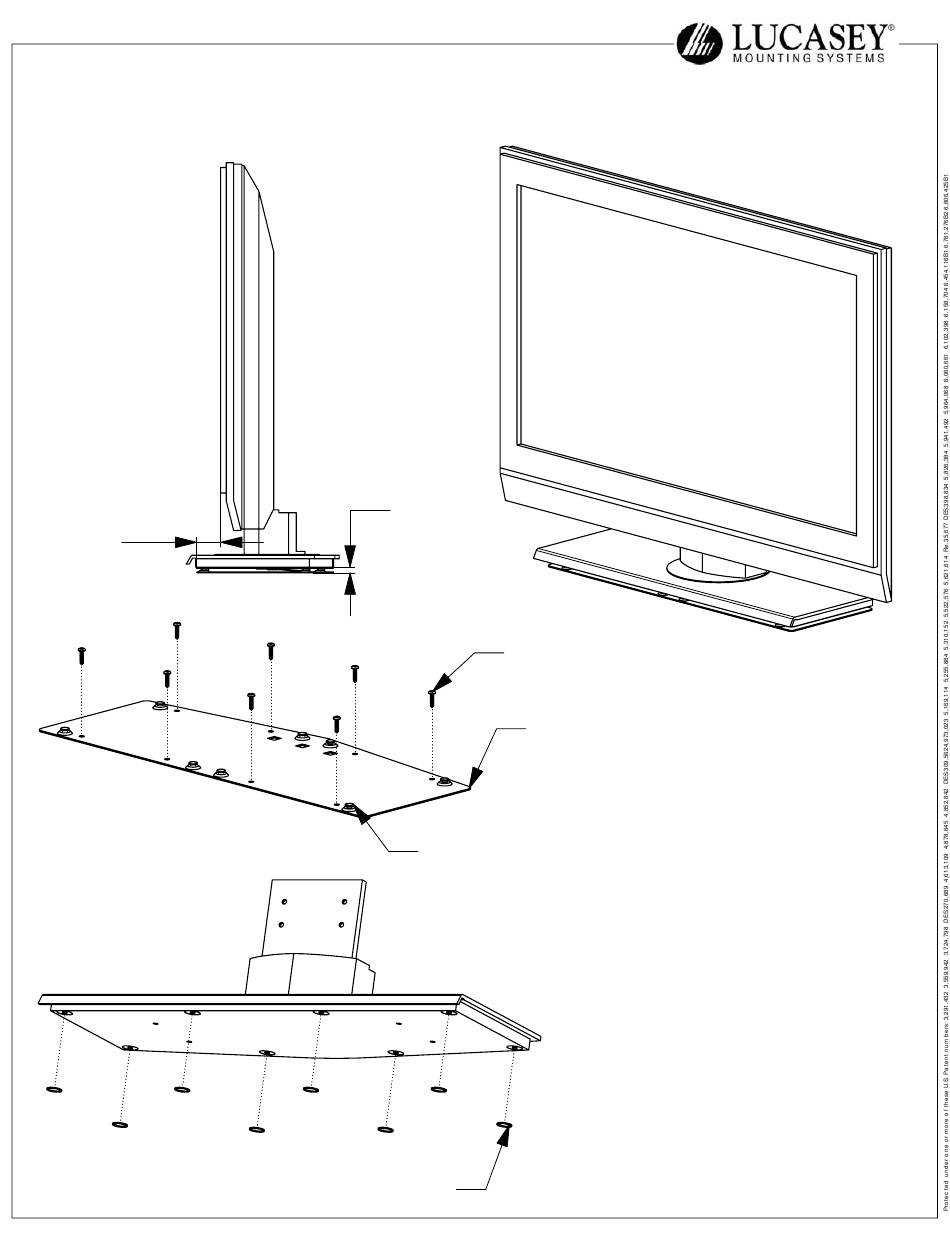

LG2510B INSTALLATION INSTRUCTIONS
LG2510B - Bolt Down Furniture Mount
for LG Models 42LC5DC/DCB/DCS & 42LC50C
2.25"
LG2510B_Install (9/08)
Page 1 of 2
0.4"
(8Pl.) #10 x 1/2" Phillips Screws
(8Pl.) Rivets
(8Pl.) Rubber Feet
Adhered to Base
©2008 Lucasey Manufacturing Corporation, Oakland, California
Bottom Plate
Determine the appropriate location on the furniture
1.
for the monitor. Mark the front edge of the monitor's
plastic base. Mark a parallel line 3/4" back from the
previous line.
Carefully line up the front edge of the Bottom Plate
2.
with the second line marked in step 1.
Attach the Bottom Plate to the furniture with the
3.
provided #10 x 1/2" Phillips Tapping Screws
Remove the rubber feet from the LG Monitor Base.
4.
Component List
1 ...
Top Plate
1 ...
Bottom Plate
4 ...
Security Screws
4 ...
#10-32 x 1/2" Phillips Machine Screws
8 ...
#10 x 1/2" Phillips Tapping Screws
www.lucasey.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lucasey LG2510B
Summary of Contents for Lucasey LG2510B
- Page 1 Page 1 of 2 LG2510B INSTALLATION INSTRUCTIONS LG2510B - Bolt Down Furniture Mount for LG Models 42LC5DC/DCB/DCS & 42LC50C 0.4" 2.25" (8Pl.) #10 x 1/2" Phillips Screws Bottom Plate Determine the appropriate location on the furniture for the monitor. Mark the front edge of the monitor's plastic base.
- Page 2 Slide the Release Key between the Top Plate Assembly and the Bottom Plate. Once the Release Key is inserted all the way, the top and bottom plates will release from each other. LG2510B_Install (9/08) ©2008 Lucasey Manufacturing Corporation, Oakland, California www.lucasey.com...
