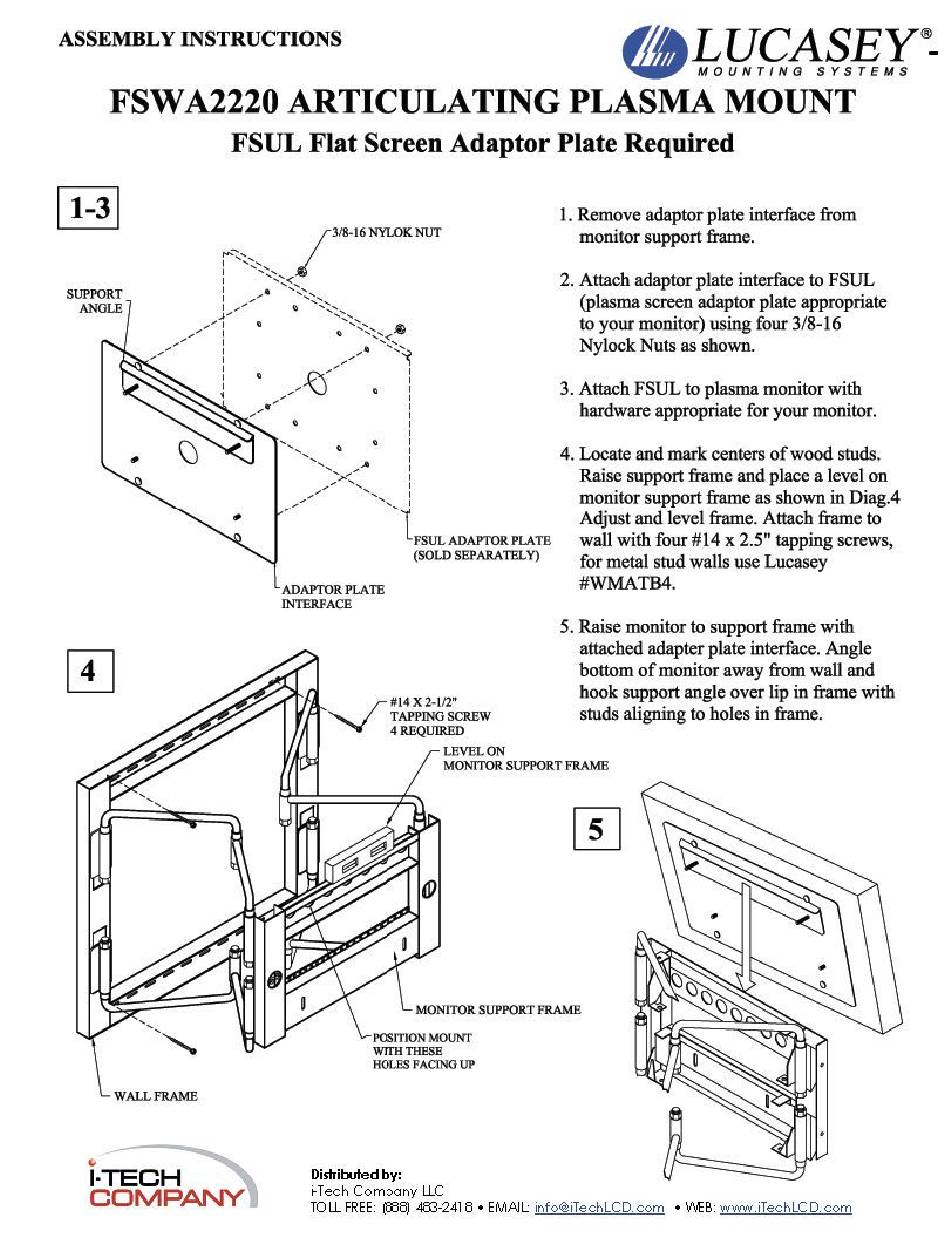

ASSEMBLY INSTRUCTIONS
mLUCASEY
> ^ H I ^ MOUNTING SYSTEMS
FSWA2220 ARTICULATING PLASMA MOUNT
FSUL Flat Screen Adaptor Plate Required
3/8-16 NYLOK NUT
FSUL ADAPTOR PLATE
[SOLD SEPARATELY)
k
ADAPTOR PLATE
INTERFACE
#14X2-1/2"
TAPPING SCREW
4 REQUIRED
LEVEL ON
MONITOR SUPPORT FRAME
1. Remove adaptor plate interface from
monitor support frame.
2. Attach adaptor plate interface to FSUL
(plasma screen adaptor plate appropriate
to your monitor) using four 3/8-16
Nylock Nuts as shown.
3. Attach FSUL to plasma monitor with
hardware appropriate for your monitor.
4. Locate and mark centers of wood studs.
Raise support frame and place a level on
monitor support frame as shown in Diag.4
Adjust and level frame. Attach frame to
wall with four #14 x 2.5" tapping screws,
for metal stud walls use Lucasey
#WMATB4.
5. Raise monitor to support frame with
attached adapter plate interface. Angle
bottom of monitor away from wall and
hook support angle over lip in frame with
studs aligning to holes in frame.
MONITOR SUPPORT FRAME
POSITION MOUNT
WITH THESE
HOLES FACING UP
WALL FRAME
l-TECH
C O M P A N Y
