Lucasey LG1810A Installation Instructions

LG1810A INSTALLATION INSTRUCTIONS
LG1810A - Adhesive Furniture Mount
for 37" & 42" LG Models 37LD340H, 42LD340H,

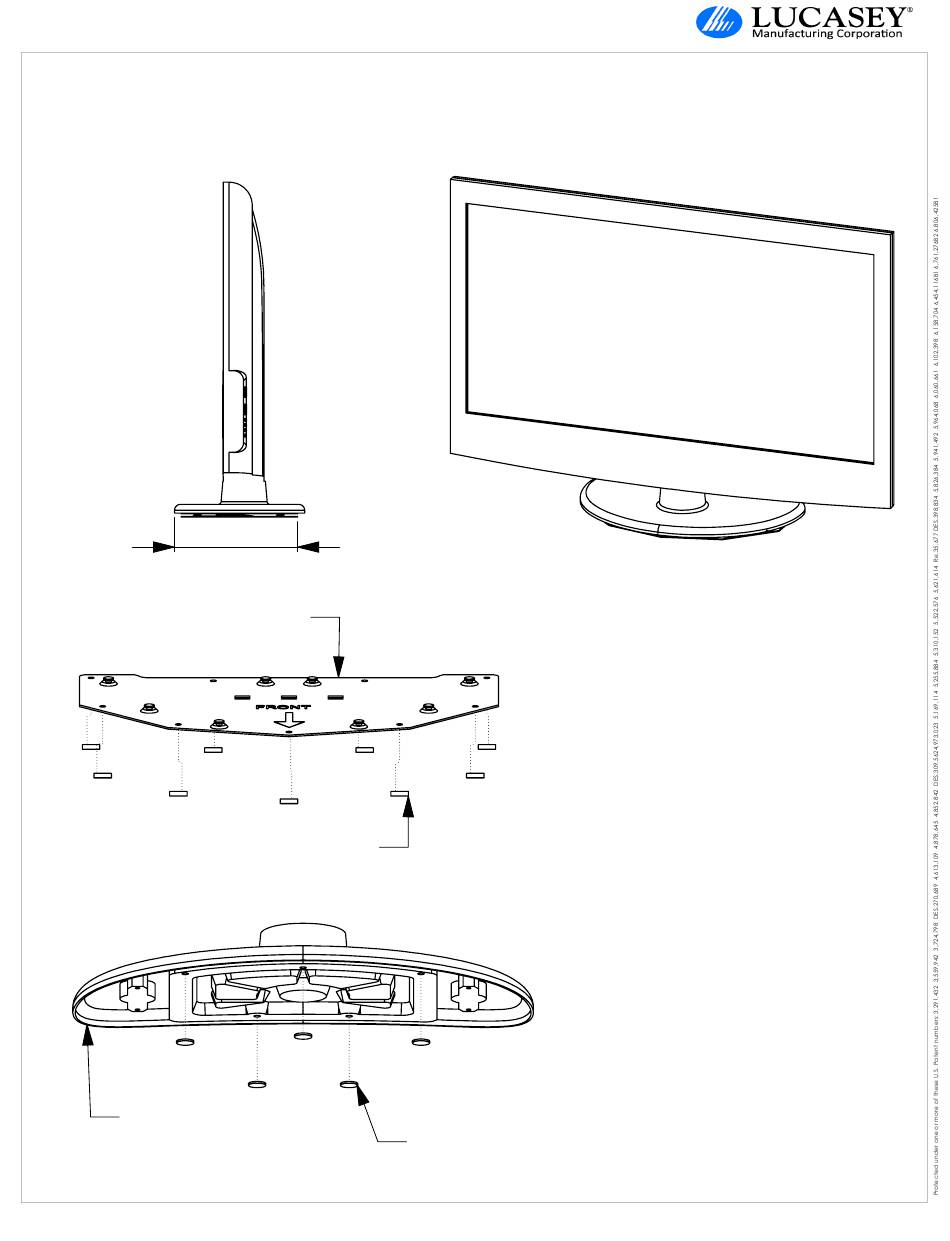

Step 1
10-3/4"
LG1810A Bottom Plate
Steps 2-4
(8PL.) Adhesive Plastic Covers
Step 5
LG Monitor Base
LG1810A_Install (7/11)
Page 1 of 2
37LH250H & 42LH250H
(5Pl.) Rubber Feet
©2011 Lucasey Manufacturing Corporation, Oakland, California
LG Monitor & Swivel Base Not Included with LG1810B
1. Determine the appropriate location on the furniture
for the monitor. Mark a parallel line to the front edge
of the LG monitor base. Mark a second parallel line
10-3/4" back from the previous line.
2. Peel the Plastic Covers off of the Adhsive Pads. Be
careful not to contact the furniture surface.
3. Carefully line up the back of the LG1810A Bottom Plate
with the second line marked in step 1.
4. Press the LG1810A Bottom Plate onto the countertop
and hold down for 15 seconds.
5. Remove the Rubber Feet from the bottom of the LG
Monitor Base.

Component List

1 ... LG1810 Top Plate
1 ... LG1810B Bottom Plate
4 ... 4mm x 25mm Pin Head Security Screws
8 ... 5mm x 6mm Phillips Round Head Machine Screws
5 ... #6 x 1/2" Phillips Flat Head Tapping Screws
www.lucasey.com
