Lucasey CKLC100CRT71 Installation Instructions

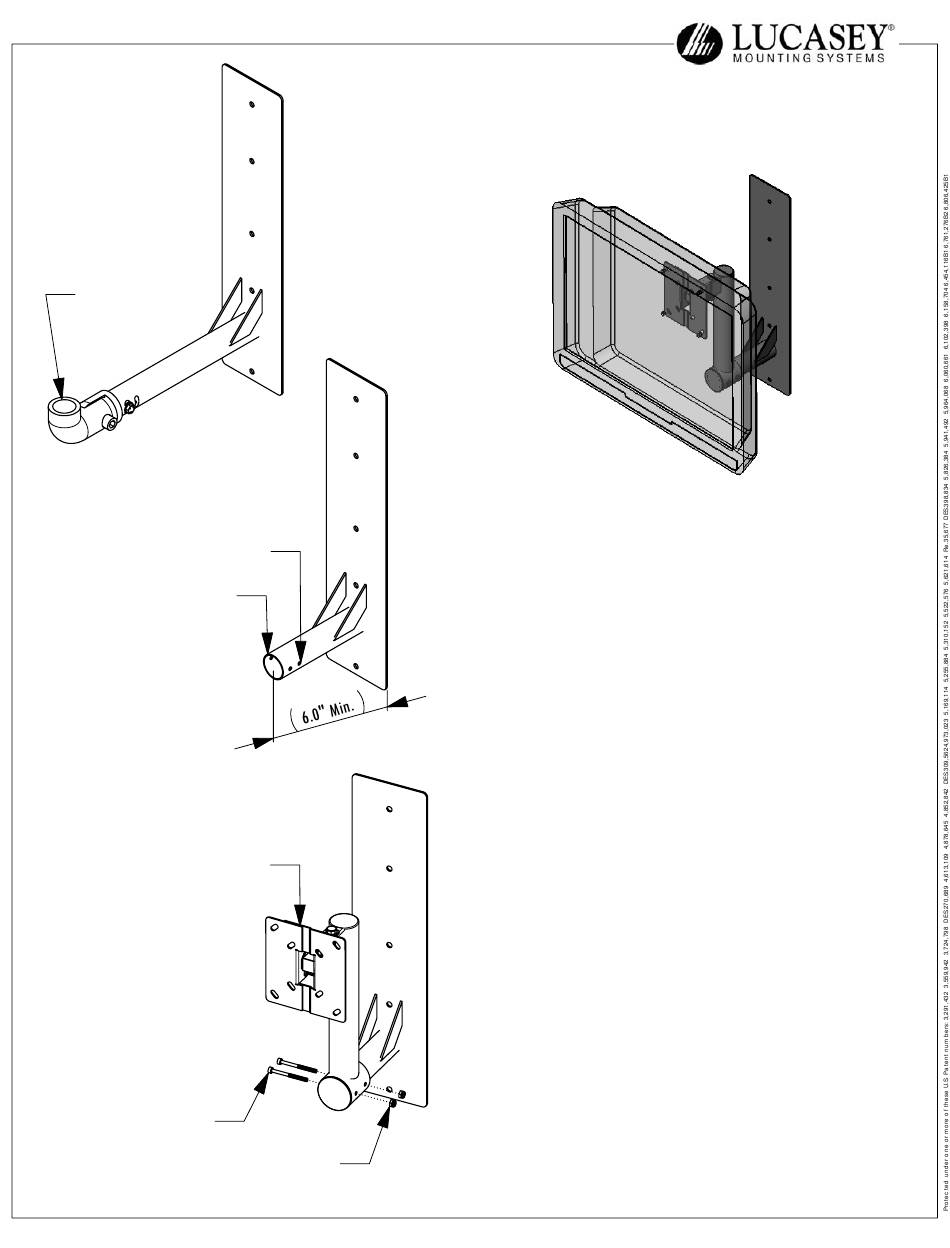

CKLC100CRT71 INSTALLATION INSTRUCTIONS
7100 or 9000 Series

Knuckle Assembly

2Pl. Holes for CKLC100CRT71 Mount

Cut Steel Tubing

Make sure the mounting plate is
level when marking both sides
of the tubing to be drilled.
2Pcs. #10-24 x 2"
Socket Cap Screws
2Pcs. #10-24 Nylock Nuts
CKLC100CRT71_Ins - 3/30/09 - M.R.B.
Page 1 of 2
CKLC100CRT71
1. Remove the CRT TV from the 7100 or 9000 series mount by unlocking the
TV mounting plate and lifting the TV and mounting plate off of the mount.
2. Remove the knuckle from the tubing using a tubing cutter to cut the tubing
behind the knuckle. The minimum distance from the wall arm, or the bend in
the 9000 series ceiling mount tubing, to the end of the cut tubing should be 6".
3. If the tubing is to be left intact, the knuckle will need to be removed by
taking off a 3/8" Hex Bolt and a hardened Roll Pin. The Roll Pin can only be
removed by grinding in an enironment where the metal grindings won't
cause a hazard. Cutting the tubing behind the knuckle is the prefered
method for installation.
4. Use the CKLC100CRT71 with a level to mark the two holes needed in the
cut tubing. Mark the holes on both sides of the tubing with the mount
held level.
5. Drill 1/4" holes through the tubing in all four marked locations. The holes
on the right side can be made a little larger to adjust the mount level.
5/16-18 x 2-1/4" Hex Bolt
1 ...
1 ... 5/16-18 x 1-1/2" Button Head Screw
1 ... 1/4-20 x 1-1/2" Button Head Screw
1 ... 1/4-20 Nylock Nut
2 ... 1/4" Flat Washer
2 ... #10-24 x 2" Socket Cap Head Screws
2 ... #10-24 Nylock Nuts
6 ... 4mm x 25mm Set Screws
6 ... 5mm x 30mm Set Screws
6 ... 6mm x 30mm Set Screws
6 ... 4mm x 12mm Phillips Screws
6 ... 5mm x 12mm Phillips Screws
6 ... 6mm x 12mm Phillips Screws
©2009 Lucasey Manufacturing Corporation, Oakland, California

Assembly Hardware

4 ... 1/4" Belleville Washer
5 ... 5/16" Belleville Washer
2 ...
5/16" Flat Washer
2 ... 5/16-18 Nylock Nut

Hardware Kit

12 ... 4mm Hex Nuts
12 ... 5mm Hex Nuts
12 ... 6mm Hex Nuts
36 ... 5mm Flat Washers
18 ... 1/4" Flat Washers
www.lucasey.com
