LC200DS2 INSTALLATION INSTRUCTIONS
with up to 200mm x 200mm VESA® Mounting Patterns
Multi-position triple pivoting arms allows you to position
the monitor in hard to reach areas. Use the LC200DS2
with flat screens up to 75 Pounds. Ideal for concealing
cord connections in the wall behind the flat screen.
Designed to mount to structures with 16" C L wall studs.
The monitor can be pushed into or pulled away from the
wall as needed. The dual pivot points and relocatable
wall arm position allow for flexibility in monitor placement.
The viewing angle can be adjusted 45 for the best
viewing angle.
Wood lag screws are provided for wood stud installations.
Concrete anchor bolts or Toggle bolts for metal studs
can be ordered separately using part numbers:
WMAAB6 or WMATB6.
Open pattern of wall plate allows access holes to be cut
into wall.
Important! Please read all warnings and cautions before installing the mount.
Caution: Improper installaion of this wall mount may void the warranty on your monitor.
Caution: Wall attachment should be performed by qualified installers only, using construction methods prescribed
by authorized architects or engineers that comply to all applicable codes and standards.
The maximum weight of each monitor to be installed on theLC200DS2 is 75Lbs. (34.1 Kg.)
Inspect all parts to make sure there is no shipping damage. Do not install if any parts are damaged.
Please call 1-800-LUCASEY or 1-510-534-1435 if you have any questions about this installation.
LC200DS2_Ins (1/07) DOC#20070003A
Page 1 of 5
LC200DS2
Double Stud Dual Articulating Wall Mount
for Flat Panel Screens up to 32"
©2007 Lucasey Manufacturing Corporation, Oakland, California
www.lucasey.com
Advertisement
Table of Contents
Related Manuals for Lucasey LC200DS2
Summary of Contents for Lucasey LC200DS2
- Page 1 The maximum weight of each monitor to be installed on theLC200DS2 is 75Lbs. (34.1 Kg.) Inspect all parts to make sure there is no shipping damage. Do not install if any parts are damaged. Please call 1-800-LUCASEY or 1-510-534-1435 if you have any questions about this installation. LC200DS2_Ins (1/07) DOC#20070003A ©2007 Lucasey Manufacturing Corporation, Oakland, California...
- Page 2 WARNING: Take into consideration the combined weight of the mount, the monitor and any auxiliary equipment when determining the total load on the wall and mount. WARNING: Do not place body parts between movable parts on the LC200DS2 mount. The mount has pinch points that can cause injury.

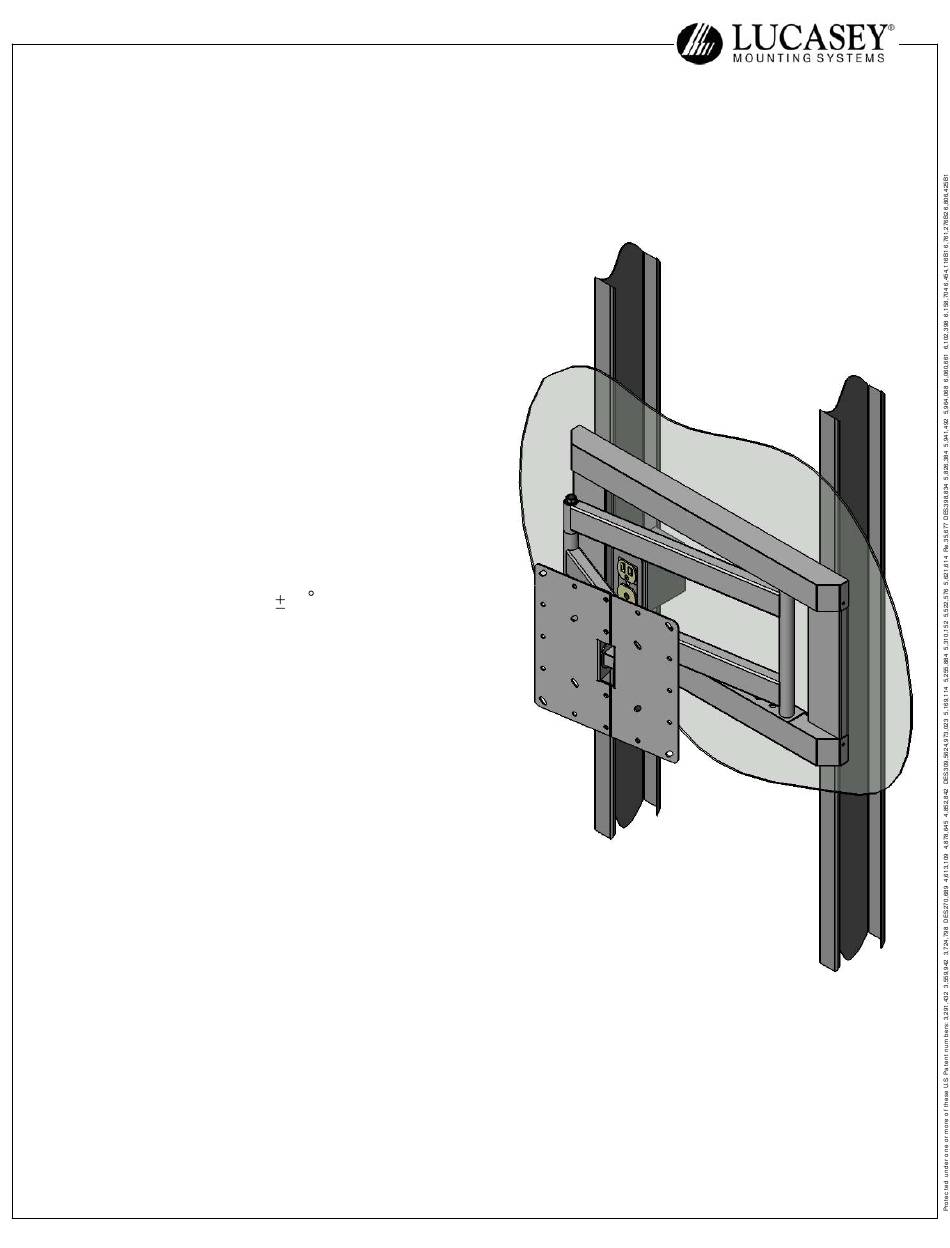

- Page 3 Inside arm folds past outside arms for closest to the wall home position. 5" 16" LC200DS2 Top View Straight LC200DS2 Top View Showing Pivots Pivot point for articulation (Can be relocated for best monitor viewing locaiton) Pivot point for articulation...
- Page 4 2. Find the location of the center of two wood studs 16" appart using a stud finder. Using the LC200DS2 Wall Bracket as a template, mark the location for the six Wood Lag Screws.
- Page 5 Lucasey Manufacturing Corporation will repair or replace defective parts or equipment within one year of the date of purchase, at its option, provided the part or equipment is returned pre-paid to Lucasey Manufacturing Corporation's plant.
