LG1558A INSTALLATION INSTRUCTIONS
LG1558A - Adhesive Furniture Mount
Step 1
Steps 2-4
Step 5
Rubber Feet
LG1558A_Install (9/09)
Page 1 of 2
for 32" LG Model 32LH250H
8.5"
Adhesive Covers
©2009 Lucasey Manufacturing Corporation, Oakland, California

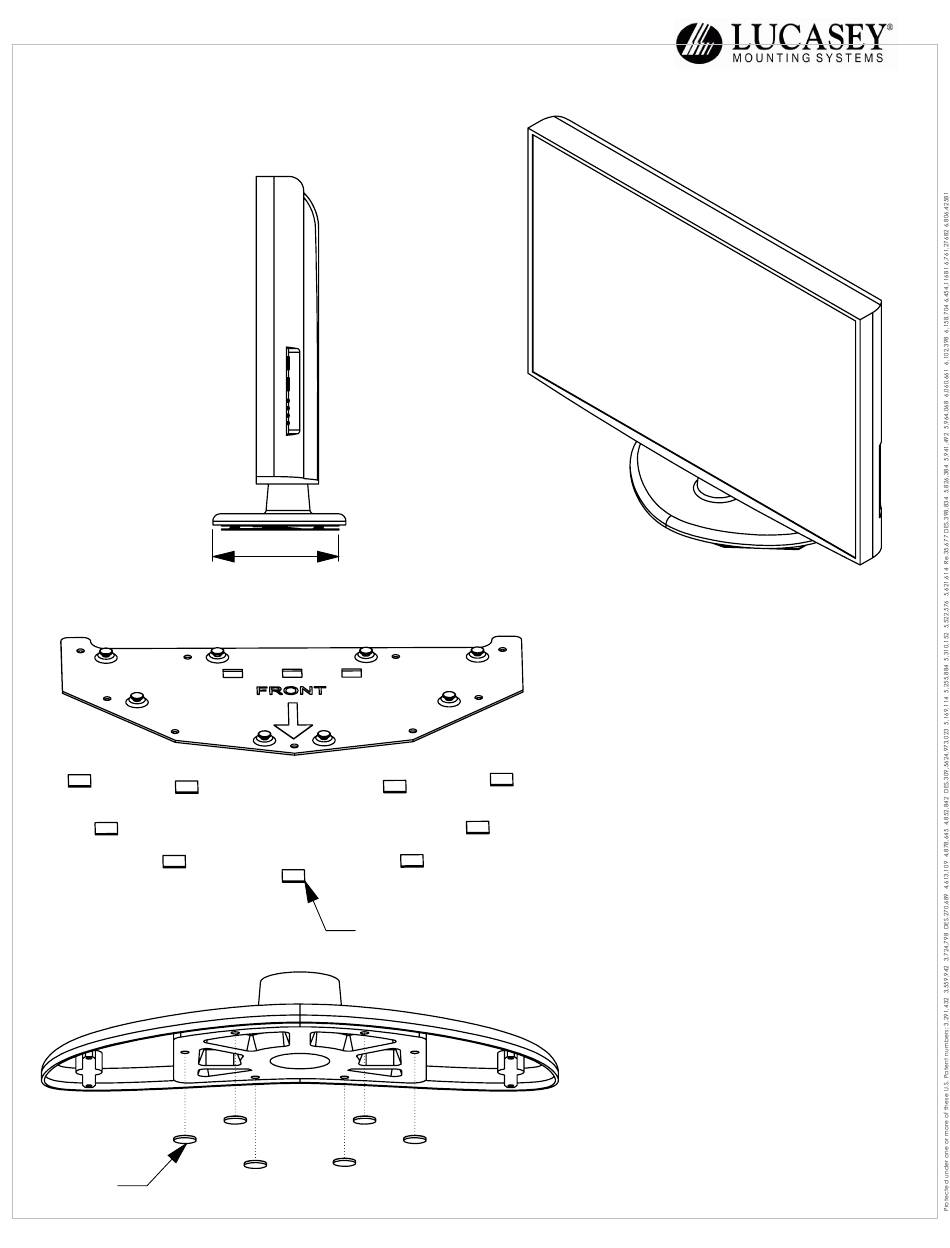

1.
Determine the appropriate location on the furniture
for the monitor. Mark a parallel line to the front edge
of the LG monitor base. Mark a second parallel line
8-1/2" back from the previous line.
2.
Peel the Plastic Covers off of the Adhsive Pads. Be
careful not to contact the furniture surface.
3.
Carefully line up the back of the LG1558A Bottom Plate
with the second line marked in step 1.
4.
Press the LG1558A Bottom Plate onto the countertop
and hold down for 15 seconds.
5.
Remove the Rubber Feet from the bottom of the LG
Monitor Base.
Component List
1 ...
LG1558 Top Plate
1 ...
LG1558A Bottom Plate
4 ...
Security Screws
4 ...
5mm x 6mm Phillips Round Head Machine Screws
6 ...
#6 x 1/2" Phillips Flat Head Tapping Screws
