Lucasey SM1909B Installation Instructions

SM1909B INSTALLATION INSTRUCTIONS
SM1909B - Bolt Down Furniture Mount
for Samsung Model LN32A450 & LN32B457C6HXZA
3.9"
T#2026
SM1909B_Install (4/09)
Page 1 of 2
Phillips Countersunk Tapping Screws - Silver
Monitor Base Rubber Feet
©2009 Lucasey Manufacturing Corporation, Oakland, California

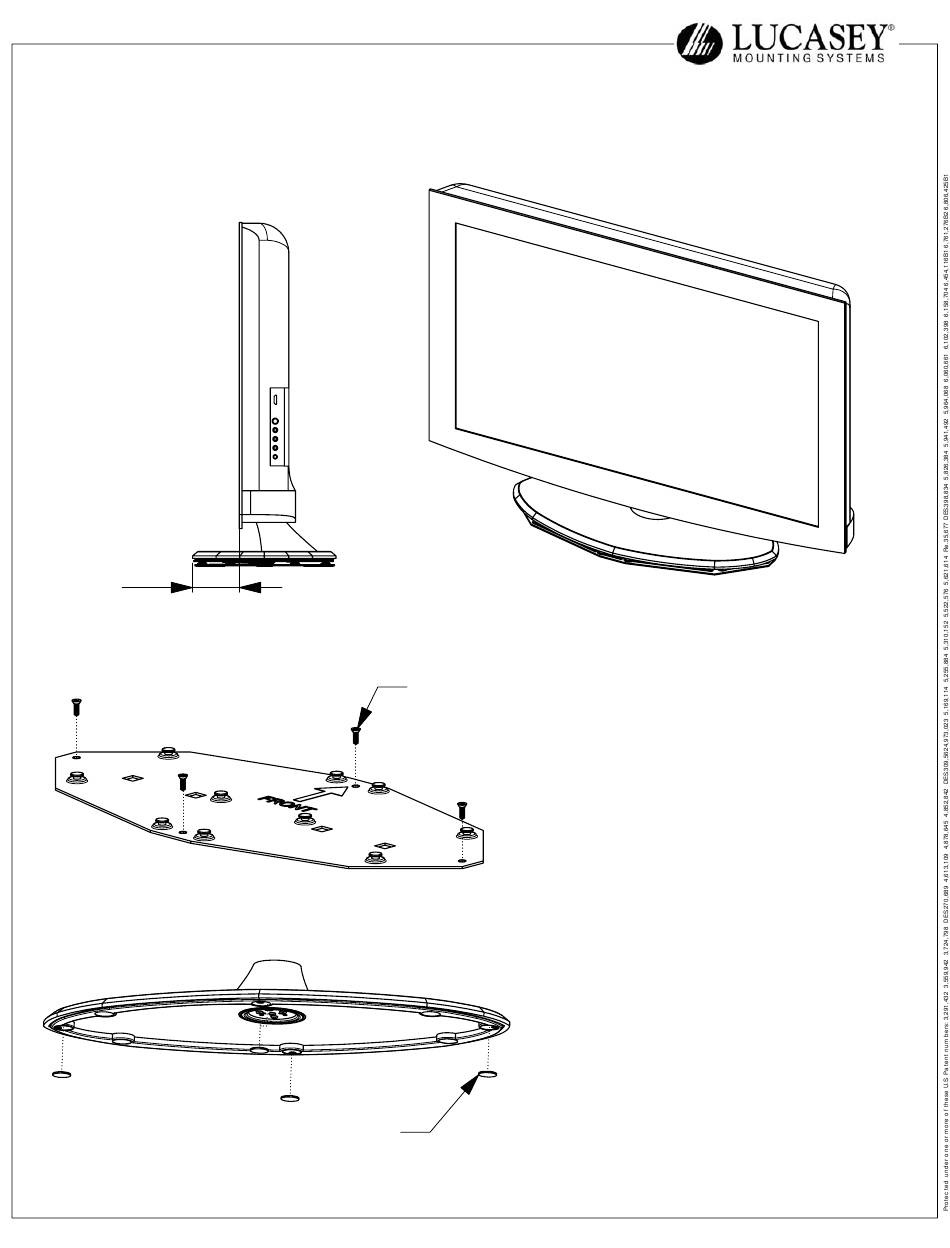

Determine the appropriate location on the furniture
1.
for the monitor. Mark the location for the mount.
Carefully line up the front edge of the Bottom Plate
2.
with the line marked in step 1. Make sure that the
front arrow is pointed towards the front of the
furniture.
Attach the Bottom Plate to the furniture with 8 of
3.
the Silver #8 x 5/8" Phillips Tapping Screws
Remove the rubber feet from the Monitor Base.
4.

Component List

1 ...
Top Plate
1 ...
Bottom Plate
4 ...
#8 x 5/8 Pin Head Security Screws - Black
8 ...
#8 x 1/2" Phillips Countersunk Tapping Screws - Silver
www.lucasey.com
