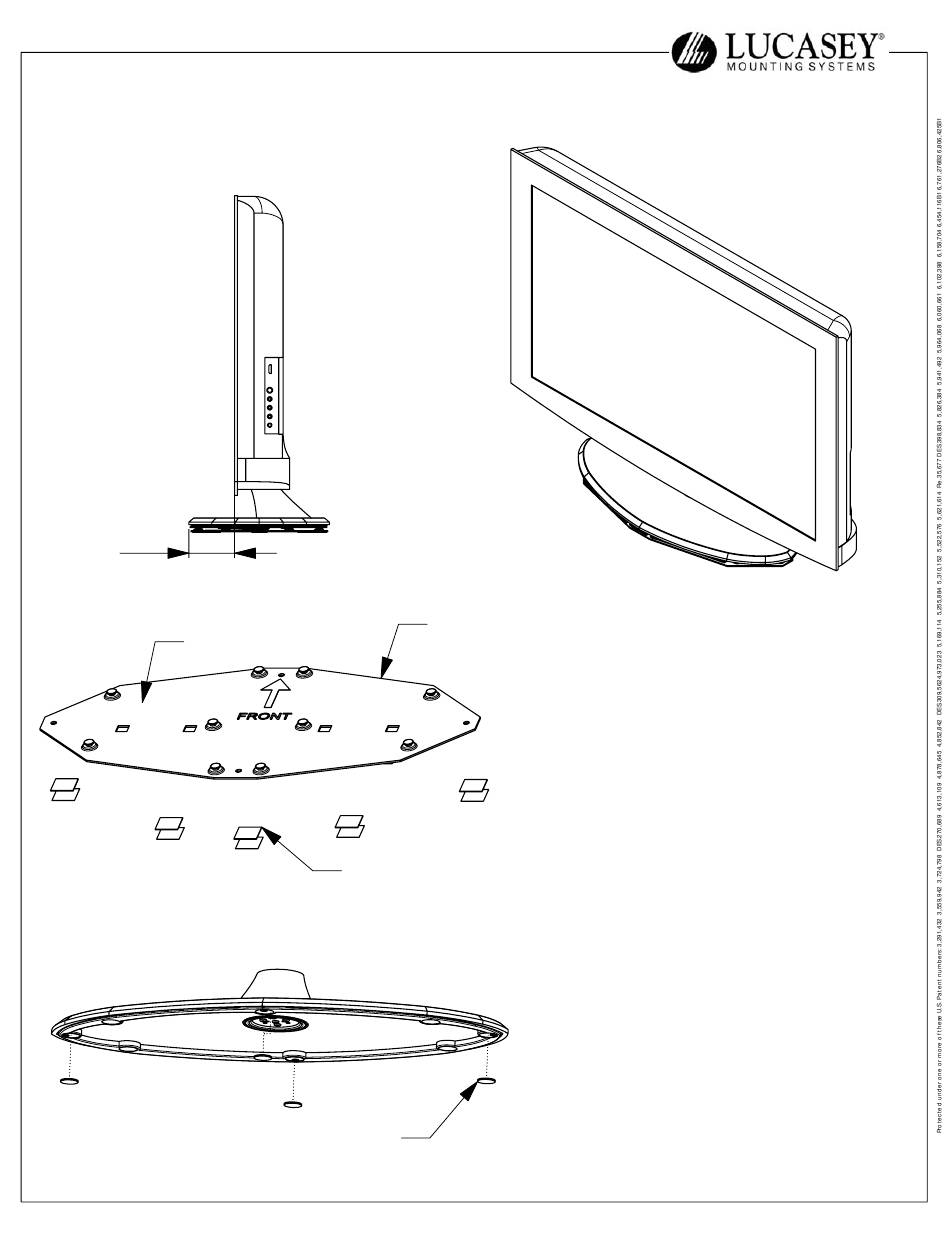

Lucasey SM1909A Installation Instructions

SM1909A INSTALLATION INSTRUCTIONS
SM1909A - Adhesive Furniture Mount
for Samsung Models LN32A450 & LN32B457C6HXZA
3.9"
Rivets
T#2026
SM1909A_Install (4/09)
Page 1 of 2
Bottom Plate
Adhesive Squares
with Plastic Liners
Monitor Base Rubber Feet
©2009 Lucasey Manufacturing Corporation, Oakland, California
Determine the appropriate location on the furniture
1.
for the monitor. Mark the location for the mount.
2. Clean the furniture surface 2x with an alcohol wipe to
remove any residue on the furniture surface.
3. Peel the Liner from the Adhesive Pads on the
Bottom Plate. Avoid accidental contact between
the exposed adhesive and any objects.
Carefully line up the front edge of the Bottom Plate
4.
with the line marked in step 1. Make sure that the
front arrow is pointed towards the front of the
furniture.
Press the Bottom Plate down putting pressure on
5.
each of the Adhesive Pad locations.
6. Remove the Rubber Feet from the Samsung Base.

Component List

1... Top Plate
1... Bottom Plate
4... #8 x 5/8 Tapping Pin Head Security Screws - Black
4... #8 x 1/2" Phillips Countersunk Screws - Silver
