Lucasey LG1558B Installation Instructions

LG1558B INSTALLATION INSTRUCTIONS
LG1558B - Bolt Down Furniture Mount

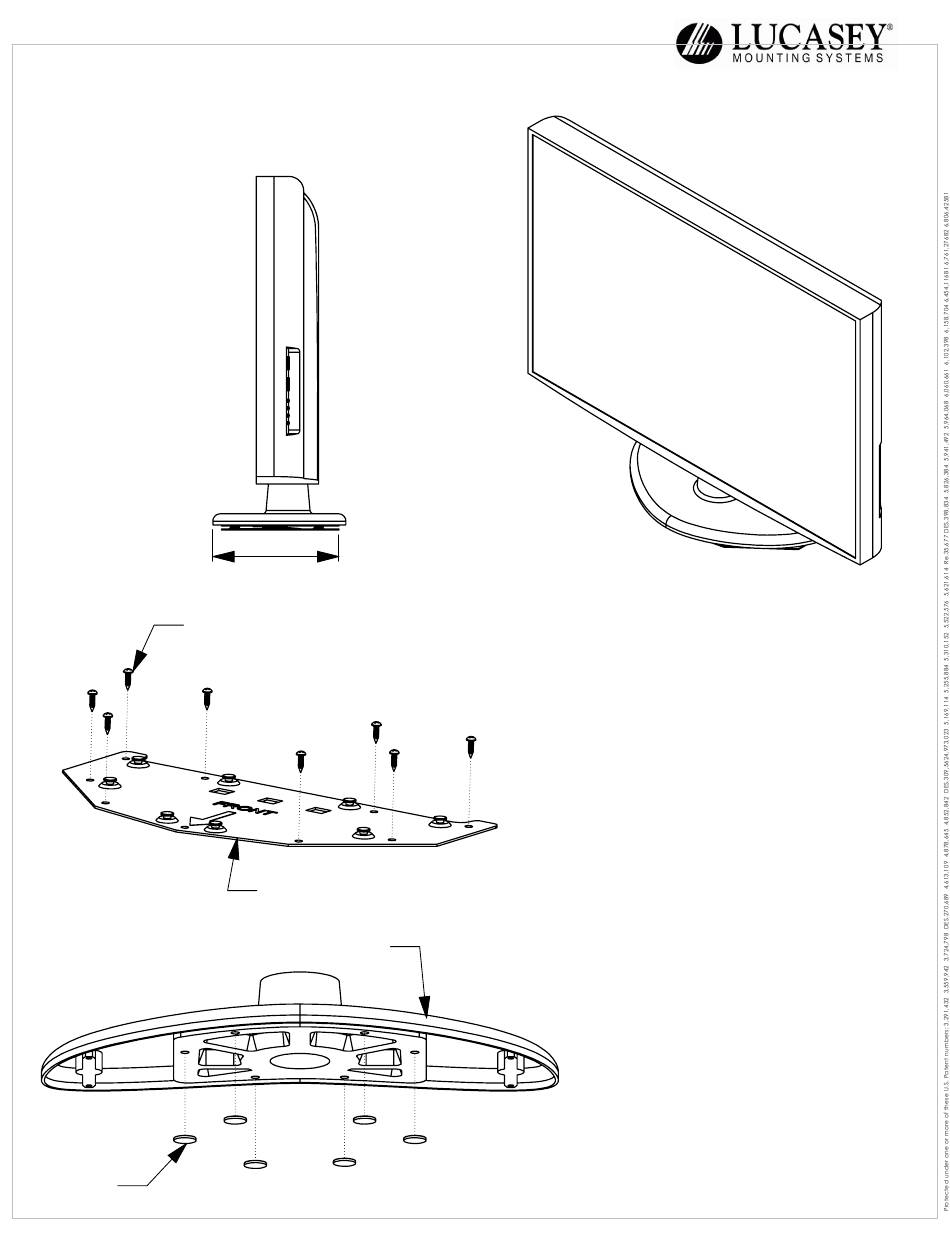

Steps 1-4
(8PL.) #8 x 5/8" Phillips Round Head Tapping Screws
Step 5
Step 6
Rubber Feet
LG1558B_Install (9/09)
Page 1 of 2
for 32" LG Model 32LH250H
8.5"
LG1558B Bottom Plate
LG Monitor Base
©2009 Lucasey Manufacturing Corporation, Oakland, California
1. Determine the appropriate location on the furniture
for the monitor. Mark a parallel line to the front edge
of the LG monitor base. Mark a second parallel line
8-1/2" back from the previous line.
2. Carefully line up the back of the LG1558B Bottom Plate
with the second line marked in step 1.
3. Mark the location of the (8) mounting hole locations
using the Bottom Plate as a template.
4. Drill 5/8" deep pilot holes with a 1/16" bit in each of
the mounting hole locations.
5. Attach the LG1810B Bottom Plate to the furniture with
the provided #8 x 5/8" Phillips Round Head Screws.
6. Remove the Rubber Feet from the bottom of the LG
Monitor Base.
Component List
1 ... LG1558 Top Plate
1 ... LG1558B Bottom Plate
4 ... Security Screws
4 ... 5mm x 6mm Phillips Round Head Machine Screws
6 ... #6 x 1/2" Phillips Flat Head Tapping Screws
8 ... #8 x 5/8 Phillips Round Head Tapping Screws
www.lucasey.com
