Lucasey LG2309A Installation Instructions

LG2309A INSTALLATION INSTRUCTIONS
LG2309A - Adhesive Furniture Mount
for LG Models 37LC5DC/DCB/DCS & 37LC50C
2.25"
(8Pl.) Rivets
LG2309A_Install (10/08)
Page 1 of 2
0.4"
(6Pl.) Adhesive Squares
(6Pl.) Removable Adhesive Liner
Bottom Plate
(8Pl.) Rubber Feet
Adhered to Base
©2008 Lucasey Manufacturing Corporation, Oakland, California

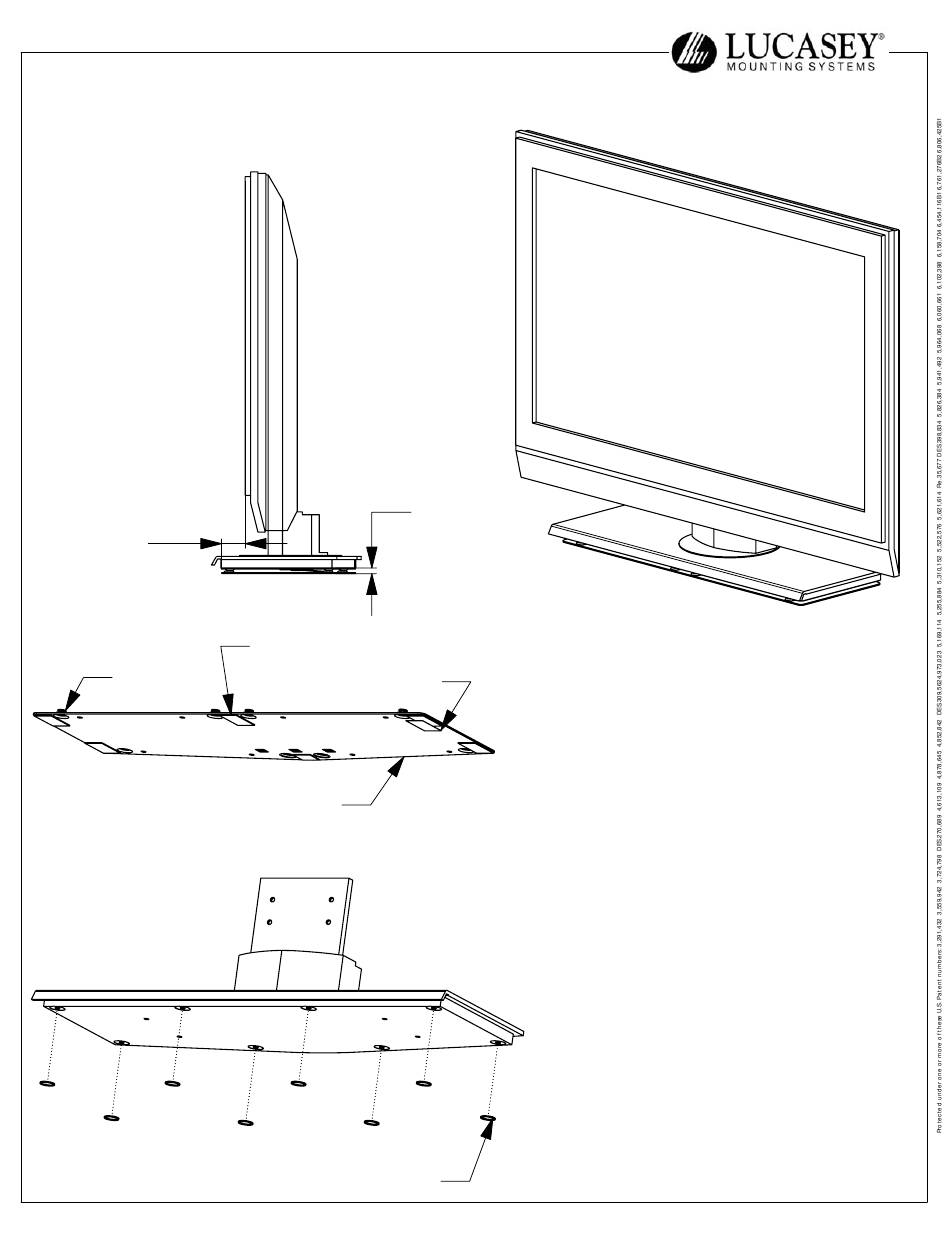

Determine the appropriate location on the furniture
1.
for the monitor. Mark the front edge of the monitor's
plastic base. Mark a parallel line 3/4" back from the
previous line.
Clean the furniture surface 2x with an alcohol wipe to
2.
remove any residue on the furniture surface.
Peel the Liner from the Adhesive Pads on the
3.
Bottom Plate. Avoid accidental contact between
the exposed adhesive and any objects.
Align the front edge of the Bottom Plate with the
4.
second line marked in step 1.
Press the Bottom Plate down putting pressure on
5.
each of the six Adhesive Pad locations.
Remove the rubber feet from the LG Monitor Base.
6.

Component List

1... Top Plate
1... Bottom Plate
4... Security Screws
4... #10-32 x 1/2" Phillips Screws
