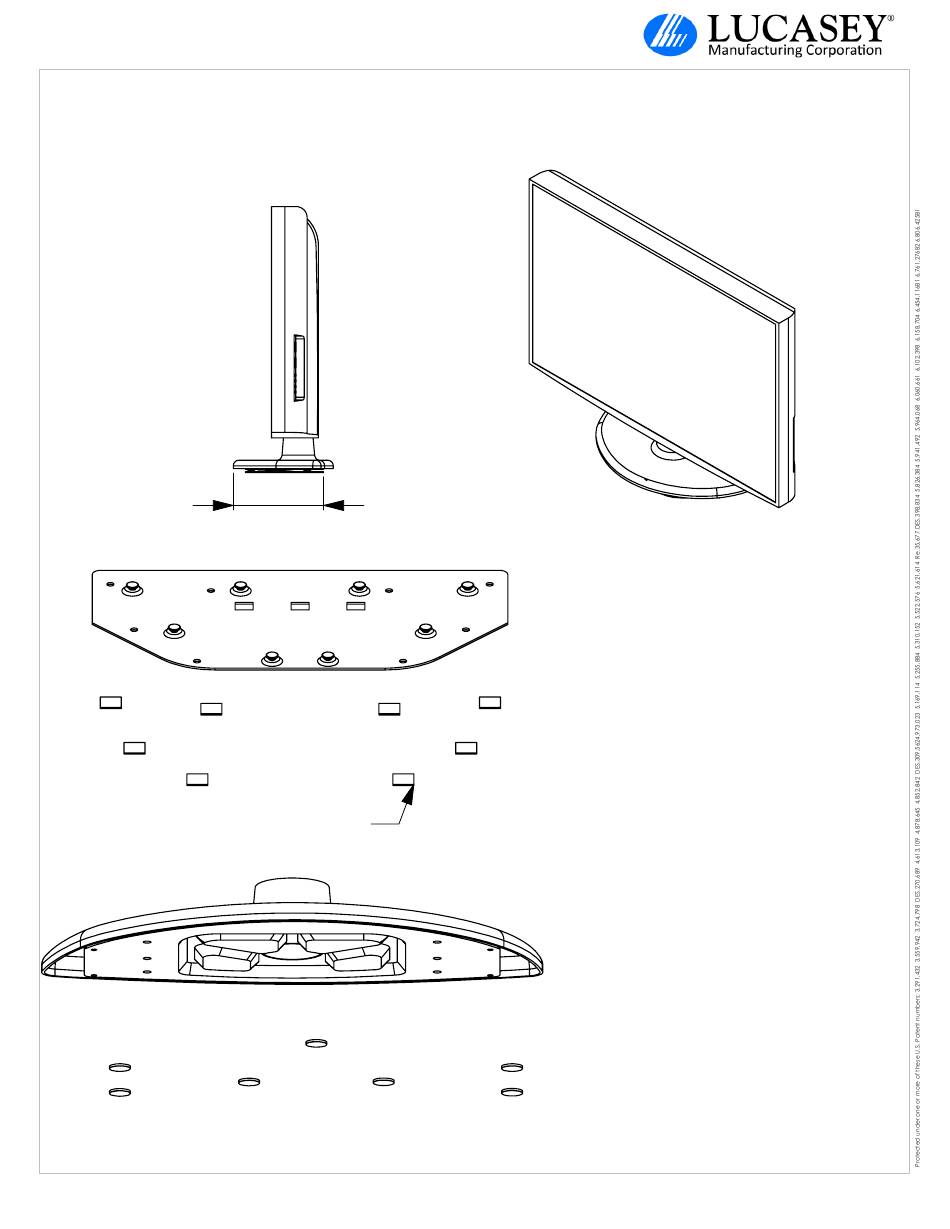

LG1507A INSTALLATION INSTRUCTIONS
LG1507A - Adhesive Furniture Mount
for 32" LG Models: 32LD330H, 32LD310H & 32LG700H
Step 1
Steps 2-4
Step 5
LG1507A_Install (8/11)
Page 1 of 2
8.1"
T#2118
Adhesive Covers
©2011 Lucasey Manufacturing Corporation, Oakland, California
1.
Determine the appropriate location on the furniture
for the monitor. Mark a parallel line to the front edge
of the LG monitor base. Mark a second parallel line
8.1" back from the previous line.
2.
Peel the Plastic Covers off of the Adhsive Pads. Be
careful not to contact the furniture surface.
3.
Carefully line up the back of the LG1507A Bottom Plate
with the second line marked in step 1.
4.
Press the LG1507A Bottom Plate onto the countertop
and hold down for 15 seconds.
5.
Remove the Rubber Feet from the bottom of the LG
Monitor Base.
Component List
1 ...
LG1507 Top Plate
1 ...
LG1507A Bottom Plate
4 ...
4mm x 25mm Pin Head Security Screws
4 ...
5mm x 6mm Phillips Round Head Machine Screws
6 ...
#4 x 3/8" Phillips Flat Head Tapping Screws
