Unmanaged Fast Ethernet Switch
IE-SW-BL05 Series
IE-SW-BL08 Series
Hardware Installation Guide
Important note:
This document and additional product information can be
downloaded using following link:
http://www.weidmueller.com
► Select Product Catalogue
Select „Active Industrial Ethernet "
Select „BasicLine unmanaged Switches "
Select Product model
Click and expand section „Downloads "
Download needed software or documentation
Copyright 2018 Weidmüller Interface GmbH & Co. KG
Reproduction without permission is prohibited.
BasicLine
Fifth Edition, June 2018
1243320000
Copyright Notice
All rights reserved.
(from product Rev. 2.0.2)
(from product Rev. 2.0.0)
/04/06.18
Advertisement
Table of Contents
Related Manuals for Weidmuller IE-SW-BL05T-5TX
Summary of Contents for Weidmuller IE-SW-BL05T-5TX
-
Page 1: Hardware Installation Guide

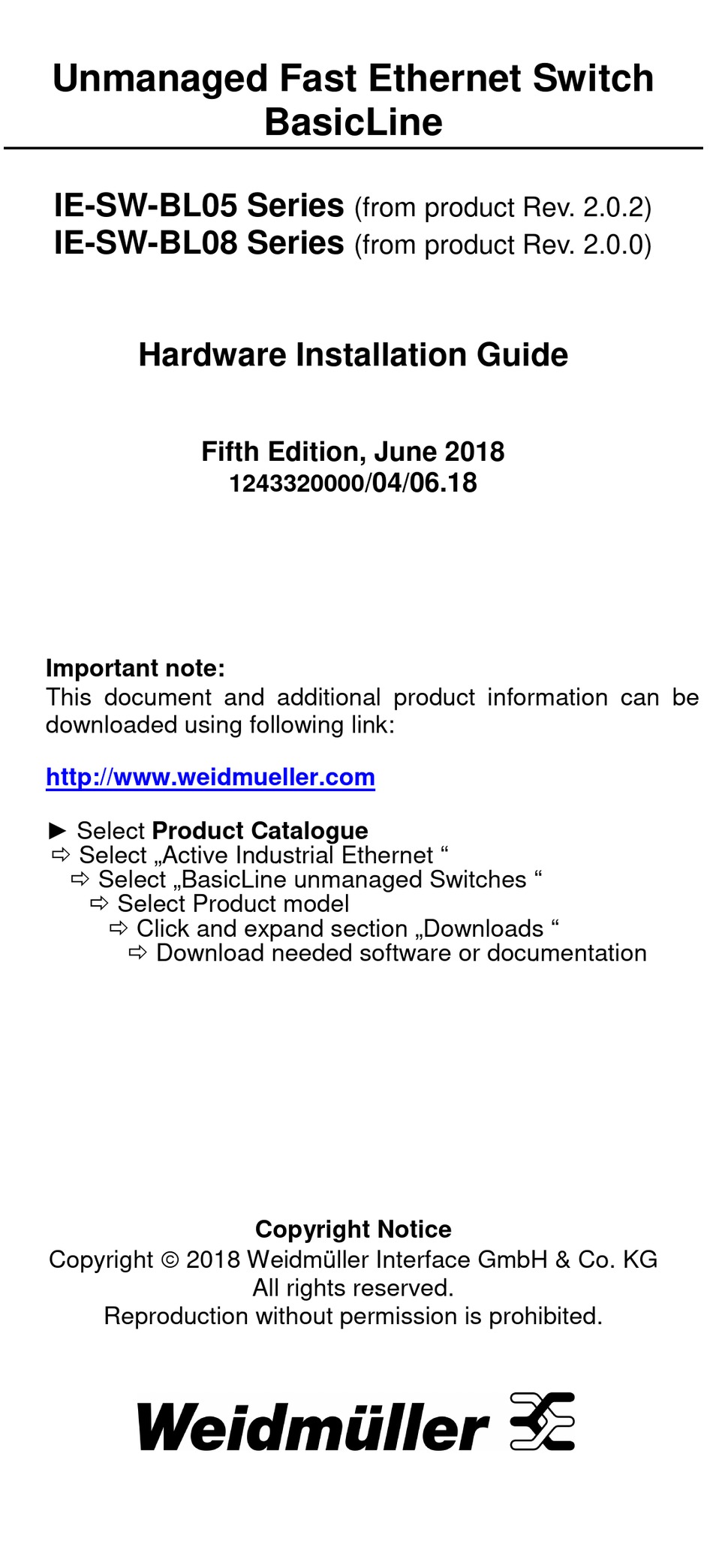

Unmanaged Fast Ethernet Switch BasicLine IE-SW-BL05 Series (from product Rev. 2.0.2) IE-SW-BL08 Series (from product Rev. 2.0.0) Hardware Installation Guide Fifth Edition, June 2018 /04/06.18 1243320000 Important note: This document and additional product information can be downloaded using following link: http://www.weidmueller.com ►... -
Page 2: Package Checklist
Overview The IE-SW-BL05/08 series of industrial Ethernet switches are entry-level industrial 5 and 8-port Ethernet switches that support IEEE 802.3, IEEE 802.3u, and IEEE 802.3x with 10/100M, full/half-duplex, and MDI/MDIX auto-sensing. The IE-SW-BL05/08 series provides 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs. - Page 3 Panel Layout of IE-SW-BL05(T)-5TX / IE-SW-BL08(T)-8TX Grounding screw Terminal block for power input P1/P2 Heat dissipation orifices DIP Switches Power input PWR1 LED Power input PWR2 LED 10/100BaseT(X) Port TP port’s 10/100 Mbps Article number 10. Screw hole for wall mounting kit 11.
- Page 4 Panel Layout of IE-SW-BL05(T)-4TX-1SC/1ST NOTE: The appearance of IE-SW-BL05-4TX-1SC is identical to IE-SW-BL05-4TX-1SCS. Grounding screw Terminal block for power input PWR1 / PWR2 Heat dissipation orifices DIP Switches Power input PWR1 LED Power input PWR2 LED 10/100BaseT(X) Port TP port’s 10/100 Mbps Article number 10.
- Page 5 Panel Layout of IE-SW-BL08(T)-7TX-1SC/1ST NOTE: The appearance of IE-SW-BL08-7TX-1SC is identical to IE-SW-BL08-7TX-1SCS. Grounding screw Terminal block for power input PWR1 / PWR2 DIP Switches Power input PWR1 Power input PWR2 10/100BaseT(X) Port TP port’s 10/100 Mbps LED Article number 100BaseFX Port FX port’s 100 Mbps 11.
- Page 6 Panel Layout of IE-SW-BL08(T)-6TX-2SC/2ST NOTE: The appearance of IE-SW-BL08-6TX-2SC is identical to IE-SW-BL08-6TX-2SCS. Grounding screw Terminal block for power input PWR1 / PWR2 DIP Switches Power input PWR1 Power input PWR2 10/100BaseT(X) Port TP port’s 10/100 Mbps LED Article number 100BaseFX Port 10.
-
Page 7: Mounting Dimensions
Mounting Dimensions - 7 -... -
Page 8: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-rail attachment plate should already be fixed to the back panel of the Ethernet Switch when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 9: Atex Information
STEP 3: Once the screws are fixed on the wall, insert the four screw heads through the large parts of the keyhole-shaped apertures, and then slide the switch downwards, as indicated. Tighten the four screws for added stability. ATEX Information 1. -
Page 10: Wiring Requirements
WARNING EXPLOSION HAZARD - Substitution of any component may impair suitability for Class 1, Division 2 Wiring Requirements WARNING Safety First! Turn the power off before disconnecting modules or wires. The proper power supply voltage is listed on the product label. -
Page 11: Wiring The Redundant Power Inputs
ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. Wiring the Redundant Power Inputs The top two contacts and the bottom two contacts of the 4-contact terminal block connector on the Ethernet Switch’s top panel are used for the Ethernet Switch’s two DC inputs. - Page 12 10/100Base T(x) RJ45 Pinouts MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45 Signal Signal RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 100BaseFX Ethernet Port Connection (Fiber) Remember to connect the Tx (transmit) port of device 1 to the Rx (receive) port of device 2, and the Rx (receive) port of device 1 to the Tx (transmit) port of device 2.
-
Page 13: Redundant Power Inputs
ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. Redundant Power Inputs Both power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source acts as a backup, and automatically supplies all of the Ethernet Switch’s power needs. -
Page 14: Auto Mdi/Mdi-X Connection
Auto MDI/MDI-X Connection The Auto MDI/MDI-X function allows connecting devices to an Ethernet Switch’s 10/100BaseT(X) port without paying attention to the type of Ethernet cable being used for the connection. This means that you can use either a straight-through cable or cross-over cable to connect devices to the Ethernet Switch. - Page 15 Optical Fiber 100Base FX Multi-mode Single-mode 50/125 µm Fiber Cable Type G.652 800 MHz*Km Typical Distance 4 km 5 km 40 km Typical (nm) 1300 1310 Wavelength TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 TX Range (dBm) -10 to -20...
- Page 16 Regulatory Approvals Safety UL 508 UL/cUL Class I, Division 2, Groups A, B, C, and D; Hazardous Location ATEX Zone 2, Ex nA nC IIC T4 Gc IE-SW-BL05 series: DNV, GL Maritime IE-SW-BL08 series: IEC 60945, Pending:DNV, GL FCC Part 15, CISPR (EN 55032) class A IEC 61000-4-2 ESD: Contact: 6 kV;...
