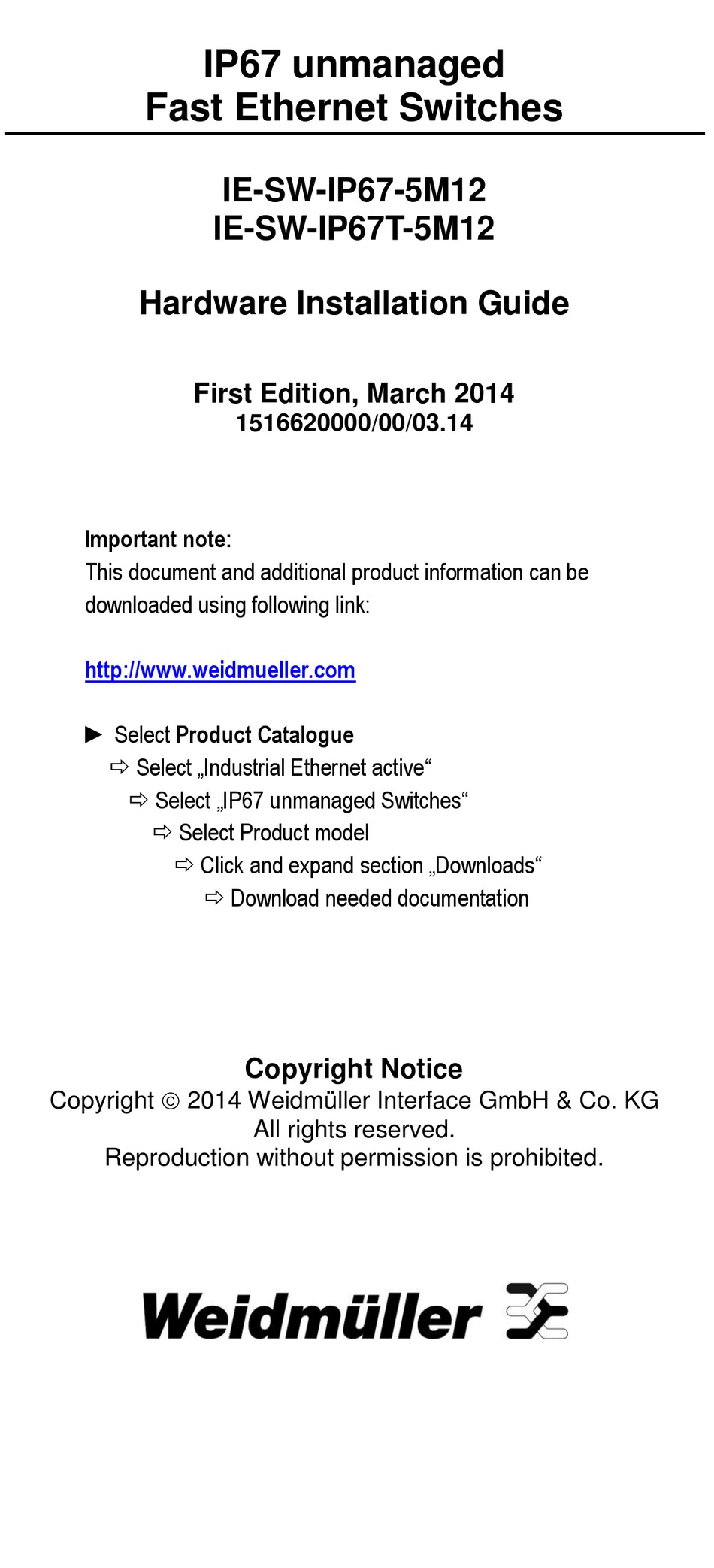

Fast Ethernet Switches
Hardware Installation Guide
Important note:
This document and additional product information can be
downloaded using following link:
http://www.weidmueller.com
► Select Product Catalogue
Select „Industrial Ethernet active"
Select „IP67 unmanaged Switches"
Select Product model
Click and expand section „Downloads"
Copyright
Reproduction without permission is prohibited.
IP67 unmanaged
IE-SW-IP67-5M12
IE-SW-IP67T-5M12
First Edition, March 2014
1516620000/00/03.14
Download needed documentation
Copyright Notice
2014 Weidmüller Interface GmbH & Co. KG
All rights reserved.
Advertisement
Table of Contents
Related Manuals for Weidmuller IE-SW-IP67-5M12
Summary of Contents for Weidmuller IE-SW-IP67-5M12
-
Page 1: Fast Ethernet Switches
IP67 unmanaged Fast Ethernet Switches IE-SW-IP67-5M12 IE-SW-IP67T-5M12 Hardware Installation Guide First Edition, March 2014 1516620000/00/03.14 Important note: This document and additional product information can be downloaded using following link: http://www.weidmueller.com ► Select Product Catalogue Select „Industrial Ethernet active“ Select „IP67 unmanaged Switches“... -
Page 2: Package Checklist
Overview The Weidmüller 5-port unmanaged IP67 Ethernet switch provides a hardened and cost-effective solution for your Ethernet connections. The Switch is IP67-rated to provide protection against shock and foreign particles. IP67-rated products have the following characteristics: (1) dust proof, (2) protection against the effects of temporary immersion in water. -
Page 3: Mounting Dimensions (Unit = Mm)
Panel Layout of IE-SW-IP67(T)-5M12 Front Panel View 1. M12 port’s 10/100 Mbps LED. 2. 10/100BaseT(X) port (4-pin female shielded M12 socket with D coding). 3. Port Label. 4. Power input (5-pin male shielded M12 socket with A coding). 5. Power input (PWR) LED. 6. -
Page 4: Panel/Wall Mounting
Panel/Wall Mounting To mount the IE-SW-IP67(T)-5M12 on the wall use the 3 screws included in the package. STEP 1: Make 3 screw holes on the wall based on the positions of the 3 screw holes on the switch shown in the mounting dimensions diagram. -
Page 5: Wiring Requirements
Wiring Requirements WARNING Turn the power off before disconnecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure that you are using the correct voltage. Do NOT use a voltage greater than what is specified on the product label. -
Page 6: 10/100Baset(X) Ethernet Port Connection
Grounding the IE-SW-IP67(T)-5M12 Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. Ethernet Switch ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. - Page 7 Pinouts for sockets on IE-SW-IP67(T)-5M12 TP Port -Pin 1: TD + -Pin 2: RD + -Pin 3: TD - -Pin 4: RD - Power input -Pin 1: Input V+ -Pin 2: Not assigned -Pin 3: Input V- -Pin 4: Not assigned -Pin 5: Function ground Pinouts for RJ45 (8-pin)
- Page 8 M12 (4-pin, M) to M12 (4-pin, M) Straight-Trough Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring...
-
Page 9: Led Indicators
LED Indicators Several LED indicators are located on the IE-SW-IP67(T)-5M12 front panel. The function of each LED is described in the table below. Color State Description Power is being supplied to the power input. AMBER Power is not being supplied to the power input. -
Page 10: Switching, Filtering, And Forwarding
Switching, Filtering, and Forwarding Each time a packet arrives at one of the switched ports, a decision is made to filter or forward the packet. Packets with source and destination addresses belonging to the same port segment will be filtered, constraining those packets to one port, and relieving the rest of the network from the need to process them. -
Page 11: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for Flow Control Processing Type Store and Forward Flow Control IEEE 802.3x flow control, back pressure flow control Interface M12 Ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection LED Indicators Power, LNK/ACT Power... - Page 12 MTBF (meantime between failures) Time 370,224 hrs Database Telcordia (Bellcore), GB 25°C WARRANTY Time Period 5 years Weidmüller gives a 5 year warranty on this product in accordance with the warranty terms as described in the general conditions of sale of the Weidmüller company which has sold the products to you.
