Ametek Surgex SA-20-AR User Manual

Ametek Surgex SA-20-AR User Manual

Axess-ready standalone surge elimination & power conditioning
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

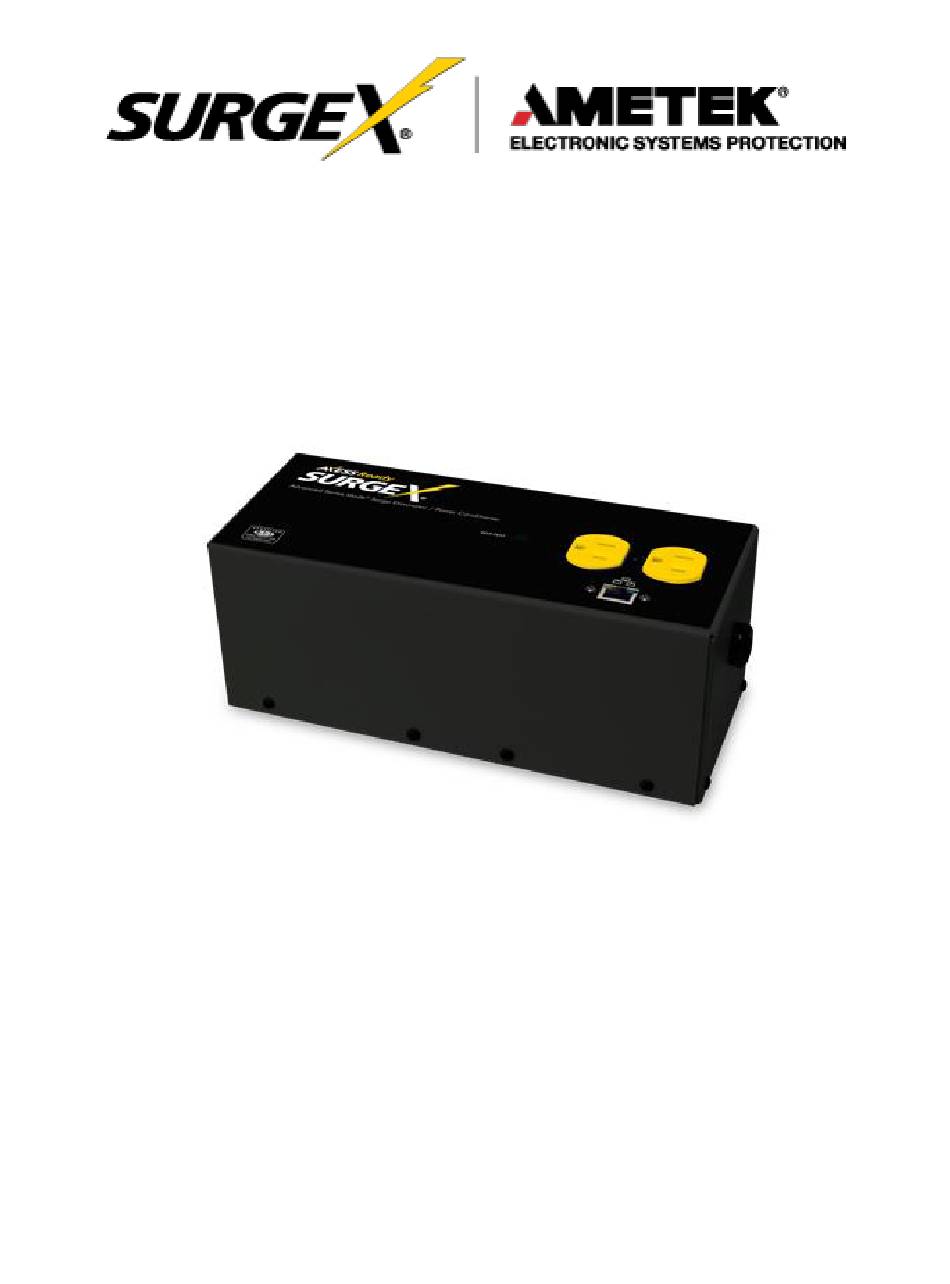

Axess-Ready Standalone
Surge Elimination & Power Conditioning
SA-20-AR
Firmware Version: 1.20.261
Software Version: 2.00.03
© 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | UM-SA-20-AR-Rev-C
© 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surgex SA-20-AR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ametek Surgex SA-20-AR

Summary of Contents for Ametek Surgex SA-20-AR

  • Page 1 Axess-Ready Standalone Surge Elimination & Power Conditioning SA-20-AR Firmware Version: 1.20.261 Software Version: 2.00.03 © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | UM-SA-20-AR-Rev-C © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 2: Table Of Contents

    VII. DXP PROTOCOL ..............................20 VERVIEW ............................ 20 ELLO ANDSHAKE ............................... 21 ACKET ..............................22 OMMANDS .............................. 22 ESCRIPTORS ..............................24 AYLOADS VIII. FIRMWARE UPGRADES IX. RESET BUTTON X. SPECIFICATIONS © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 3: Introduction

    Reboot crashed systems, or provide auto power-up or -down for environmental controls and notification systems. • The SA-20-AR utilizes 2 levels of password security, with only the administrative account having access to setup and configuration. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...
  • Page 4 • Network connection (RJ-45) • Output receptacles • Self-Test LED Located on the side panels are: • Input power plug: NEMA 5-20 • Reset button • System On LED © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 5: Installation

    NEMA 5-20R outlet. Do not plug the unit into a re-locatable power tap. III. LED INDICATORS SYSTEM ON The Axess Ready system is On, and the outlets are On. SELF-TEST The internal surge protection circuitry is fully functional. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 6: Initial Set-Up

    AR. The standard port for web browser accessibility is factory default Port 80. o Add: Manually add an AR by IP address. o Clear: Clear the list. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 7: Setting The Ip Address

    AR will provide a prompt to do so. All commands may be entered as required before rebooting. Manually specifying the IP address via CLI automatically sets the address as static. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...
  • Page 8 AR. Enter the administrator credentials (Factory Default User: admin, Password: admin), click on “Setup”, then click on “Network” and follow the directions in the Web Server/Network/Setup section of this manual. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 9: Web Server

    If an NTP time server is being used, the time of the last refresh will be displayed in the upper right corner, as well as a History log below the Power Status. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 10: Setup Pages

    Closing the web browser will not log the user out and may lock out web access. In this situation it will be necessary to access the AR via telnet and reboot the unit. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 11: Network

    • Gateway: Enter the Gateway in dotted decimal format. This field will be automatically set if using DHCP. • DNS: Enter the Domain Name Server address. This will be automatically set if using DHCP. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 12: Advanced Network

    Time Zone: Specify the time zone (-12 to +12) relative to GMT. o DST Enable: Enable or disable the use of Daylight Savings Time. o DST Start/Stop: Specify the start and stop times for DST. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 13: Autoping

    AutoPings must exceed their fail count to trigger the action. With OR logic, the action will be triggered if either AutoPing exceeds its fail count. With Single, only AutoPing 1 is used. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...
  • Page 14 Power Cycle - Once Upon triggering, AR will cycle power one time. It will not cycle again automatically until the ping response returns and is lost again. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 15: Schedule

    • Action: Set the action to be scheduled. On, Off, or Cycle. • Enable: Enables the event when checked. Uncheck to disable the event. • Clear: Deletes a schedule. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 16: Passwords

    • New Password: Enter the new password to be used. • Confirm Password: Enter the new password to be used again. Default credentials: Role Username (fixed) Password (user set) Administrator admin admin User user user © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 17: Command Line Interface (Cli) Protocol

    Returns the upgrade enable status. Disabled set upgrade enable < yes | no > Enables or disables the ability to upload new firmware. logout Terminates the telnet session. reboot Reboots the AR. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 18: Network Commands

    When set to 0 the DxP service is disabled. May not be disabled when Web and Telnet are both disabled. set timeout < 0-999 > Sets the automatic network timeout in minutes. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 19: Autoping Commands

    Fact Def set password < user | admin > < old > < new > < repeat > Sets the password of the User or Administrator. user | admin © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 20: Event Commands

    < 1-8 > action < on | off | cycle > Sets the action to be performed at the scheduled time. del event < 1-8 > Deletes the scheduled event. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 21: Dxp Protocol

    Example: Client Server → hello-000 ← 1234 (seq 1234) → Command (seq 1235) ← Response → Command (seq 1237) ← Response © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 22: Dxp Packet

    Payload The payload is determined by a combination of the command class and the descriptor. The payloads are described with the descriptor; see the Descriptors subsection for details. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 23: Commands

    All of the descriptors and their payloads are outlined by command class below. o eCmnd_set The descriptors for this command class will be product specific. o eCmnd_get The descriptors for this command class will be product specific. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...
  • Page 24 0 → Successful eKeepAlive_null This is the only valid descriptor that the keep alive 1 → Error command supports. It is defined as null, as it carries no payload. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 25: Payloads

    //the pulse width in seconds }TPulseRelay; Where relay is the number of the relay to be affected, state is the state to pulse, and pulseWidth is the time to pulse in seconds. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 26: Firmware Upgrades

    Reset to Factory Defaults. Hold until the “System On” LED is blinking, then release. 5 Second Push Hold while powering up Recovery Mode. Allows upload of new firmware to Factory Default IP address of 192.168.1.254. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...

  • Page 27: Specifications

    *1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41 CAUTION: Do not install this device if there is not at least 10 meters (30 feet) or more between the electrical outlet and the electrical service panel. © 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com...
