TED200C

2.3 Operating elements

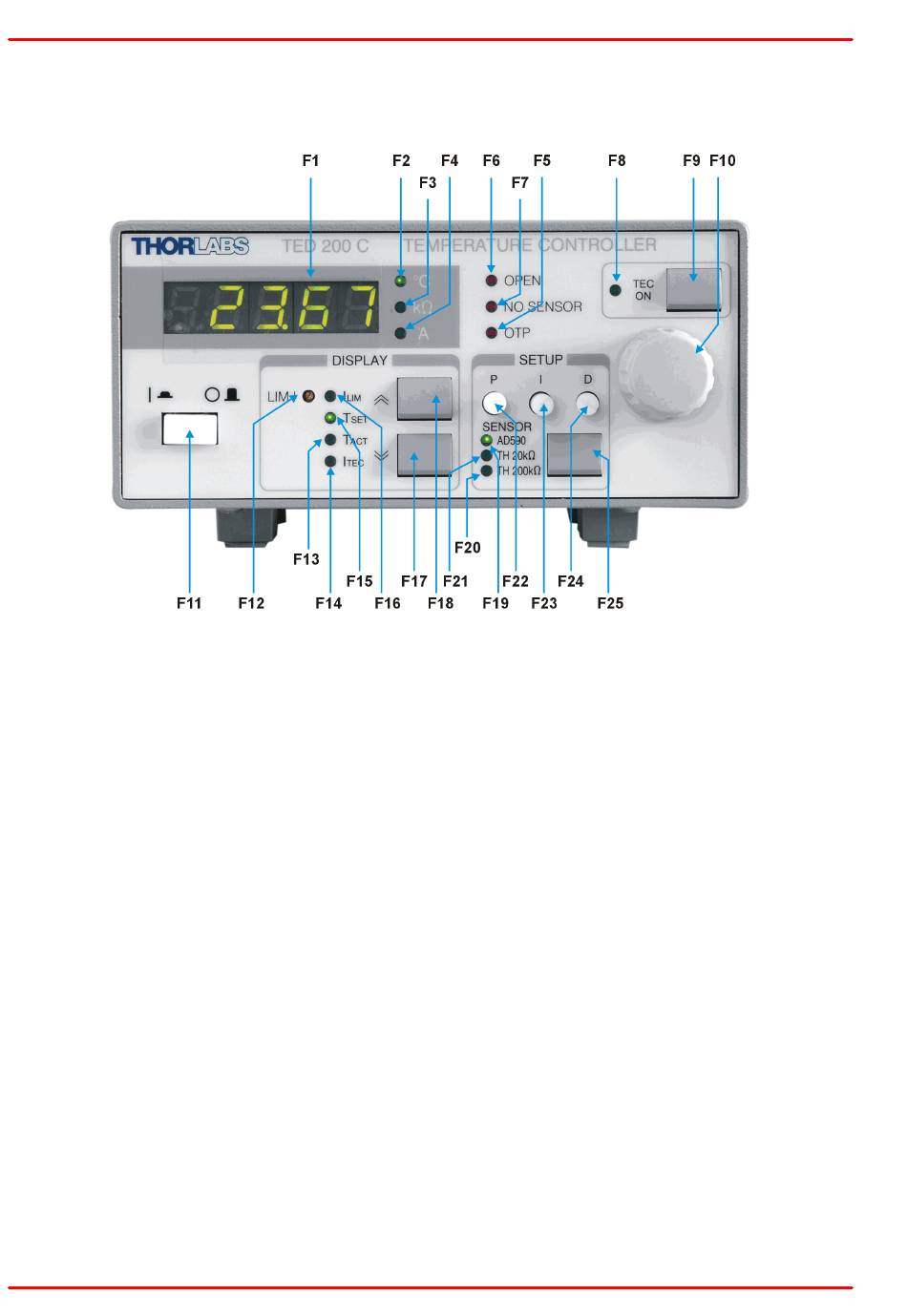

Front Panel
F1 -
F2 LED "°C"
F3 LED "kΩ"
F4 LED "A"
F5 LED "OTP"
F6 LED "OPEN"
F7 LED "NO SENSOR" Temperature sensor is wrong or not connected
F8 LED "TEC ON"
F9 Key "TEC ON"
F10 -
F11 -
F12 LIM I
F13 LED "T "
ACT
F14 LED "I "
TEC
F15 LED "T "
SET
F16 LED "I "
LIM
F17 Key "DOWN"
F18 Key "UP"
F19 LED "AD590"
F20 LED "TH 200kW"
F21 LED " TH 20kW"
F22 P
F23 I
F24 D
F25 Key "SENSOR"
8
5-digit LED display
Temperature display in C
Resistance display in k
Current display in A
Over temperature protection is active
TEC element is not connected or too high resistance
TEC output is switched on
On / Off switch for the TEC output
Knob for adjusting the set temperature / resistance
Line switch (ON / OFF)
Potentiometer for setting the TEC current limit
Display shows the actual temperature / resistance
Display shows the TEC current
Display shows the set temperature / resistance
Display shows the current limit
Select the parameter to be displayed
Select the parameter to be displayed
Selected sensor is AD 590, AD 592, LM 135 or LM 335
Selected sensor is thermistor in the 200 kW range
Selected sensor is thermistor in the 20 kW range
Potentiometer for setting P- (gain) share of control loop
Potentiometer for setting I- (integral) share of control loop
Potentiometer for setting D- (derivative) share of control loop
Select sensor / disable I-share (press for more than 1 sec.)
