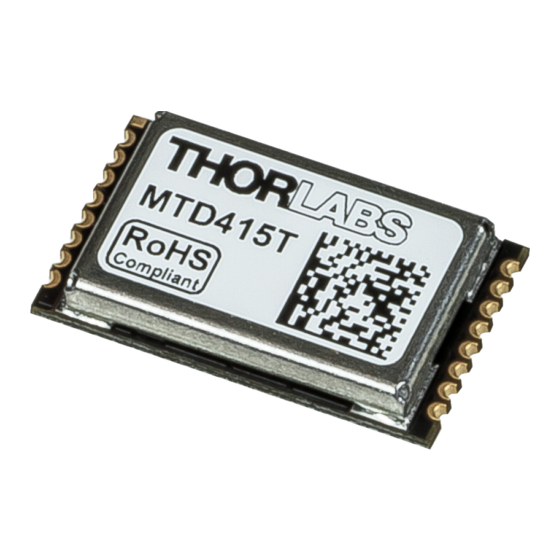

Miniature Temperature Controller MTD415T
Features
·
Small, safe and very high accuracy complete single-module controller
·
High speed, ultra stable digital PID Loop
·
Up to ± 1.5 A TEC current
·
Very low output current noise
·
Very small footprint (21.0 x 12.4 mm)
·
Circuit Height 3.1 mm
· W
Supports 10 k
·
Single power supply operation
Applications
·
Active cooling and temperature stabilization for a wide range of laser modules and diodes
·
WDM, DWDM Laser-Diode Temperature Control
·
EDFA Optical Amplifiers
·
Temperature stabilization of photo detectors and photodiodes
·
ATE

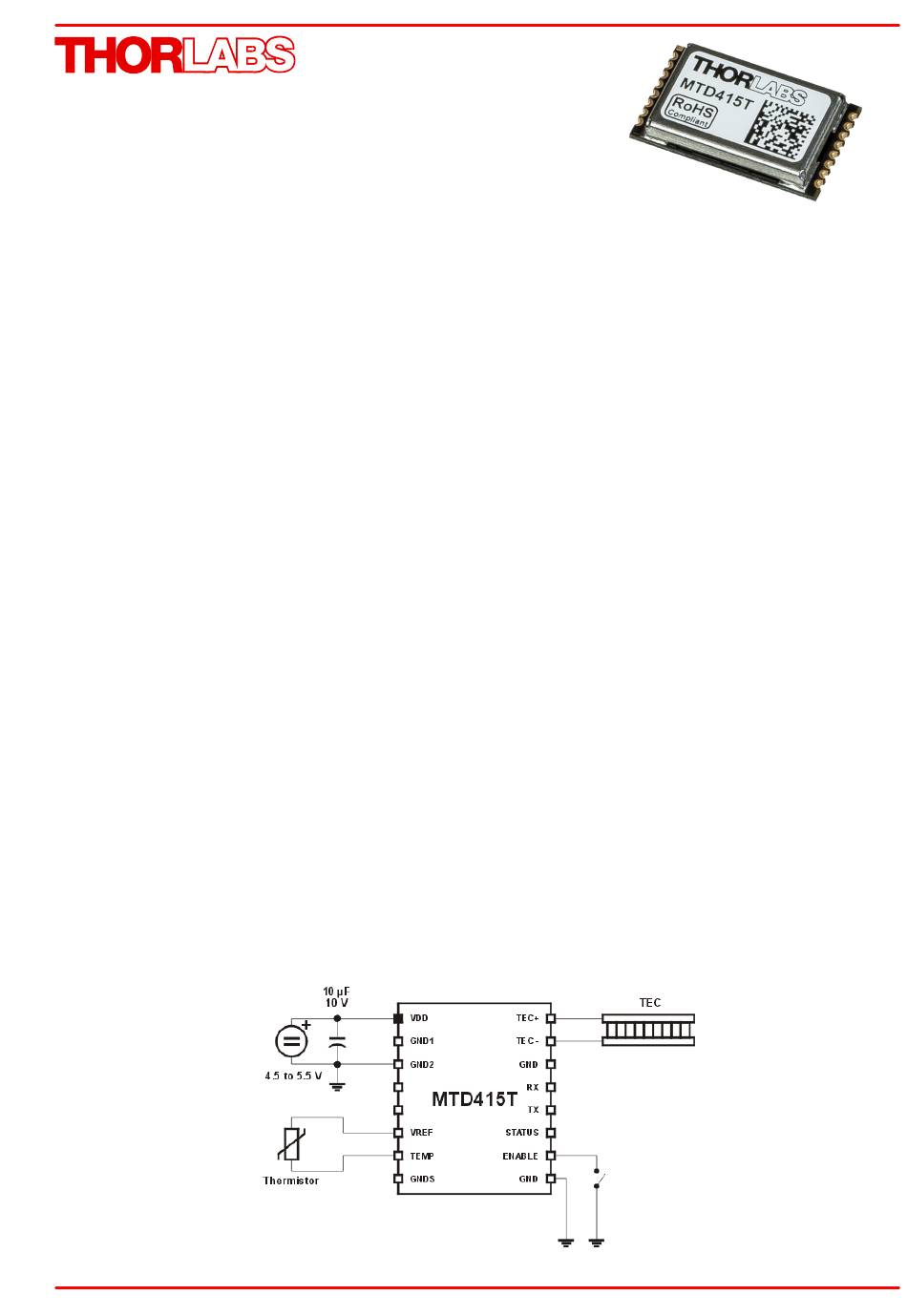

Short Description and Typical Application Diagram
The MTD415T is a compact and highly integrated temperature controller optimized for use in
high performance thermoelectric temperature control applications.
The on-chip power stage and the thermal control loop circuitry minimize external components
while maintaining high efficiency.
The output current is directly controlled to eliminate current surges. An adjustable TEC current
limit provides the highest level of TEC protection.
The MTD415T is operated from a single power supply and provides a bipolar ±1.5 A output by
connecting the TEC to the output of a bipolar power stage. True bipolar operation ensures
temperature control without "dead zones" or other nonlinearities at low TEC current values.
The digital control interface allows quick access to all system parameters as well as to digital
measurement data, this way enabling a simple integration into different systems.
thermistor temperature sensor
MTD415T Data Sheet Rev. 1.0
