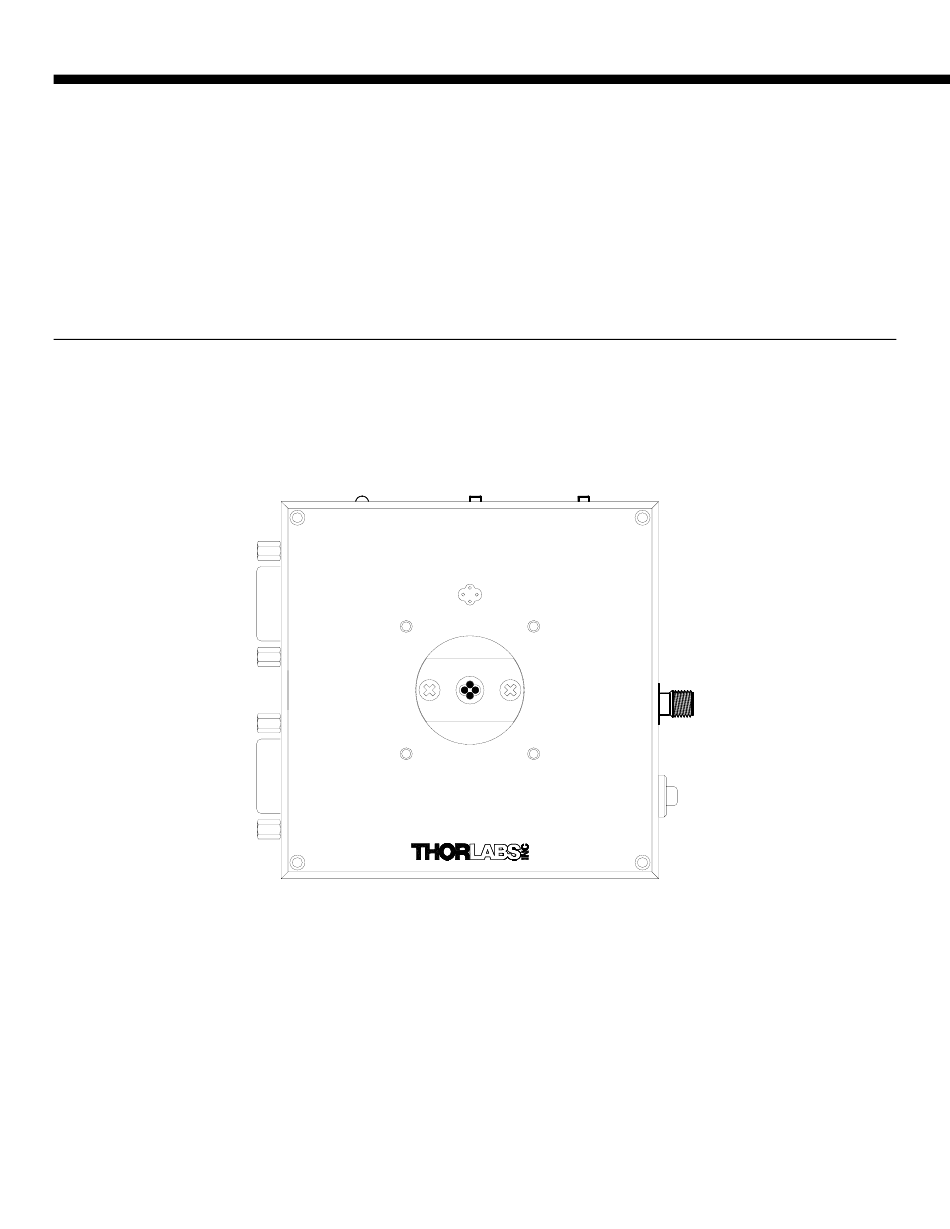

  • Page 1 TCLDM9 5.6mm / 9mm Laser Diode Mount Operating Manual TCLDM9 THORLABS, Inc. Ph: (973) 579-7227 435 Route 206N Fax: (973) 383-8406 Newton, NJ 07860 USA www.thorlabs.com 1981-D03 REV. H 1/23/06...
  • Page 2: Table Of Contents

    Laser Installation: ................................4 Laser Controller Connection:............................... 5 TEC Controller Connection:..............................6 Mounting other Accessories: ............................... 6 Mounting ThorLabs Fiber Coupled Pigtailed Lasers: ......................6 The TEC Lockout and GROUND Jumpers:......................... 7 Making the Safety Interlock Connections: ........................... 8 Operation: ....................................8 RF Modulation: ..................................
  • Page 3: Description

    The TCLDM9 was designed with features that allow it to be easily incorporated into complex systems. The front of the TCLDM9 has a 1.035”-40 thread to accept a wide variety of Thorlabs SM1 1” optics mounts and accessories. Also standard with the mount are 4-40 tapped holes on 30mm centers for mounting any number of Thorlabs cage assembly products.
  • Page 4: Specifications

    Specifications: Table 1 - TCLDM9 Specifications Laser Specs TEC Specs Lasers Supported: 5.6mm & 9mm Max TEC Current: Max. Laser Current: 2 Amps Max TEC Voltage : Laser Pin All LD packages, switch TEC Heating / Configurations: selectable Cooling Capacity:...
  • Page 5: Setup

    Special note for 4-pin laser diodes: The TCLDM9 also supports 4-pin laser diodes. Insert the laser into the 4-pin socket and note which laser pin is in the 3 o’clock position (laser anode or cathode). Also note which photodiode pin is in the 9 o’clock position (anode or cathode).
  • Page 6: Laser Controller Connection

    • The TCLDM9 is best used with Thorlabs LDC Series Laser Controllers. The LDC series drivers are shipped with a mating DB9 cable that plugs directly into the controller and laser head. Using the cable supplied with the LDC, the controller cannot be connected incorrectly.
  • Page 7: Tec Controller Connection

    Mounting ThorLabs Fiber Coupled Pigtailed Lasers: Use the Pigtail Adapter clamp to hold the pigtail housing onto the TCLDM9 cold-plate. Referring to Fig. 4, first install the pigtailed laser into the TCLDM9 socket, observing the proper polarity of the laser to the socket (the pigtail’s pin-outs are provided with the pigtail data sheet).
  • Page 8: The Tec Lockout And Ground Jumpers

    Pigtail Flange Screws Adapter Fig. 4B Fig. 4C Fig. 4A Figure 4 - Installing Fiber Pigtailed Laser The TEC Lockout and GROUND Jumpers: Two jumpers, JMP1 and JMP2, are located under the cover on the main PCB assembly. JMP1 allows you to enable or bypass the TEC Lockout feature.
  • Page 9: Making The Safety Interlock Connections

    RF Modulation: The TCLDM9 has an RF input for modulating the laser with an external RF source up to 500 MHz. This is a 50Ω input that is AC-coupled directly to the laser through a Bias-Tee network. To calculate the desired RF power to modulate the laser determine the amount of modulating current needed from the laser manufacturer’s data sheets and use the following...
  • Page 10: Status And Interlocks

    Maintaining the TCLDM9: There are no serviceable parts in the TCLDM9. The housing may be cleaned by wiping with a soft damp cloth. If you suspect a problem with your TCLDM9 please call Thorlabs and an engineer will be happy to assist you.
  • Page 11: Thermistor Data

    Thermistor Data: Thermistor Resistance vs. Temperature 35000 30000 25000 20000 15000 10000 5000 Degrees C Figure 7 - Thermistor Curve and Data Resistance (Ohms) Degrees C 15895 15153 14451 13785 13155 12558 11991 11454 10944 10460 10000 9563 9149 8755 8380 8023 7684...
  • Page 12: Troubleshooting

    2) Laser wavelength or power is unstable even though the TEC controller shows a stable temperature… Make sure your laser diode is fully inserted into the TCLDM9 laser socket and its body is in full contact with the copper cold plate.
  • Page 13 Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
