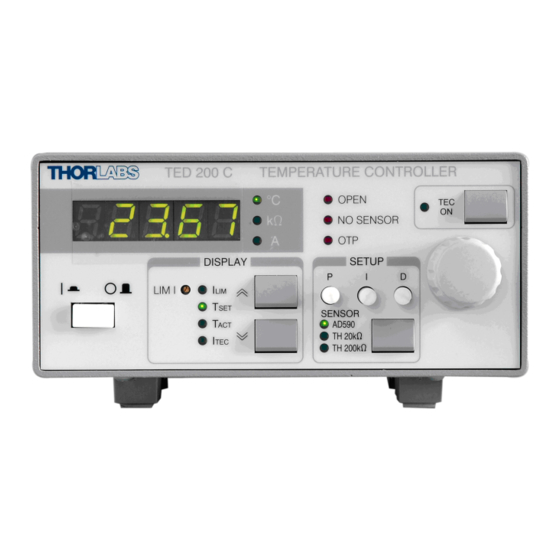

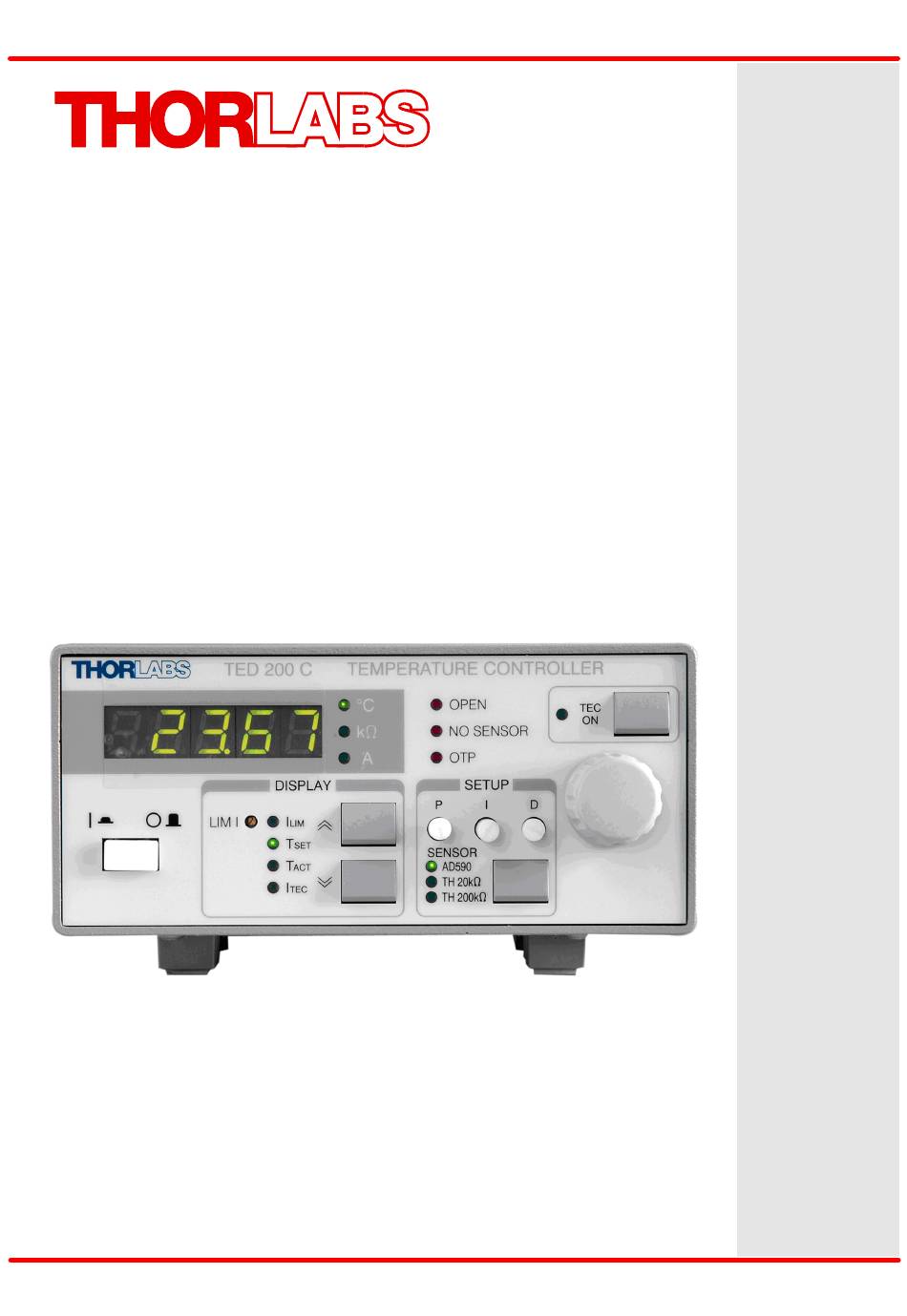

- Page 1 Thermoelectric Temperature Controller TED200C Operation Manual 2015...
- Page 2 Version: Date: 02-Jul-2015 Copyright © 2015 Thorlabs...
-
Page 3: Table Of Contents
4 Maintenance and Service 4.1 Line Voltage Setting 4.2 Replacing Mains Fuses 4.3 Troubleshooting 5 Appendix 5.1 Technical Data 5.2 Declaration of Conformity 5.3 Warranty 5.4 Exclusion of Reliability and Copyright 5.5 Thorlabs 'End of Life' Policy (WEEE) 5.6 Thorlabs Worldwide Contacts... -
Page 4: Foreword
Paragraphs preceeded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read these advices carefully! © 2015 Thorlabs... -
Page 5: General Information
· laser diode's wavelength tuning by regulating the temperature · modulation of wavelength by tuning the temperature The TED200C is easy to operate via the operating elements on the front panel. Operating parameters are shown on a 5-digit LED display. UP-DOWN keys allow to select the parameter to be displayed. -
Page 6: Protection Of The Tec Element
If necessary, ask for a replacement package. Prior to apply power to the TED200C controller, make sure that the protective conductor of the 3 conductor mains power cord is correctly connected to the protective earth contact of the... - Page 7 · Consult the dealer or an experienced radio /T.V. technician for help. Thorlabs is not responsible for any radio television interference caused by modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Thorlabs.
-
Page 8: Ordering Codes And Accessories
LM135 and LM335) as temperature sensor, 5-digit LED-display Shielded cable: CAB420-15 Cable to connect the temperature controller TED200C to a Thorlabs Laser Diode Mount. Note The cable should not be manipulated as it serves multiple devices and therefore does not have the standard pin assignment as described for TED200C. -
Page 9: Getting Started
3. 1 operation manual 4. 1 connection cable CAB420-15 2.2 Preparation Prior to operate a TED200C controller, check if the set line voltage matches with your local power supply and if the appropriate fuses are inserted. (See sections Line Voltage Setting Replacing the Mains Fuses Connect the unit to the power line using the supplied cable. -
Page 10: Operating Elements
Potentiometer for setting P- (gain) share of control loop Potentiometer for setting I- (integral) share of control loop Potentiometer for setting D- (derivative) share of control loop Key “SENSOR” Select sensor / disable I-share (press for more than 1 sec.) © 2015 Thorlabs... -
Page 11: First Operation
By using F17 and F18 keys, the displayed measurement value can be selected. A TED200C controller is immediately ready to use after turning on. The rated accuracy is reached, however, after a warming-up time of approx. 10 minutes. -
Page 12: Operating Instruction
TED200C. If a Thorlabs laser mount TCLDM9 or LDM21 is used, in addition the polarity of laser diode and photodiode must be set using the two slide switches at the laser mount. Please refer to the individual operation manual of the laser diode mount. -
Page 13: Connecting The Tec Element
· Switch the display to "T " and set the desired set temperature using the tuning knob. · By pressing the key "ON" switch on the TED200C output current. The LED "ON" (F8) lights up. · Switch the LED display to "T ". -
Page 14: Connecting A Temperature Sensor
. The polarity is not relevant, so far the thermistor is floating. If one pin of the thermistor is grounded (for example in a laser module), this pin has to be connected to pin3. If the TED200C is operated with a thermistor temperature sensor, the "T " and "T "... - Page 15 A LM135/LM335 is connected to pin 10 (+), pin 11 (also +) and pin 8 (A ) of the 15-pin D-SUB jack "TE OUTPUT" (R5) at the rear of the unit. The accuracy of the displayed temperature depends on the tolerance of the used transducer. © 2015 Thorlabs...
-
Page 16: Analog Temperature Tuning Input
" can be tuned by applying a voltage to the input "TUNE IN" (R1) at the rear panel of the TED200C. The temperature set value is proportional to the sum of the signal at input "TUNE IN" (R1) and of the value set with the adjustment knob (F10). -
Page 17: Operation
3 Operating Instruction 3.2 Operation · Connect the jack "TE OUTPUT" (R5) at the rear panel of the TED200C to the input "TEC DRIVER" of the Thorlabs Laser Diode Mount using the supplied cable CAB420-15. If a different laser diode fixtures is used, the output jack “TE OUTPUT” (R5) must be connected... -
Page 18: Adjusting Temperature Control Loop
All Thorlabs’ temperature controllers provide a PID control loop whose shares (P, I and D share) must be matched with the thermal load of the device under test. -
Page 19: Over-Temperature Protection
3.2.3 Over-Temperature Protection The TED200C controllers come with an internal over-temperature protection. If the internal heat sink is overheated, the output of the controller is disabled automatically. The LED "OTP" (F5) lights up and a short beep is heard. -
Page 20: Maintenance And Service
A mild 75% Isopropyl Alcohol solution can be used for more efficient cleaning. TED200C Controllers do not contain any modules and/or components that could be repaired by the user himself. If a malfunction occurs, please contact Thorlabs for return instructions. -
Page 21: Replacing Mains Fuses
Attention To avoid risk of fire only the appropriate fuses for the corresponding line voltage must be used 1. Turn off the TED200C and disconnect the mains cable. 2. The fuse holder (R10) is located below the 3-pole power connector of the mains jack (R8). Release the fuse holder by pressing its plastic retainers with the aid of a small screwdriver. -
Page 22: Troubleshooting
§ Set the P share, D share and I share appropriate to the thermal load q The unit switches on, but display shows error message (e.g., “Err06”) o This indicates a malfunction of the TED200C. In such case, the controller needs to be returned to Thorlabs for maintenance. Please contact... -
Page 23: Appendix
20 kW/V ± 5 % Transmission Coefficient IC-Sensors 20 °C/V ± 5% Temperature Monitor Output Load Resistance >10 kW Transmission Coefficient Thermistor 500 mV/kW ± 5 % 50 mV/kW ± 5 % Transmission Coefficient IC-Sensors 50 mV/°C ± 5 % © 2015 Thorlabs... - Page 24 E.g. for a typical thermistor at a set point of 10kW (25°C), a 0.5W stability translates into about 1mK temperature stability. At a set point of 5kW (38°C), the stability is about 2mK. All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2015 Thorlabs...
-
Page 25: Declaration Of Conformity
5 Appendix 5.2 Declaration of Conformity © 2015 Thorlabs... -
Page 26: Warranty
Thorlabs warrants material and production of the TED200C for a period of 24 months starting with the date of shipment. During this warranty period Thorlabs will see to defaults by repair or by exchange if these are entitled to warranty. -
Page 27: Exclusion Of Reliability And Copyright
User Manual. Should you require further information on this product, or encounter specific problems that are not discussed in sufficient detail in the User Manual, please contact your local Thorlabs dealer or system installer. -
Page 28: Thorlabs 'End Of Life' Policy (Weee)
Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 29: Thorlabs Worldwide Contacts
Email: europe@thorlabs.com Email: scandinavia@thorlabs.com France Brazil Thorlabs SAS Thorlabs Vendas de Fotônicos Ltda. 109, rue des Côtes Rua Riachuelo, 171 78600 Maisons-Laffitte São Carlos, SP 13560-110 France Brazil Tel: +33-970 444 844 Tel: +55-16-3413 7062 Fax: +33-811 38 17 48 Fax: +55-16-3413 7064 www.thorlabs.com...
