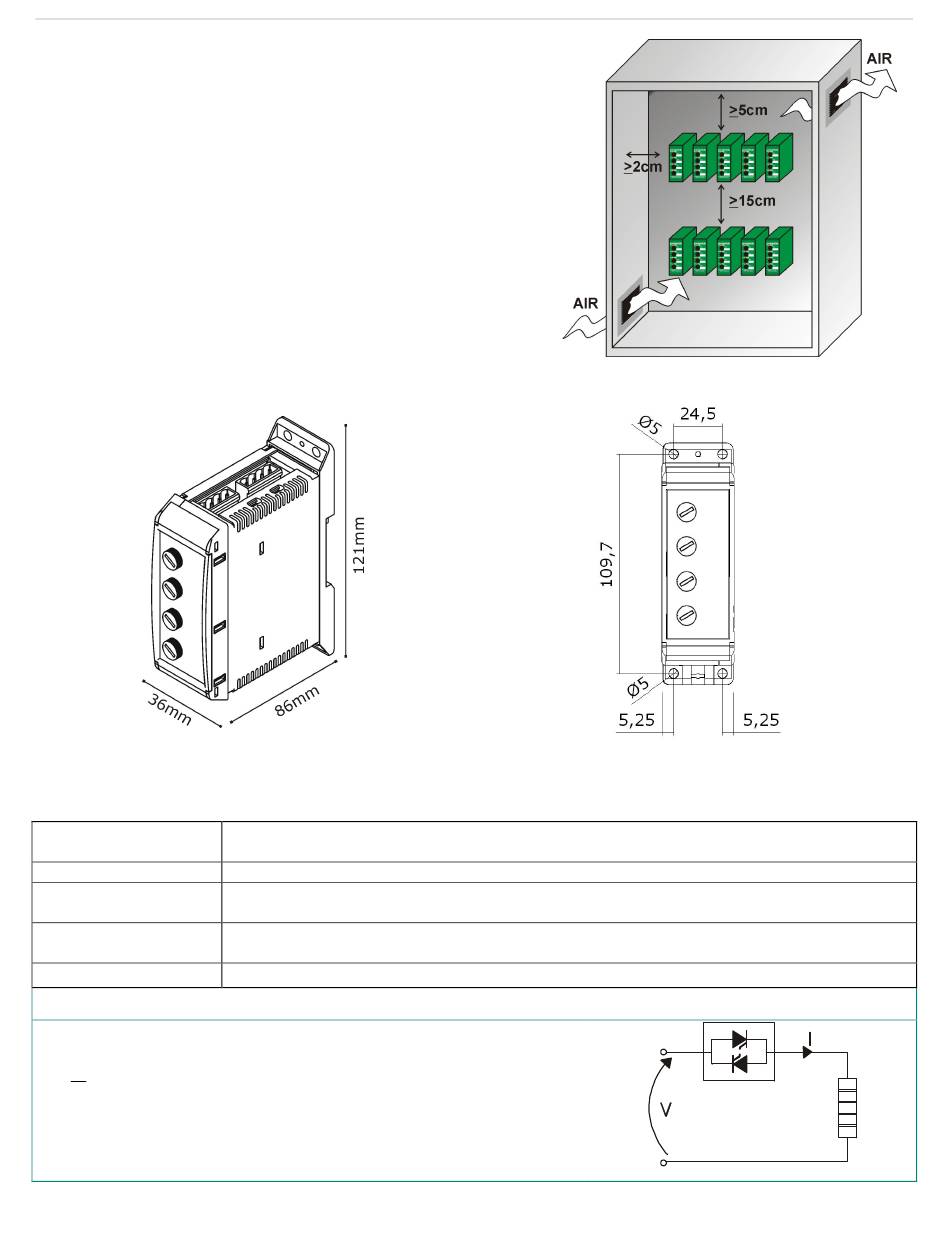

Installation
Before to install the thyristor unit examine for damages or
deficiencies. If any is found, notify the carrier immediately.
Check that the product features shown on unit cover
corresponds to that ordered.
The thyristor unit should be always mounted in vertical
position to improve air cooling on heat-sink.
Maintain minimum distances in vertical and in horizontal as
represented.
Don't install in proximity of hot elements and near units
generating electromagnetic interferences.
When more units are mounted in the same cabinet provide
air circulation as represented.
Sometimes it is necessary to provide a fan to have better air
circulation.
Dimensions and Fixing holes

Environmental installation conditions

Ambient temperature
Stocking temperature -25°C to 70°C
Installation place
Altitude
Humidity

Basic Connections

Wiring with resistive load
P
I =
V
V = Nominal load voltage
I = Nominal load current
P = Nominal load power
0-40°C at nominal current.
Over 40°C use the Derating Curve.
Don't install at direct sun light, where there are conductive dust, corrosive gas,
vibration or water and also in salty environmental.
Up to 1000 meter over sea level. For higher altitude reduce the nominal current of
2% for each 100m over 1000m
From 5 to 95% without condense and ice
REVO 4x3,5A
Weight: 0,3Kg
