Supply voltage divider connected to pin ADC0 to measure the supply voltage against the internal 1.1V
reference
●
Includes the footprint for the following TWI sensor devices:
i.
BMP180 air pressure sensor
ii.
HTU20D / SHT20 humidity sensor
●
Includes the connector X2 to for connecting the PCB to an Xplained Pro board

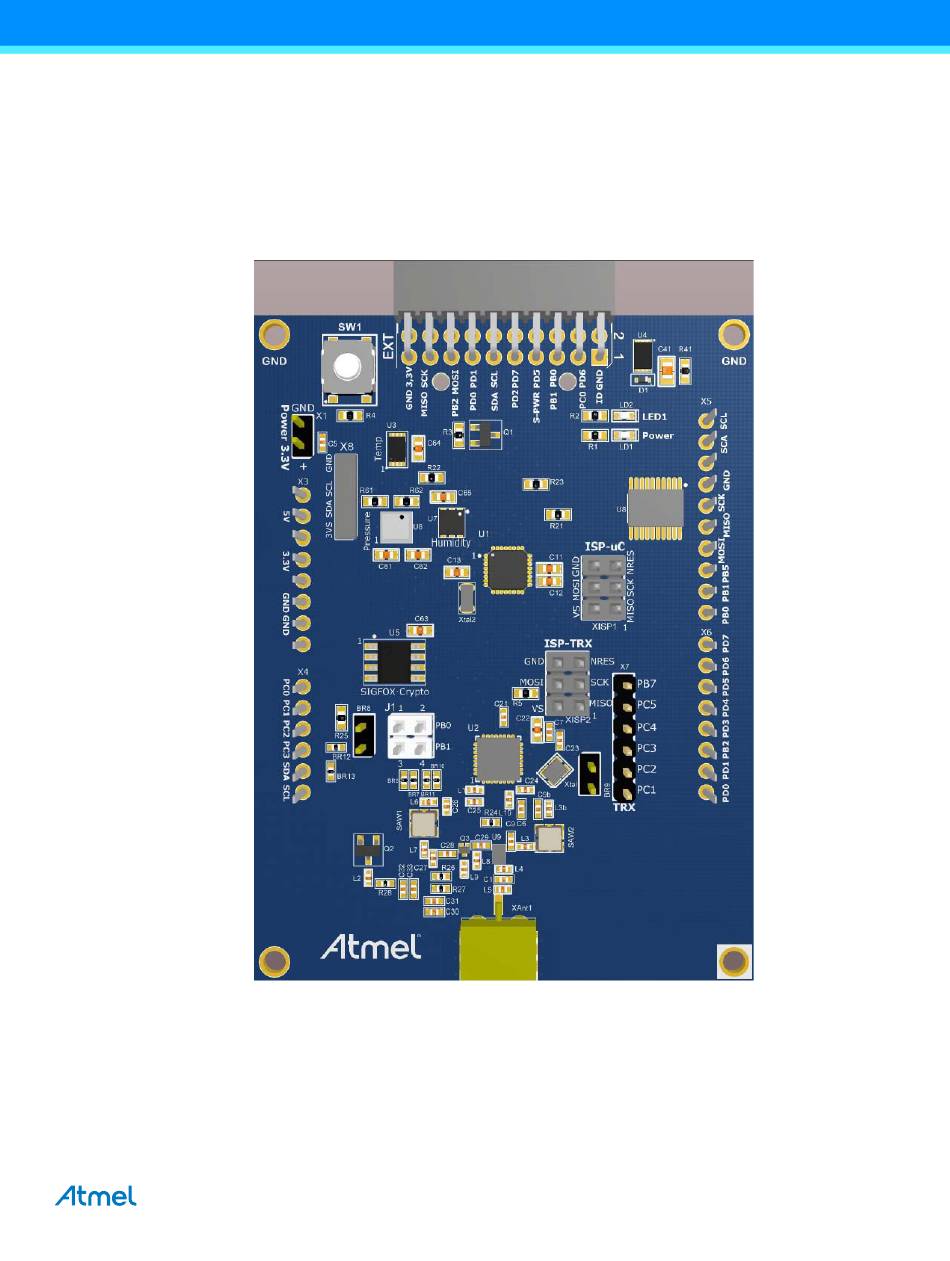

Figure 5-1. ATAB0101A Board
ATAN0104 [APPLICATION NOTE]
9373E–AUTO–11/15
9
