2.

Getting Started with the ATA8520-EK2-E and -EK3-E Extension Boards

Figure 2-1 and Figure 2-4
●
A single PCB ATAB0101A with
● An Atmel
● An AT30TS75A temperature sensor with TWI
●
An 868MHz monopole antenna for connection to the SMA connector
The kit is available in two versions depending on the connector type of the additionally required development kit:
●
An ATA8520-EK2-E Xplained mini
UNO kit
●
An ATA8520-EK3-E Xplained Pro

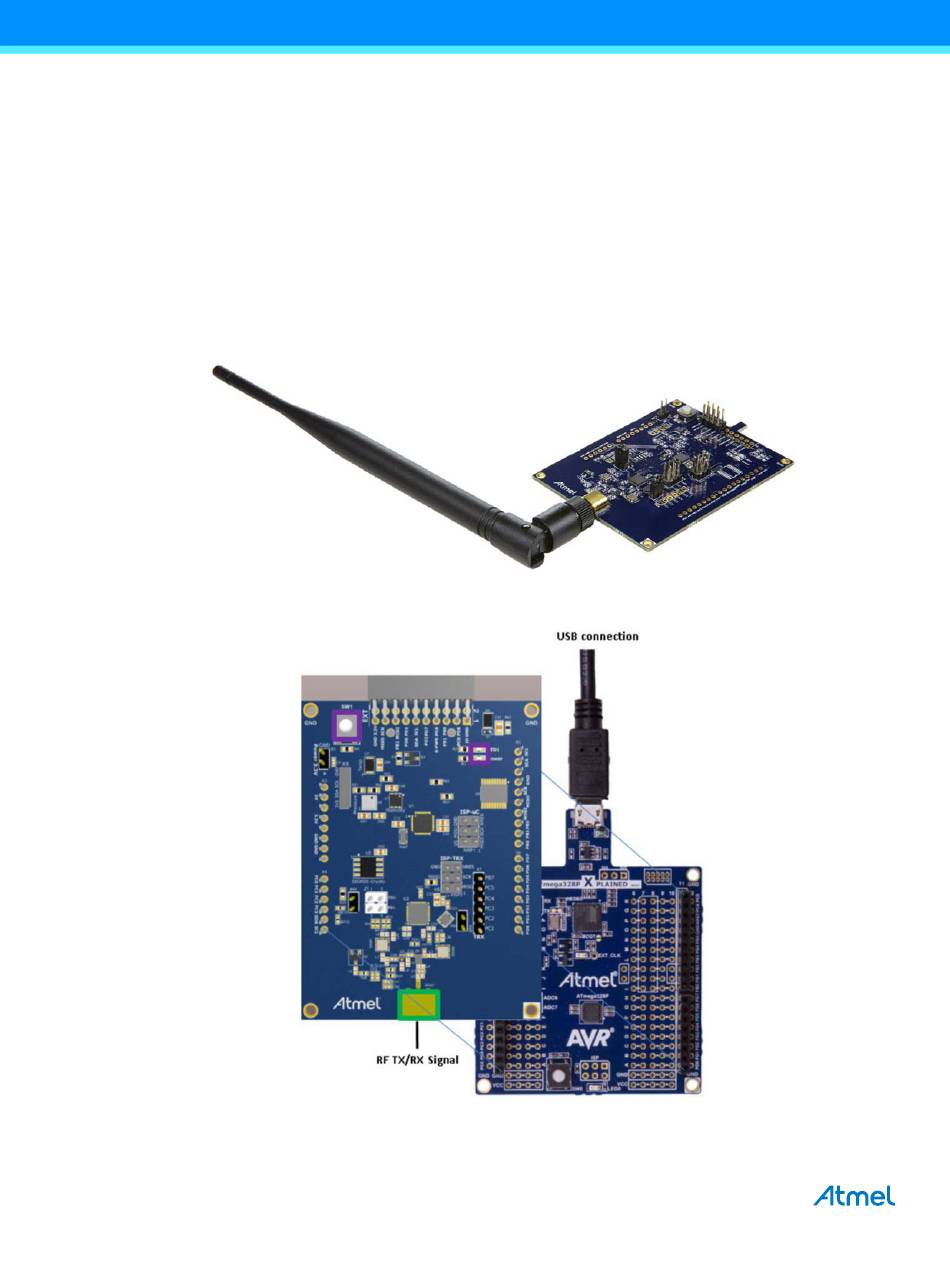

Figure 2-1. ATA8520-EK2-E Xplained Mini Extension Board with Attached External Antenna
Figure 2-2. ATA8520-EK2-E Xplained Mini Extension Board Mounted on Xplained Mini
4 ATAN0104 [APPLICATION NOTE]
9373E–AUTO–11/15
show the components which are required for the evaluation kit. The kit includes
® ™
ATA8520D SIGFOX transceiver device
(Figure 2-1): to be used with an additional Xplained mini
(Figure 2-3): to be used with an additional Xplained Pro kit
(Figure 2-2) or Arduino
(Figure 2-4)
