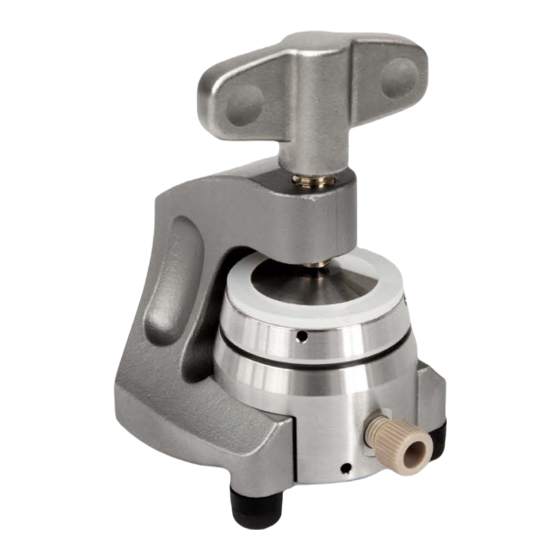

EL-CELL ECC-Std User Manual

EL-CELL ECC-Std User Manual

Electrochemical test cell

Advertisement

Quick Links

User Manual
Release 3.81
ECC-Std
Electrochemical test cell
© 2020 EL-Cell GmbH

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECC-Std and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EL-CELL ECC-Std

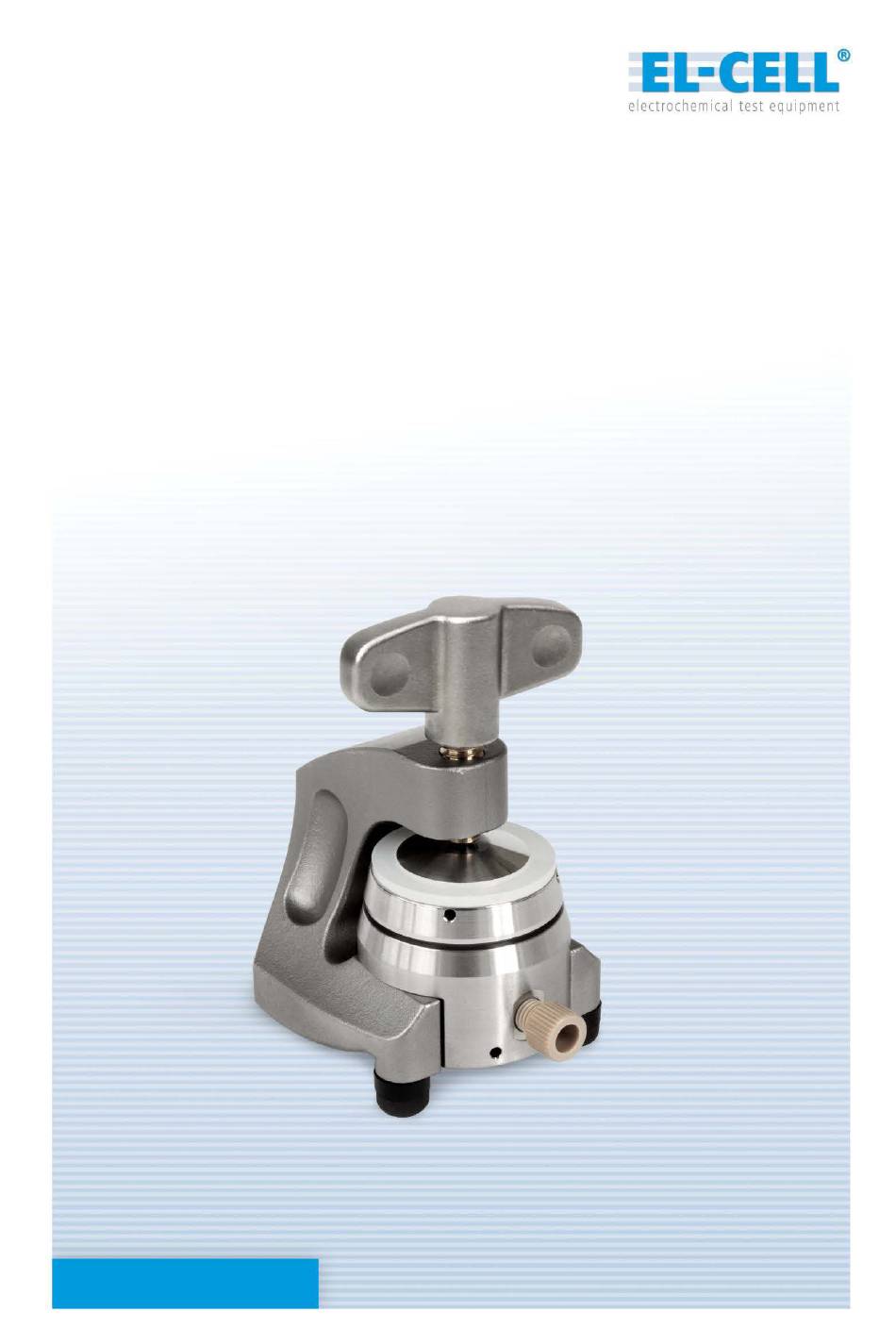

  • Page 1 User Manual Release 3.81 ECC-Std Electrochemical test cell © 2020 EL-Cell GmbH...
  • Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-Cell GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -Cell GmbH does not assume any liability arising from the use or application of this product.
  • Page 3: Table Of Contents

    User Manual ECC-Std Content 1 Product description........................... 4 2 ECC-Std assembly ............................6 3 Disassembly and Cleaning ........................9 4 Unpacking ..............................10 5 Technical data ............................10 5 Spare parts and consumables .......................11 6 Technical support ............................12 7 Warranty ..............................12 Page 3 of 12...
  • Page 4: Product Description

    ECC-Std 1 Product description The ECC-Std electrochemical cell is a standard test cell for the characterization of lithium ion battery systems as well as other aprotic chemistries. With the ECC cell design we have adapted the advantages of the industry’s standard button (coin) cell whi le avoiding its serious shortcomings for everyday lab usage.
  • Page 5 User Manual ECC-Std Features High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity  Reliable sealing with PE seals and 4-fold cutting rings  Easy and reliable electrolyte filling  Fast assembly and dismantling, and easy cleaning of cell components ...
  • Page 6: Ecc-Std Assembly

    ECC-Std 2 ECC-Std assembly The ECC-Std electrochemical cell may be assembled either with thick glass fiber or with thin technical separator (such as Celgard 2325). Hereafter the two modes are referred to as AAA mode (with the glass fiber separator and and the two adjacent electrodes having the same 18 mm diameter) or ABA mode (with the separator being oversized compared to the two ad jacent electrodes).
  • Page 7 User Manual ECC-Std 2.1 Safety precautions Use proper safety precautions when using hazardous electrode materials and electrolytes. Wear protective glasses and gloves to protect you against electrolyte that may accidentally spill out during disassembly. Upon cell disassembly, dispose all materials properly. Metallic lithium and some insertion compounds may decompose heavi ly in contact with water and other solvents, and can cause fire.
  • Page 8 User Manual ECC-Std 2.3 Assembly Steps for ABA full cell mode This procedure is recommended for standard Li-ion battery materials in combination with thin technical separators like Celgard 2325 (25 µm thick). In the ABA assembly mode the two electrodes are both 18 mm, and the separator is 24 mm in diameter in order to prevent a short circuit along the edge of the separator.
  • Page 9: Disassembly And Cleaning

    User Manual ECC-Std 10. Again, grab the plunger/sleeve assembly and support the plunger with your fingert ip. Then push the cell base (with the anode and separator located inside) over the assembly, press onto the plunger, and turn the cell into the upright position.
  • Page 10: Unpacking

    Contact the factory if anything is missing or damaged. NOTE: Damaged shipments must remain with the original packaging for freight company i nspection. List of Components ECC-Std test cell PE-Seal (10 pcs) ECC1-00-0053-A/X Sleeve Removing Tool ECC1-00-0092-A Glass fiber separator 18 mm x 1.55 mm (10 pcs)
  • Page 11: Spare Parts And Consumables

    User Manual ECC-Std 5 Spare parts and consumables ECC-Std test cell Page 11 of 12 Release 3.81...
  • Page 12: Technical Support

    User Manual ECC-Std 6 Technical support Technical support for this product is exclusively provided by EL-Cell GmbH. EL-Cell GmbH Tempowerkring 8 21079 Hamburg - Germany phone: +49 40 79012-737 fax: +49 40 79012-736 e-mail: info@el-cell.com web: www.el-cell.com 7 Warranty For a period of one year from the date of shipment, EL -Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser.
