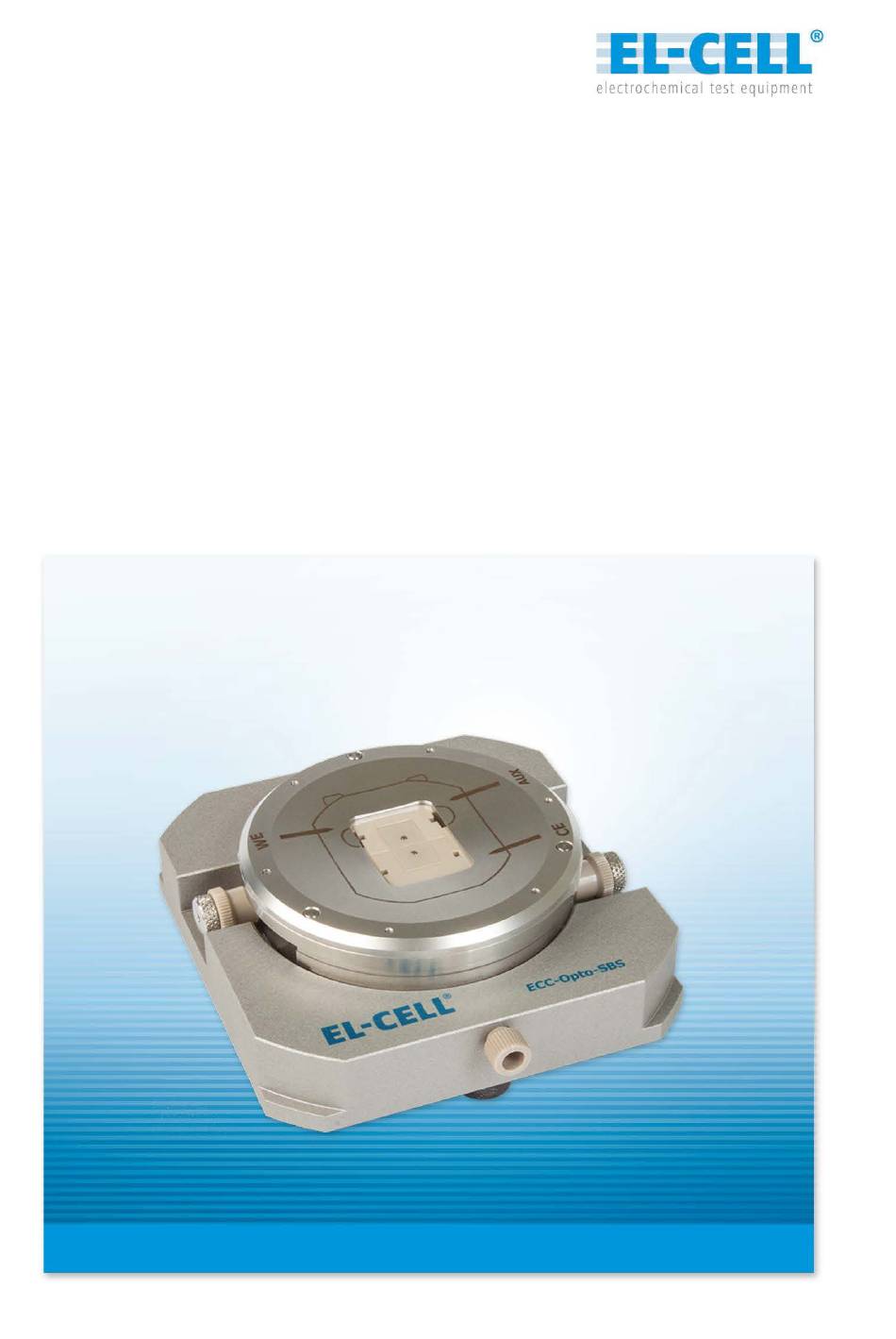

- Page 1 User Manual Release 1.23 Electrochemical Test Cell ECC-Opto-SBS ECC1-00-0160-A July 2017 © 2017 EL-CELL GmbH...
- Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -CELL GmbH does not assume any liability arising from the use or application of this p roduct.
-
Page 3: Table Of Contents
2 Features ......................5 3 Safety Precautions ..................... 6 4 Unpacking ......................6 5 Assembly and connection ..................7 6 Spare parts ...................... 12 12 Technical Support ................... 16 13 Warranty ......................17 Page 3 of 17 User Manual ECC-Opto-SBS – Release 1.23... -
Page 4: Product Description
Test cell for optical characterization in the reflective mode – with side-by-side arrangement of electrodes. With the ECC-Opto-SBS the electrode can be observed in-situ in the reflective mode – just as with the ECC-Opto-Std. The special thing about the ECC-Opto-SBS is the side-by-side (“face up”) arrangement of the electrodes which is in contrast... -
Page 5: Features
Materials in media contact are stainless steel and PEEK (dedicated to aprotic Li-ion chemistries) Precisely adjustable distance of electrolyte gap between electrode edges Optional reference electrode available Weight: 1534 g Page 5 of 17 User Manual ECC-Opto-SBS – Release 1.23... -
Page 6: Safety Precautions
4 Unpacking Check the contents of the packages against the list given below to verify that you have received all of the required components. Contact EL-CELL, if anything is missing or damaged. NOTE: Damaged shipments must remain within the original packaging for freight company inspection. -
Page 7: Assembly And Connection
Once fully assembled, the cell is hermetically sealed so that it may be operated in ambient atmosphere. The ECC-Opto-SBS test cell comes in fully assembled state. The following procedure explains how to build the test cell for the first experiment.For subsequent experiments it may be required to disassemble and clean the inner cell. - Page 8 Do not overtighten the thrust screws once the inner cell has been mounted to the cell lid. Doing so may destroy the optical window. Page 8 of 17 User Manual ECC-Opto-SBS – Release 1.23...
- Page 9 Place a rectangular piece of the glass fiber separator into the gap between the squared rams. The upper edge of the separator must have the same height like the ram holder, because the separator has to touch the glass window. Page 9 of 17 User Manual ECC-Opto-SBS – Release 1.23...
- Page 10 Turn the two thrust screws at the inner cell clockwise until the electrodes are gently pressed against the optical window. Place the cell case beside the cell lid with the inner cell attached. Page 10 of 17 User Manual ECC-Opto-SBS – Release 1.23...
- Page 11 Attach the test cell to the test stand and lock it to the stand by fixing the clamp screw. Attach one feed wire to port WE and one feed wire to port CE. Close port AUX with the PTFE-plug. Page 11 of 17 User Manual ECC-Opto-SBS – Release 1.23...
-
Page 12: Spare Parts
Feed wire SBS, assy ECC1-00-0166-A ECC1-00-0162-A PTFE Plug, assy Socket screw ECC1-00-0130-B DIN 912 M4x25 Feed Wire SBS, assy ECC1-00-0162-A Socket screw DIN 912 M4x25 Stand II, ECC-Opto-SBS, assy ECC1-00-0220-A Page 12 of 17 User Manual ECC-Opto-SBS – Release 1.23... - Page 13 SBS Sapphire window kit SBS, assy Top Flange SBS (1mm) ECC1-00-0163-A Sapphire window SBS ECC1-00-0165-A O-Ring 56.87x1.78 DIC9019 Base flange SBS ECC1-00-0164-A Socket screw DIN 912 M2x5 Page 13 of 17 User Manual ECC-Opto-SBS – Release 1.23...
- Page 14 Inner cell SBS, assy Electrode holder, assy ECC1-00-0171-A Inner cell base SBS ECC1-00-0168-A Adjustment screw ECC1-00-0167-A Contact plate ECC1-00-0187-A Socket screw DIN 2,5x4 Page 14 of 17 User Manual ECC-Opto-SBS – Release 1.23...
- Page 15 Feed pin ECC1-00-0172-A ECC1-00-0147-A Electrode feed wire (Au) Compression spring ECC1-00-0174-A 0.3x2.2x2.8x3.5 FED9025 Thrust screw, SBS ECC1-00-0175-A Lever (SBS) ECC1-00-0144-A Compression spring Axle, SBS 0.4x2.5x4.3x3.5 ECC1-00-0173-A FED9026 Electrode holder ECC1-00-0169-A Page 15 of 17 User Manual ECC-Opto-SBS – Release 1.23...
-
Page 16: Technical Support
12 Technical Support Technical support for this product is exclusively provided by EL-CELL GmbH. EL-CELL GmbH Tempowerkring 8 21079 Hamburg - Germany phone: +49 40 79012-737 fax: +49 40 79012-736 e-mail: info@el-cell.com web: www.el-cell.com Page 16 of 17 User Manual ECC-Opto-SBS – Release 1.23... -
Page 17: Warranty
13 Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return of the goods and tender repayment of the price.
