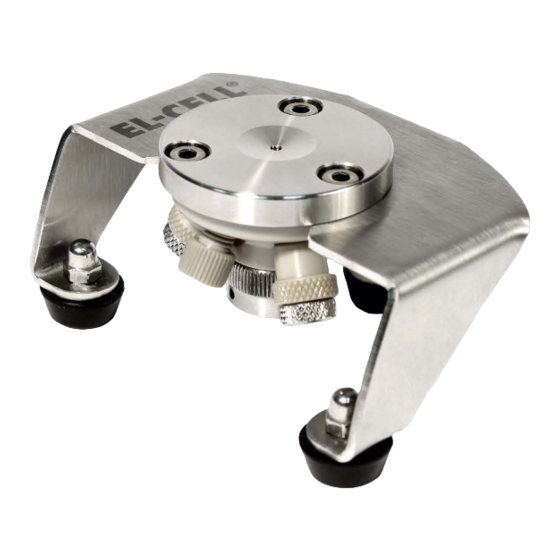

EL-CELL ECC-Opto-Std-Aqu User Manual

EL-CELL ECC-Opto-Std-Aqu User Manual

Electrochemical test cell
Hide thumbs Also See for ECC-Opto-Std-Aqu:

Advertisement

Quick Links

User Manual
Release 1.2
ECC-Opto-Std-Aqu
Electrochemical test cell
© 2017 EL-CELL GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECC-Opto-Std-Aqu and is the answer not in the manual?

Questions and answers

Summary of Contents for EL-CELL ECC-Opto-Std-Aqu

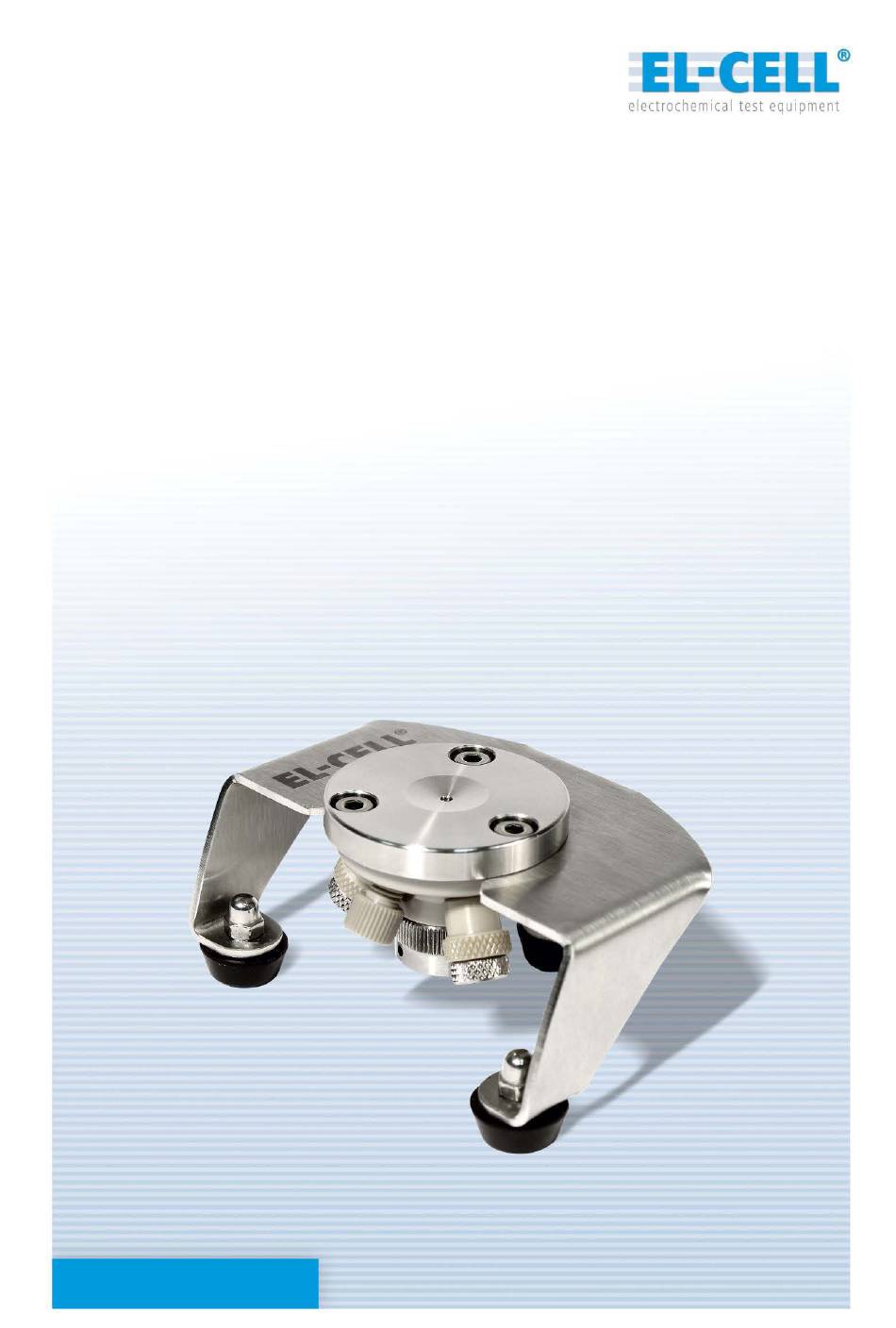

  • Page 1 User Manual Release 1.2 ECC-Opto-Std-Aqu Electrochemical test cell © 2017 EL-CELL GmbH...
  • Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -CELL GmbH does not assume any liability arising from the use or application of this product.
  • Page 3: Table Of Contents

    User Manual ECC-Opto-Std-Aqu Content 1 Product description ............................4 2 Features ................................5 3 Safety precautions............................7 4 Assembly and connection ........................... 7 5 Disassembly and Cleaning .......................... 9 6 Unpacking..............................10 7 Technical data .............................. 11 8 Spare parts ..............................12 9 Technical support ............................
  • Page 4: Product Description

    ECC-Opto-Std-Aqu 1 Product description The ECC-Opto-Std-Aqu test cell serves to monitor the optical properties of an electrode material in the course of electrochemical charging. For this purpose, the working electrode (WE) material, which is supported on a meshed or holed current collector, is placed right below the optical window.
  • Page 5: Features

    User Manual ECC-Opto-Std-Aqu 2 Features 2- and 3-electrode cell with optical window for aqueous electrochemistry.  Materials in media contact are gold, PEEK and EPDM  The backside of the working electrode material can be observed through the optical ...
  • Page 6 User Manual ECC-Opto-Std-Aqu Working principle of the ECC-Opto-Std-Aqu: Inspection area (1 mm, optional up to 10 mm) Working electrode material (WE) placed on the holed current collector Optical window Holed current collector 16 mm Spring loaded piston Glass fiber separator...
  • Page 7: Safety Precautions

    User Manual ECC-Opto-Std-Aqu 3 Safety precautions Use proper safety precautions when using hazardous electrode materials and electrolytes. Wear protective glasses and gloves to protect you against electrolyte that may accidentally spill out during filling and disassembly. Upon cell disa ssembly, dispose all materials properly.
  • Page 8 User Manual ECC-Opto-Std-Aqu Charge a 5 ml syringe with ca. 0.5 ml of electrolyte.  NOTE: We recommend single-use PP plastic syringes with low friction silicone pistons. Connect the syringe to the Luer adapter of the filling tube.  Pull the syringe piston back to evacuate the cell. Hold the piston a few seconds in the ...
  • Page 9: Disassembly And Cleaning

    User Manual ECC-Opto-Std-Aqu 15. Connect your potentiostat to the 2 mm sockets (1) of the cell cable ( grey: REF; red: blue: CE). Adapters (2) are provided for connection to 4 mm banana plugs. Different spring forces in relation to stack thickness: A compression spring exerts the mechanical pressure on the cell stack.
  • Page 10: Unpacking

    NOTE: Damaged shipments must remain within the original packaging for freig ht company inspection. List of components: ECC-Opto-Std-Aqu test cell with stand, fully equipped for use in both 2-electrode and 3-electrode (reference) configuration in aqueous electrolytes ECC1-00-0150-E ECC-Opto cell cable...
  • Page 11: Technical Data

    User Manual ECC-Opto-Std-Aqu 7 Technical data Temperature operation range -20 to +70 °C  Page 11 of 16 Release 1.2...
  • Page 12: Spare Parts

    User Manual ECC-Opto-Std-Aqu 8 Spare parts ECC-Opto-Std-Aqu test cell Page 12 of 16 Release 1.2...
  • Page 13 User Manual ECC-Opto-Std-Aqu Central CE Piston ECC-OPTO-STD AQU ECC1-00-0180-B Page 13 of 16 Release 1.2...
  • Page 14 User Manual ECC-Opto-Std-Aqu REF electrode OPTO, assy (Au) ECC1-00-0010-R Page 14 of 16 Release 1.2...
  • Page 15 User Manual ECC-Opto-Std-Aqu Electrode Feed Wire, OPTO, assy (Au) ECC1-00-0010-O Page 15 of 16 Release 1.2...
  • Page 16: Technical Support

    10 Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the ori ginal purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option,...
