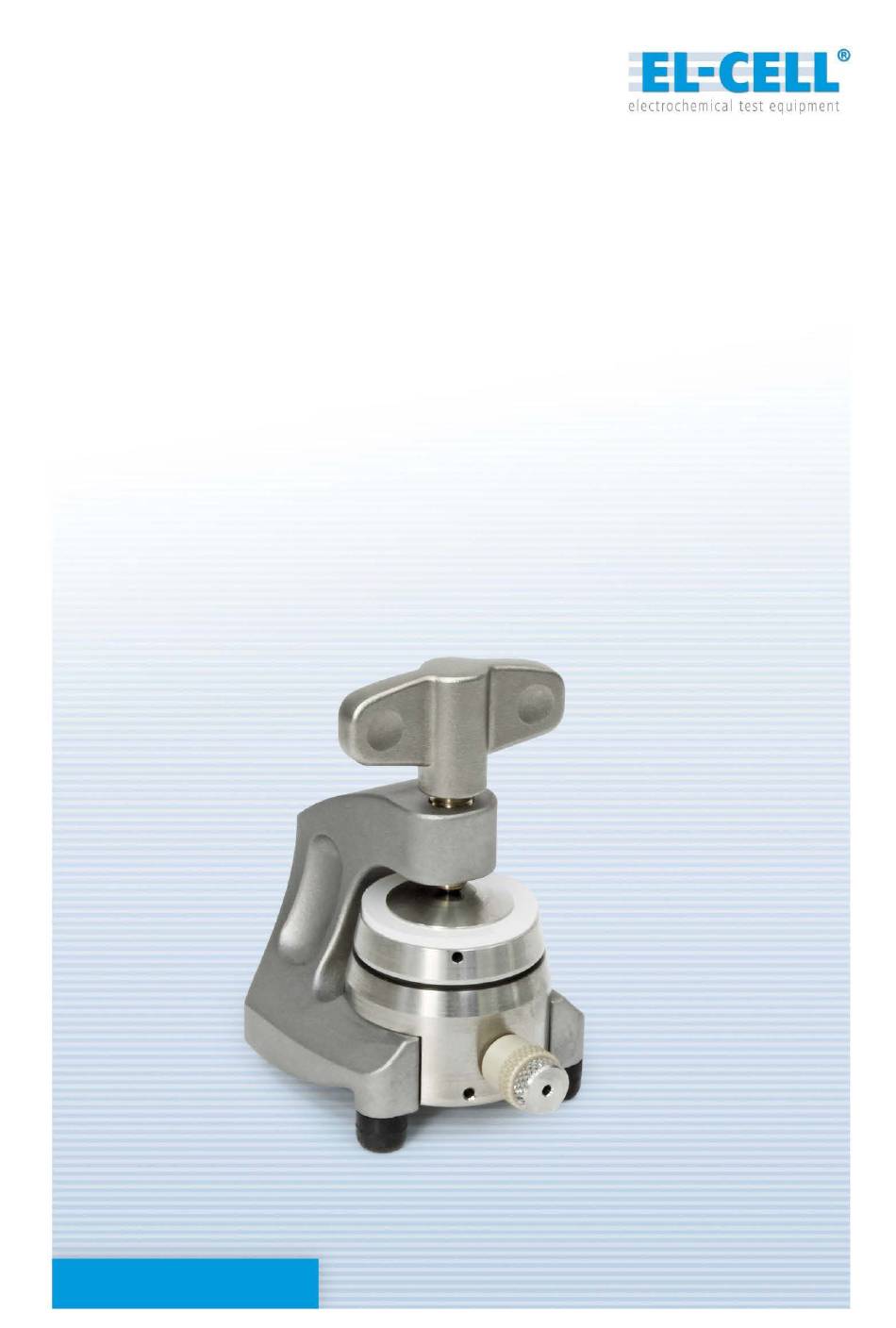

- Page 1 User Manual Release 2.5 ECC-Ref Electrochemical test cell with reference electrode © 2017 EL-CELL GmbH...
- Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -CELL GmbH does not assume any liability arising from the use or application of this product.
-
Page 3: Table Of Contents
User Manual ECC-Ref Content 1 Product description ............................4 2 ECC-Ref assembly ............................6 3 Disassembly and Cleaning ........................14 4 Unpacking..............................15 5 Technical data .............................. 15 5 Spare parts and consumables ........................16 6 Technical support ............................18 7 Warranty ................................ -
Page 4: Product Description

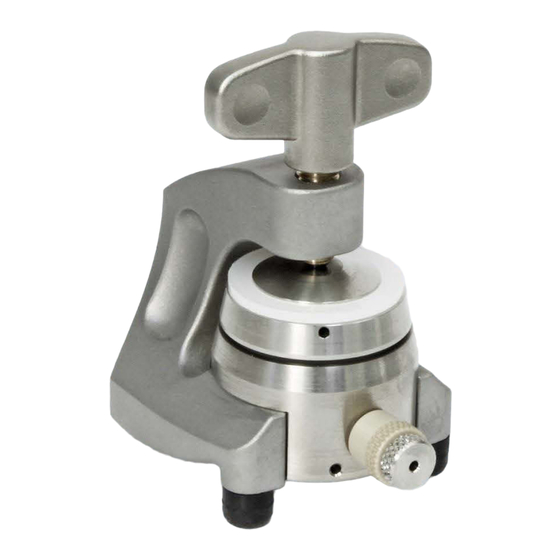

ECC-Ref 1 Product description The ECC-Ref Electrochemical Cell is a standard test cell for the characterization of lithium ion battery systems as well as other aprotic chemistries. With the ECC cell design we have adapted the advantages of the industry’s standard coin cell while avoiding its serious shortcomings for everyday lab usage. - Page 5 User Manual ECC-Ref Adjustable, reproducible and homogeneous mechanical pressure on electrodes FED9015 (Standard) FED9020 Spring load on stack FED9021 vs. stack thickness for different springs. Standard is FED9015. 1000 Thickness of electrode stack / µm Materials in media contact are stainless steel 316L and PEEK (other materials on request) ...
-
Page 6: Ecc-Ref Assembly
User Manual ECC-Ref 2 ECC-Ref assembly In order to operate the test cell with a reference, the small feed -through hole of the REF sleeve is to be loaded with a piece of the reference material, e.g. metallic lithium. Alternatively, the feed-through hole is first loaded with a piece of fibre cloth serving as an electrolyte “wick”, and only then with the reference electrod e material. - Page 7 User Manual ECC-Ref Reference electrode ECC, assy Feed through hole Note: By default, the REF sleeve comes with a 0.3 mm diameter bore. Depending on the reference or “wick” material used, it may be required to enlarge this bore. This can easily be done free-handed with the aid of a drill-bit.
- Page 8 User Manual ECC-Ref 2.2 Assembly Steps for using a lithium REF and a non-lithium CE (For using a lithium CE, see page 13): Pick up a small piece of lithium by a metal wire, and press the lithium into the feed-through hole of the REF sleeve until the lithium just arrives at the inner face of the sleeve, not less, not more.
- Page 9 User Manual ECC-Ref Mount the locking washer to align the side opening of the cell base with the feed-through hole of the REF sleeve. Attach the REF electrode to the cell base. Place the 18 mm counter electrode into the sleeve.
- Page 10 User Manual ECC-Ref Put the glass fiber separator on top. Dispense a defined amount of electrolyte onto the separator Place the working electrode, with its active layer downside, on top inside the sleeve. Page 10 of 18 Release 2.5...
- Page 11 User Manual ECC-Ref Insert the Plunger,..followed by the PE seal..and finally the spring. Page 11 of 18 Release 2.5...
- Page 12 User Manual ECC-Ref Attach the cell lid. Insert the cell into the bracket by pressing down the lid while pushing the cell into the bracket. Tighten cell by turning the wing nut. Note: The adequate amount of electrolyte depends on the porosity and thickness of the components used.
- Page 13 User Manual ECC-Ref 2.3 Assembly Steps for using a lithium CE When using lithium metal as the counter electrode, we recommend following the modified procedure given below. Pick up a small piece of lithium by a metal wire, and press the lithium into the feed - through hole of the REF sleeve until the lithium just arrives at the inner face of the sleeve.
-
Page 14: Disassembly And Cleaning
User Manual ECC-Ref 3 Disassembly and Cleaning After use, disassemble the test cell in the reverse order of assembly. Note that the reference pin MUST be detached before the REF sleeve can be removed. Dispose elec trodes and electrolyte properly. Clean wetted cell parts with deionized water and/or other appropriate detergent wash and solvent. -
Page 15: Unpacking
Contact the factory if anything is missing or damaged. NOTE: Damaged shipments must remain with the original packaging for freight company inspection. List of Components ECC-Ref test cell, fully equipped for use with reference Accessories-kit ECC1-00-0301-A... -
Page 16: Spare Parts And Consumables
User Manual ECC-Ref 5 Spare parts and consumables ECC-Ref test cell Page 16 of 18 Release 2.5... - Page 17 User Manual ECC-Ref Reference electrode ECC (1.4404) ECC1-00-0010-E Page 17 of 18 Release 2.5...
-
Page 18: Technical Support
7 Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option,...
