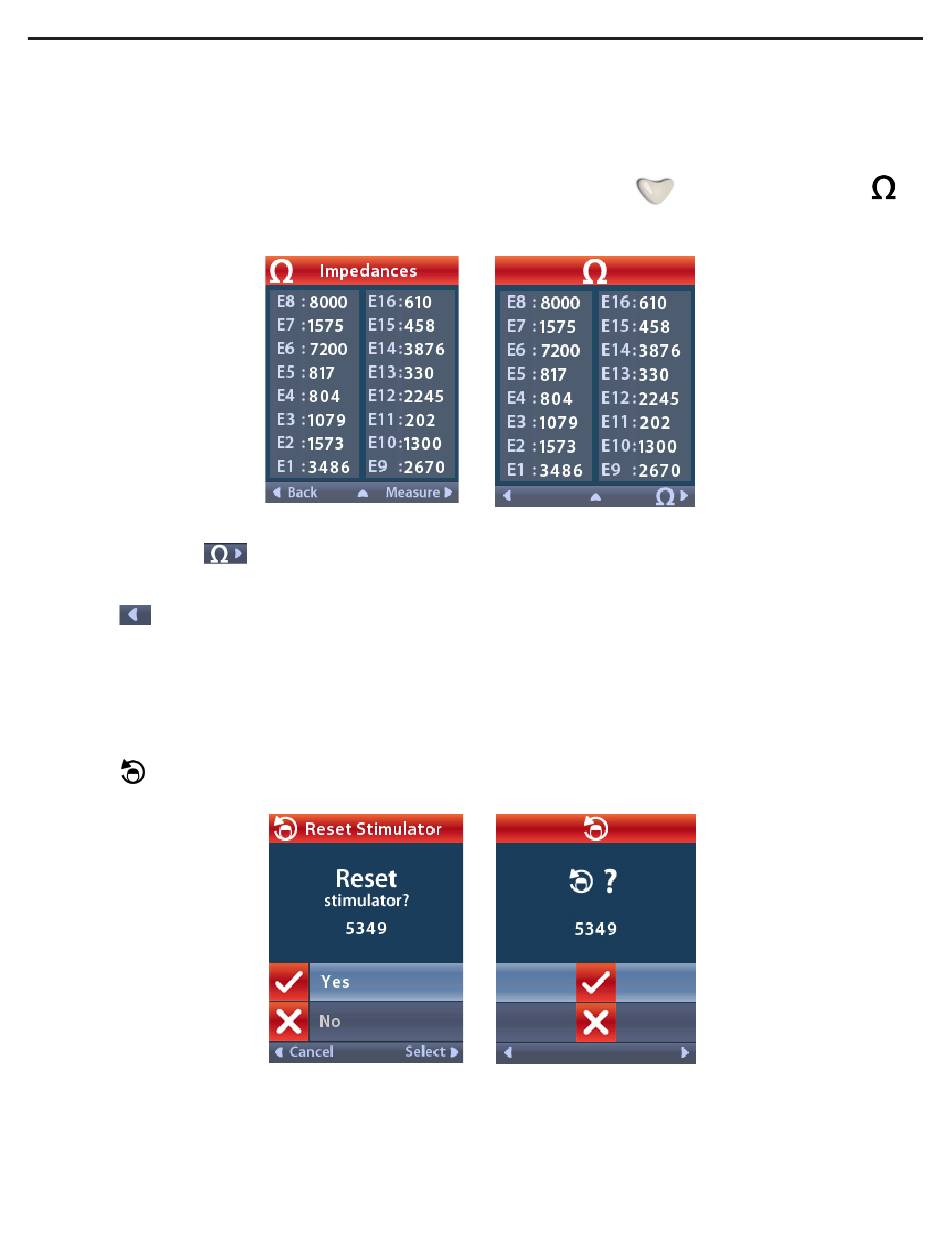

When an impedance measurement is taken, impedances are assessed between a contact and the
case (monopolar), and between pairs of contacts (bipolar). A green square indicates that impedance is
within the acceptable range. A yellow dot with a question mark indicates that impedance is outside of
the acceptable range.
Monopolar impedance values can be displayed by pressing the Down
Impedances screen.
2. Select Measure
Back to go back to the Clinician Menu.
3. Select
Reset Stimulator
You can use the Remote Control to reset the Stimulator.
From the Clinician Menu:
Reset Stimulator. The Reset Stimulator? screen displays.
Select
to check impedances again.
Accessing the Clinician Menu
Arrow button from the
Vercise™ DBS Remote Control 3 Directions for Use
92104389-01 17 of 27
