H3C S3600 Series Operation Manual page 7

Operation Manual – System Maintenance and Debugging
H3C S3600 Series Ethernet Switches-Release 1510

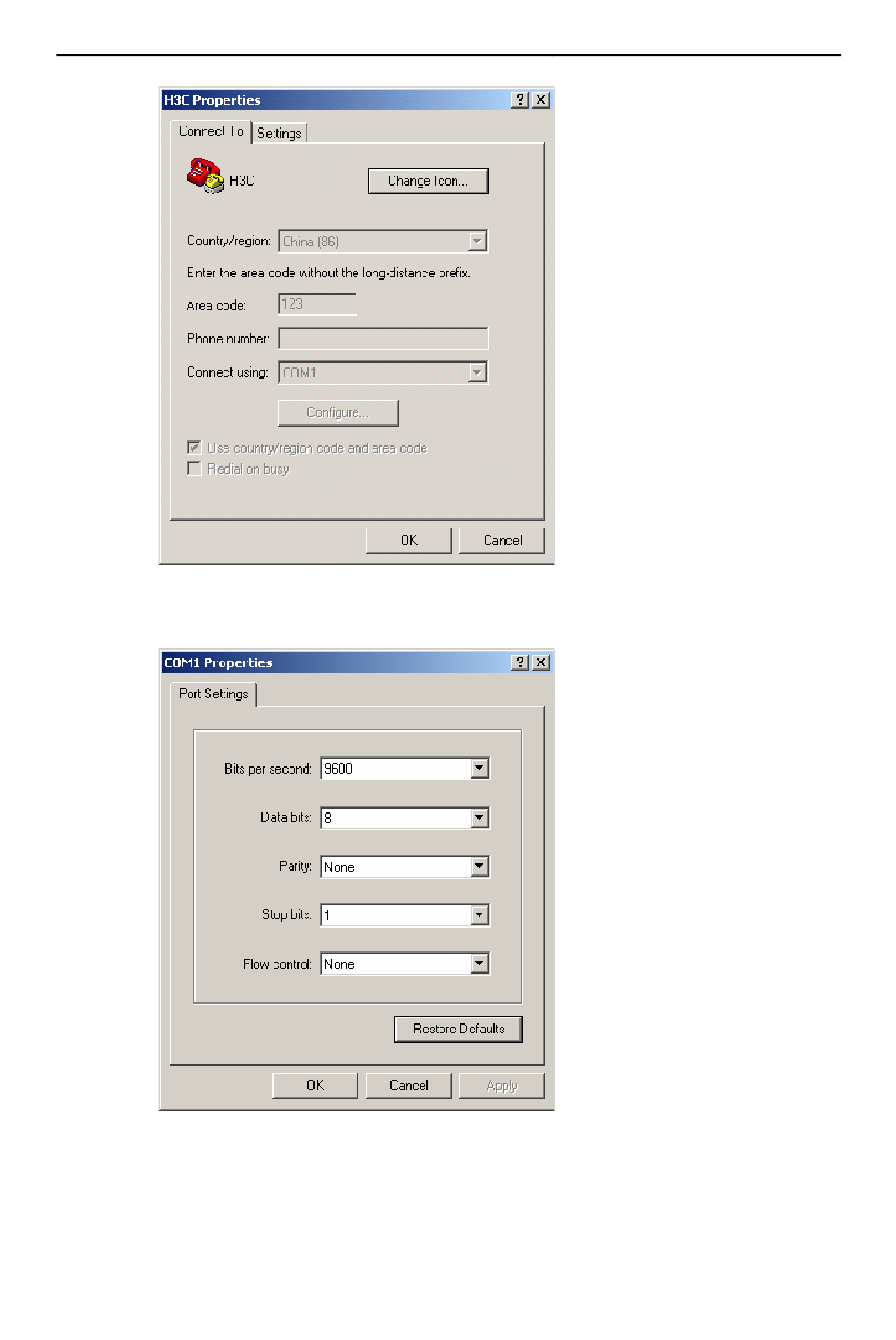

Figure 1-1 Properties dialog box
Figure 1-2 Console port configuration dialog box
Step 5: Click the <Disconnect> button to disconnect the HyperTerminal from the switch
and then click the <Connect> button to reconnect the HyperTerminal to the switch, as
shown in Figure 1-3.
Chapter 1 BootROM and Host Software
1-5
Loading
