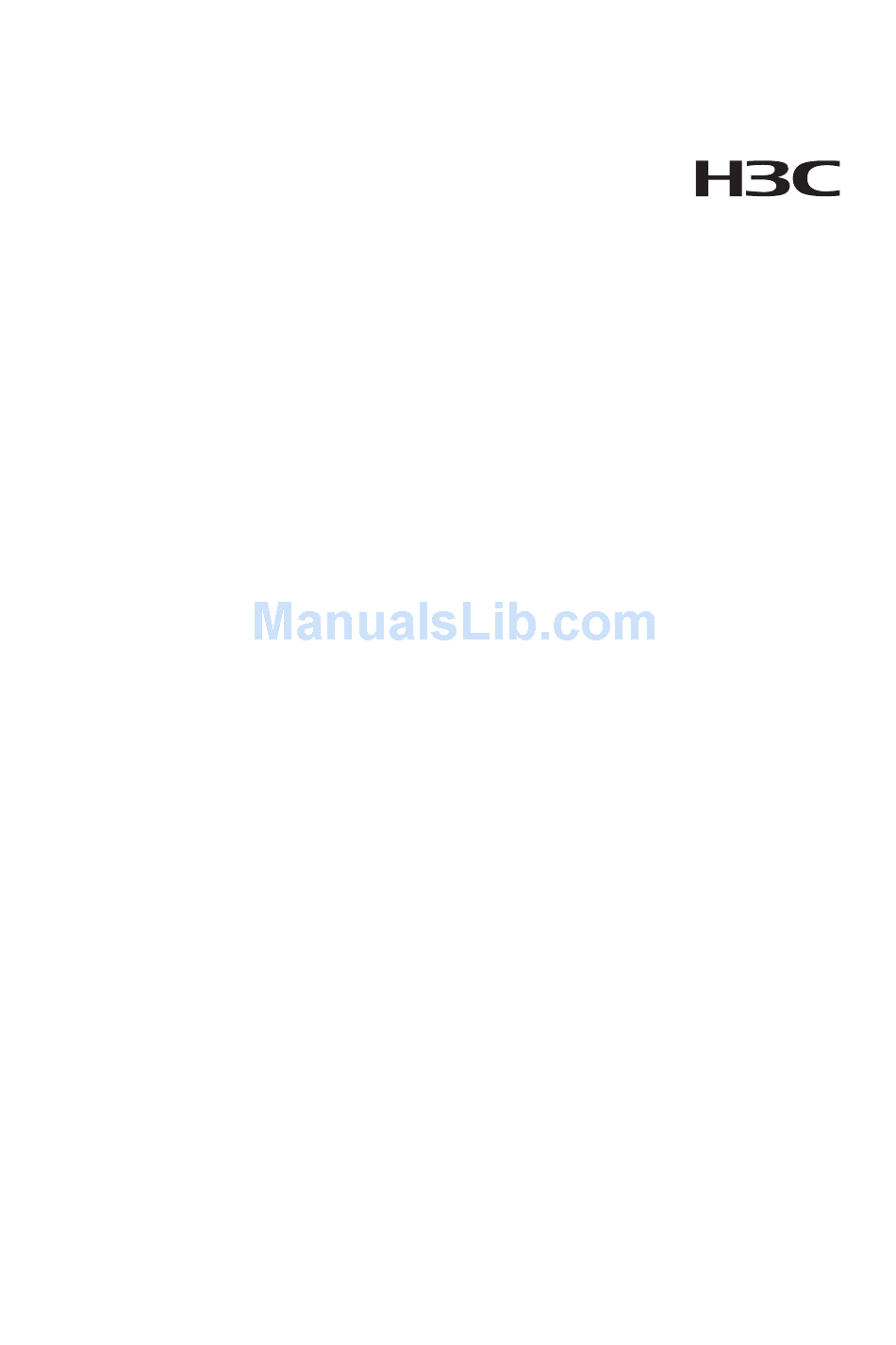

H3C S3610 Series Ethernet Switches

Quick Start

Hangzhou H3C Technologies Co., Ltd.
http://www.h3c.com
Manual Version: T2-08225A-20080526-C-1.07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3610 Series and is the answer not in the manual?

Questions and answers

Related Manuals for H3C S3610 Series

Summary of Contents for H3C S3610 Series

  • Page 1: Quick Start

    H3C S3610 Series Ethernet Switches Quick Start Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Manual Version: T2-08225A-20080526-C-1.07...
  • Page 2 Copyright © 2006-2008, Hangzhou H3C Technologies Co., Ltd. and its licensors All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd. Trademarks H3C,...

  • Page 3: About This Manual

    About This Manual Related Documentation In addition to this manual, each H3C S3610 Series Ethernet Switches documentation set includes the following: Manual Content H3C S3610&S5510 Series It is used for assisting the users Ethernet Switches Operation in data configurations and...
  • Page 4 S3610 Series Ethernet Preparation Switches. Introduces the procedures to install an 3 Installing the S3610 Series Ethernet Switch, including the Switch setup of the mainframe, cards and cables. 4 Lightning Introduces lightning protection of S3610 Protection of the Series Ethernet Switches.
  • Page 5 Convention Description Optional alternative items are grouped in square brackets and separated by vertical [ x | y | ... ] * bars. Many or none can be selected. The argument(s) before the ampersand (&) &<1-n> sign can be entered 1 to n times. A line starting with the # sign is comments.
  • Page 6 Environmental Protection This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed.

  • Page 7: Table Of Contents

    Quick Start H3C S3610 Series Ethernet Switches Table of Contents Table of Contents Chapter 1 Product Overview ............1-1 1.1 Introduction ................1-1 1.2 S3610-28TP Ethernet Switch..........1-3 1.2.1 Front Panel ..............1-3 1.2.2 Rear Panel...............1-4 1.2.3 Power Supply System ..........1-4 1.2.4 Cooling System ............1-5 1.3 S3610-28P Ethernet Switch..........1-5...
  • Page 8 1.7.3 LEDs of the S3610-28F Ethernet switch ....1-26 1.7.4 LEDs of the S3610-52P Ethernet switch....1-34 1.7.5 LEDs of the S3610-52M/S3610-52M-DC Ethernet switch................1-34 1.8 Specifications of the S3610 Series ........1-36 1.9 SFP modules..............1-38 1.9.1 100 Mbps SFP modules ........1-38 1.9.2 1000 Mbps SFP modules ........1-38 Chapter 2 Installation Preparation ..........2-1...
  • Page 9 Quick Start H3C S3610 Series Ethernet Switches Table of Contents 3.2.3 Connecting the Ground Wire.........3-15 3.2.4 Multi-power Input ...........3-19 3.3 Connecting the Switch to a Console Terminal....3-20 3.3.1 Console Cable ............3-20 3.3.2 Connecting the Console Cable......3-21 3.4 Installation of the Optional Interface Modules....3-22 3.4.1 Installation of the Optional Interface Modules ..3-22...

  • Page 10: Chapter 1 Product Overview

    The S3610 series are designed to operate on the convergence and access layer of intranets and metropolitan area networks (MANs). They support both IPv4 and IPv6 and thus offer abundant services and routing functionalities.
  • Page 11 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Number Number Total of 1000 Power of 100 Console Model service Mbps supply Mbps port ports uplink ports ports 24 fixed 10Base- 4 × 1000 AC-input S3610 T/100Ba Mbps SFP...

  • Page 12: S3610-28Tp Ethernet Switch

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Number Number Total of 1000 Power of 100 Console Model service Mbps supply Mbps port ports uplink ports ports Dependi ng on the inserted S3610 Dependi AC-input 4 × 1000...

  • Page 13: Power Supply System

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview (1): 100 Mbps Ethernet port status LEDs (2): 1000 Mbps SFP port status LEDs (3): 1000 Mbps Ethernet port status LEDs (4): Console port (5): 7-segment numerical display (6): Port mode switch button...

  • Page 14: Cooling System

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview I. AC input: Rated voltage range: 100 VAC to 240 VAC, 50 Hz or 60 Hz Max voltage range: 90 VAC to 264 VAC, 50 Hz or 60 Hz II.

  • Page 15: Cooling System

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Figure 1-3 Front panel of the S3610-28P 1.3.2 Rear Panel （1） （1） （2） （2） （3） （3） (1): AC-input power socket (2): DC-input power socket (3): Grounding screw Figure 1-4 Rear panel of the S3610-28P 1.3.3 Power Supply System...

  • Page 16: S3610-28F Ethernet Switch

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview 1.4 S3610-28F Ethernet Switch 1.4.1 Front Panel On its front panel the S3610-28F provides 24 x 100 Mbps SFP ports, two 1000 Mbps SFP ports, two 10/100/1000Base-T Ethernet ports and one Console port, as shown in Figure 1-5.

  • Page 17: Power Supply System

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview 1.4.3 Power Supply System The S3610-28F supports power load sharing between the AC and DC power supply. It can also be powered by the AC power supply or DC power supply only.

  • Page 18: Rear Panel

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview (1): 100 Mbps Ethernet port status LEDs (2): Console port (3): 7-segment numerical display (4): Port mode switch button (5): Port mode switch LED (6): Power LED (7): DC-input power LED...

  • Page 19: Power Supply System

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview 1.5.3 Power Supply System The S3610-52P supports power load sharing between the AC and DC power supply. It can also be powered by the AC power supply or DC power supply only.

  • Page 20: Rear Panel

    Figure 1-9 Front panel of the S3610-52M/S3610-52M-DC Caution: The interface modules on the front panel of the H3C S3610-52M and S3610-52M-DC are not hot-swappable. To install or remove these modules, you must first power off the switch. For how to install and remove these modules, refer to section 3.4...
  • Page 21 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Caution: Do not remove the fixed extension card on the rear panel of the H3C S3610-52M S3610-52M-DC without guidance professionals. (1): Grounding screw (2): AC-input power socket (3): RPS DC-input redundancy power socket...

  • Page 22: Power Supply System

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview (1): Grounding screw (2): DC-input power socket (3): RPS DC-input redundancy power socket (4): Fixed interface module Figure 1-11 Rear panel of the S3610-52M-DC 1.6.3 Power Supply System I. S3610-52M Rated voltage range: 100 VAC to 240 VAC;...

  • Page 23: Leds

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview 1.7 LEDs 1.7.1 LEDs of the S3610-28TP Ethernet switch For your convenience to monitor the operation of the switch, the S3610-28TP provides one power LED, one DC-input power LED, one...
  • Page 24 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning Power Solid green The switch works normally. The switch is running power-on self-test (POST) or is loading software. (1) When running POST, The system displays the number of...
  • Page 25 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The system fails the POST and does not work. At this time, the system displays the number of the Flashing red failed POST item on the...
  • Page 26 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The number of current POST In the process item is displayed. of POST The number of the failed POST item is displayed. POST failure 7-seg ment...
  • Page 27 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port works at 100 Mbps; when it Green receives/sends data, the LED flashes quickly. The port works at 10 Mbps; when it Yellow receives/sends In speed mode data, the LED flashes quickly.
  • Page 28 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port works at 1000 Mbps; when Green it receives/sends data, the LED flashes quickly. Speed Flashing The port fails the yellow POST. (at 3 Hz)
  • Page 29 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning 10/10 The port works at 0/100 1000 Mbps; when — 0Base Green it receives/sends data, the LED Ether flashes quickly. The port works at port 10/100 Mbps;...

  • Page 30: Leds Of The S3610-28P Ethernet Switch

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port is disconnected. 1.7.2 LEDs of the S3610-28P Ethernet switch For your convenience to monitor the operation of the switch, the S3610-28P provides one power LED, one DC-input power LED, one...
  • Page 31 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning Powe Solid green The switch works normally. r LED The switch is running power-on self-test (POST) or is loading software. (1) When running POST, The system displays the number of...
  • Page 32 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The system fails the POST and does not work. At this time, the system displays the number of the Flashing red failed POST item on the...
  • Page 33 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The number of current POST In the progress item is displayed. of POST The number of failed POST item is displayed. POST failure 7-seg ment nume...
  • Page 34 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port works at 100 Mbps; when it Green receives/sends data, the LED flashes quickly. The port works at 10 Mbps; when it Yellow receives/sends Speed data, the LED flashes quickly.

  • Page 35: Leds Of The S3610-28F Ethernet Switch

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port works at 1000 Mbps; when Green it receives/sends data, the LED flashes quickly. Speed Flashing The port fails the yellow (at POST. 3 Hz)
  • Page 36 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview and two 1000 Mbps Ethernet port status LEDs on its front panel. Table 1-4 describes the meanings of these LEDs. Table 1-4 LEDs on the front panel of the S3610-28F...
  • Page 37 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning Power Solid green The switch works normally. The switch is running power-on self-test (POST) or is loading software. (1) When running POST, The system displays the number...
  • Page 38 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The system fails the POST and does not work. At this time, the system displays the number of the Flashing red failed POST item on the...
  • Page 39 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The number of current POST In the progress item is displayed. of POST The number of failed POST item is displayed. POST failure 7-segm numeri Unit The short lines are lighted clockwise during the loading.
  • Page 40 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port works at 100 Mbps; when it Green receives/sends data, the LED flashes quickly. Speed Flashin g yellow The port fails the (at 3 POST.
  • Page 41 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port works at 1000 Mbps; when Green it receives/sends data, the LED flashes quickly. Speed Flashin g yellow The port fails the (at 3 POST.
  • Page 42 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning 10/100/ The port works at 1000B 1000 Mbps; when — ase-T Green it receives/sends Ethern data, the LED et port flashes quickly. status The port works at 10/100 Mbps;...

  • Page 43: Leds Of The S3610-52P Ethernet Switch

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Mark Status Meaning The port is disconnected. 1.7.4 LEDs of the S3610-52P Ethernet switch For your convenience to monitor the operation of the switch, the S3610-52P provides one power LED, one DC-input power LED, one...
  • Page 44 Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Table 1-5 Meaning of LEDs on 8-port 100Base-FX single mode/multi-mode module panel State OFF means that the line is disconnected. ON LINK means the line is connected. OFF means that no data is being transceived.

  • Page 45: Specifications Of The S3610 Series

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview 1.8 Specifications of the S3610 Series Table 1-8 Specifications of the S3610 series S3610 S3610 S3610 S3610 S3610-5 S3610-5 Item -28TP -28P -28F -52P 2M-DC Dimen sions 86 × 440 × 420 mm 43.6 ×...
  • Page 46 -28TP -28P -28F -52P 2M-DC The S3610 series can be AC-powered or DC-powered. Rated voltage range: 100 VAC to 240 VAC; 50 Hz or 60 Power Maximum voltage range: 90 VAC to 264 VAC; 50 Hz or 60 supply Rated voltage range: –60 V to –48 V Maximum voltage range: –72 V to –36 V...

  • Page 47: Sfp Modules

    Quick Start H3C S3610 Series Ethernet Switches Chapter 1 Product Overview 1.9 SFP modules 1.9.1 100 Mbps SFP modules Table 1-9 100 Mbps SFP modules supported by S3610 Ethernet switches Type Model SFP-FE-SX-MM1310-A SFP-FE-LX-SM1310-A 100 Mbps SFP module SFP-FE-LH40-SM1310 SFP-FE-LH80-SM1550...
  • Page 48 H3C S3610 Series Ethernet Switches Chapter 1 Product Overview Note: The types of SFP modules may vary over time. Consult H3C marketing personnel or technical support personnel to obtain the latest information about SFP modules. For specifications of SFP modules, refer to H3C Low End Series Ethernet Switches Pluggable Module Manual.

  • Page 49: Chapter 2 Installation Preparation

    When replacing interface cards, wear ESD-protective gloves to avoid damaging the cards. 2.2 Installation Site The S3610 series must be used indoors. You can mount your switch in a rack or on a tabletop/workbench, but make sure: Adequate clearance is reserved at the air inlet/exhaust vents...

  • Page 50: Temperature/Humidity

    Quick Start H3C S3610 Series Ethernet Switches Chapter 2 Installation Preparation The rack or table/workbench has a good ventilation system. The rack is sturdy enough to support the device and its accessories. The rack or table/workbench is well earthed. To ensure normal operation and long service life of your VG, install it in an environment that meets the requirements described in the following subsections.

  • Page 51: Electromagnetic Susceptibility

    Quick Start H3C S3610 Series Ethernet Switches Chapter 2 Installation Preparation Table 2-1 Dust content limits in an equipment room Substance Unit Concentration limit ≤ 3 X 10 (No visible dust on Dust Particles/m³ the tabletop for three days) Remark: the diameter of a dust particle ≥ 5μm...

  • Page 52: Laser Safety

    2.2.4 Laser Safety The S3610 series are class-1 laser devices. When the optical ports on your switch are operating, do not stare into the optical ports because the laser light emitted by the optical fiber can hurt your retina.
  • Page 53 Quick Start H3C S3610 Series Ethernet Switches Chapter 2 Installation Preparation ESD-preventive wrist strap Caution: The installation tools are not provided with the S3610 series.

  • Page 54: Chapter 3 Installing The Switch

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Chapter 3 Installing the Switch Caution: When you ask your sales agent to maintain the switch, you must ensure that the dismantlement-preventive seal on a mounting screw of the switch chassis is intact.
  • Page 55 Ensure a clearance of 1U (44.45 mm, namely, 1.75 inches) between devices for the purpose of heat dissipation. Guide rails purchased from H3C apply only to standard cabinets 1,000 mm (39.4 in) deep. Use other supports to substitute for guide rails in the case of other cabinet depths.
  • Page 56 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch II. Introduction to guide rail Figure 3-2 shows the appearance of a guide rail. Slotted hole 1: Used to fix the guide rail to the rear bracket. You can adjust the screw hole position according to the position of the switch.
  • Page 57 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet. Take out the screws which are packed together with the front mounting ears, and fix one end of mounting ears to the switch, as shown in Figure 3-3.
  • Page 58 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Front square-holed bracket Front mounting ear Front panel Front mounting ear Figure 3-4 Fix front mounting ears (2) IV. Use front mounting ears and a tray Follow these steps to install a switch into a 19-inch standard...
  • Page 59 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch V. Use front mounting ears and guide rails Follow these steps to install a switch into a 19-inch standard cabinet: Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.
  • Page 60 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Figure 3-6 Install front mounting ears and guide rails Fix the other end of front mounting ears to the front brackets of the cabinet with M6 screws and captive nuts and ensure that the front mounting ears and guide rails have fixed the switch in the cabinet securely, as shown in Figure 3-7.

  • Page 61: Desk Mounting

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch 3.1.2 Desk Mounting When a 19-inch standard cabinet is not available, you can simply place the switch on a clean desk. When doing so, you should ensure that: The desk is stable and well grounded.
  • Page 62 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch II. Connecting the AC Power Cord Step 1: Connect one end of the chassis ground wire to the grounding screw on the rear of the chassis and the other end to the ground as near as possible.

  • Page 63: Connecting The Dc-Input Power Cord

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch 3.2.2 Connecting the DC-Input Power Cord I. DC power cable connection for S3610-52M-DC Ethernet switch (1): Screw 1 (2): Screw 2 (3): RTN (+) working ground (4): NEG(–) DC voltage input (–48 V to –60 V)
  • Page 64 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Step 1: Check whether the PWR LED on the front panel of the switch is ON. If yes, the power is properly connected. Caution: Before powering on the switch, you should properly connect the grounding wire.
  • Page 65 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Connect one end of the grounding cable (delivered with the switch) to the grounding screw and the other end to the ground nearby. Connect the 12V-RPS DC power supply as follows: Step1: As shown in Figure 3-11, loosen the fastening screws and remove the air filter from the 12V-RPS DC power socket.
  • Page 66 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Caution: Before powering on the switch, you should properly connect the grounding cable. The DC power cable should be less than 3 meters long. Only the recommended 12V-RPS DC power supply and power cables can be used.
  • Page 67 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Connector parts Connector parts Screw 2 Screw 2 Screw 1 Screw 1 Chassis Chassis Figure 3-13 Fix RPS connector to the cabinet Step 2: Directly insert the component into DC-input socket on the...

  • Page 68: Connecting The Ground Wire

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch 3.2.3 Connecting the Ground Wire Caution: Correctly connecting the switch ground wire is crucial to the lightning protection and electromagnetic susceptibility (EMS) of a switch. The power input end of the switch is connected with a noise filter, whose central ground is directly connected to the chassis, forming the chassis ground (commonly known as PGND).
  • Page 69 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch (1): Power input on the switch (2): Grounding screw on the switch (3): ground wire (4): Grounding strip Figure 3-14 Grounding the switch through a grounding strip When there is no grounding strip but earth near the equipment room that allows a grounding body to be buried, hammer an angle iron/steel pipe longer than 0.5 m into the...
  • Page 70 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch (1): Power input (2): Grounding screw (3): Ground wire (4): Earth (5): Angel iron Figure 3-15 Grounding the switch by burying the grounding body into the earth For an AC-powered switch, if none of the above two conditions is available, ground it through the PE wire of the AC power supply.
  • Page 71 Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch (1): AC-input (2): Grounding screw (3): Power transformer (4): PE wire (5): AC-input (with 3-wire cable) (6): Ethernet Switch Figure 3-16 Grounding through the AC PE wire For a DC-powered switch, if none of the first two conditions is available, ground it through the return wire (RTN) of the DC power supply.

  • Page 72: Multi-Power Input

    Figure 3-17 Grounding through the PGND of a power cabinet 3.2.4 Multi-power Input Caution: S3610 Series Ethernet Switches have both AC and DC power inputs, so ensure that all the power connections are disconnected before you turn off the power.

  • Page 73: Connecting The Switch To A Console Terminal

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch 3.3 Connecting the Switch to a Console Terminal 3.3.1 Console Cable Console cable is an 8-core cable. At one end of the cable is a crimped RJ-45 connector for the connection to the Console port of the switch;...

  • Page 74: Connecting The Console Cable

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch RJ-45 Signal Direction DB-9 → → 3.3.2 Connecting the Console Cable Follow these steps to connect a terminal device, a PC for example, to the switch: Step 1: Plug the DB-9 (female) connector of the Console cable to the serial port of the PC where the switch is to be configured.

  • Page 75: Installation Of The Optional Interface Modules

    3.4.1 Installation of the Optional Interface Modules Note： The descriptions in this section are applicable to the installation and removal of the interface modules on the front panel of the H3C S3610-52M and S3610-52M-DC only. Caution: Before performing any of the following operation, please make sure that the switch is powered off to avoid the damage to the components.

  • Page 76: Removal Of Optional Interface Modules

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Step 1: Wear ESD wrist strap and disconnect the power of the switch. Step 2: Remove the blank filler panel in the module slot. Step 3: Align the remote edge of the interface card with the hatch edge of the switch bottom.

  • Page 77: Verifying Installation

    Quick Start H3C S3610 Series Ethernet Switches Chapter 3 Installing the Switch Caution: When removing/installing the optional interface modules, pay attention to the following: When removing /installing the module, do not apply too much force during the operation or touch the components on the surface of the module.

  • Page 78: Chapter 4 Lightning Protection Of The Switch

    Quick Start Chapter 4 Lightning Protection of H3C S3610 Series Ethernet Switches the Switch Chapter 4 Lightning Protection of the Switch 4.1 Installation of Lightning Arrester for AC Power (Socket Strip with Lightning Protection) Caution: Lightning arrester will not be shipped with the switch. You should purchase it by yourself if needed.
  • Page 79 Quick Start Chapter 4 Lightning Protection of H3C S3610 Series Ethernet Switches the Switch Grounding and polarity indicator (red) : On means that the lines are wrongly connected (either the ground wire is not well connected, or the live and zero lines are wrongly connected).
  • Page 80 Quick Start Chapter 4 Lightning Protection of H3C S3610 Series Ethernet Switches the Switch Caution: Make sure that the arrester is well grounded before using the lightning arrester for power. After inserting AC power cord plug of switch into the socket of lightning...

  • Page 81: Installation Of Lightning Arrester For Network Port

    Quick Start Chapter 4 Lightning Protection of H3C S3610 Series Ethernet Switches the Switch 4.2 Installation of Lightning Arrester for Network Port Note: Lightning arrester for network port is specially designed for the Ethernet port of 10/100M electrical interface (RJ-45 connector is adopted in this case).
  • Page 82 Quick Start Chapter 4 Lightning Protection of H3C S3610 Series Ethernet Switches the Switch II. Installation procedure Step 1: Tear the protection paper at one side of the double faced adhesive tape apart from the tape, and stick the tape on the surface of the arrester.
  • Page 83 Quick Start Chapter 4 Lightning Protection of H3C S3610 Series Ethernet Switches the Switch Network cable indoors Network cable led into from outdoor Lightning arrester for network port Switch (attached onto the chassis) Ground wire of lightning arrester Power input...
  • Page 84 Quick Start Chapter 4 Lightning Protection of H3C S3610 Series Ethernet Switches the Switch The lightning arrester for the network port is not installed completely. If the switch has more than one network ports to interconnect with other devices via cables outdoor, you should install...
