Operation - Aventics SuperSpool RCV Service Information

Pneumatic directional control valve

Advertisement

Valve "SUPPLY" port:
Valve "DEL. PORT 'B' ":
Valve "DEL. PORT 'A' ":
The exhaust port is typically left open to atmosphere in this application. A muffler or
insect excluder may be installed if desired, but care should be taken to assure that it is the
free-flow type and that it is not a design that will clog up with coal dust over time. Flow re-
striction at the exhaust port will slow the speed of the cylinder and door actuation, so due
caution is suggested if any of these items are installed.

Operation

Temperature Range:
Max. Operating Pressure:
Min. Operating Pressure:
Supply air
To cap end of cylinder
To piston rod end of cylinder

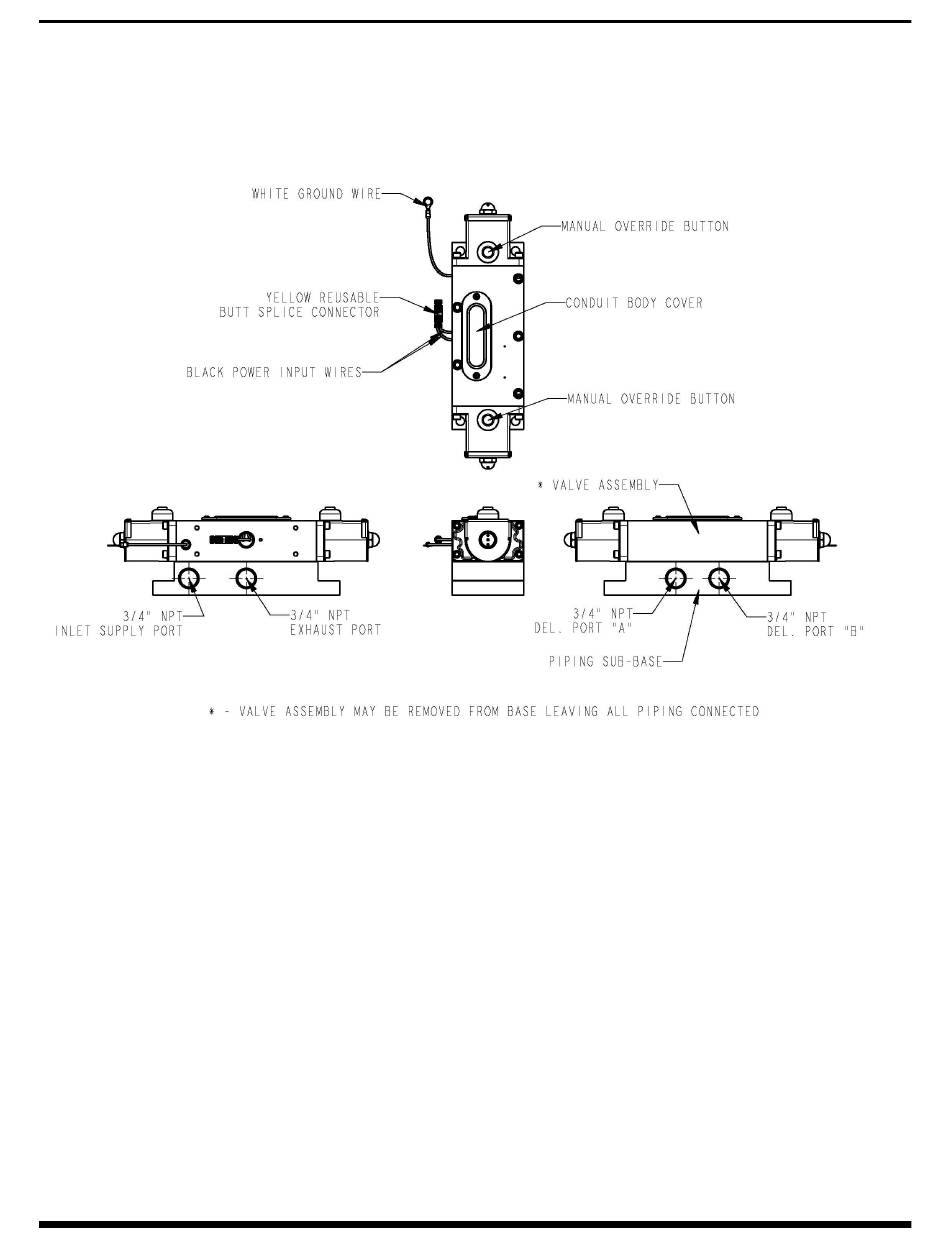

Figure 1: Typical Valve Configuration
- 20 deg. F to + 160 deg. F
150 psi
15 psi
Page 3
