3. If the mask does not fit so the forehead pad
rests just above the brow line, change out the
arm bar to the appropriate size. Slide the arm
bar out of the forehead piece, then remove the
arm bar by pinching the sides near the mask to
release it from the slide adjustment. Select
another size arm bar and attach to the slide
adjustment and forehead piece.

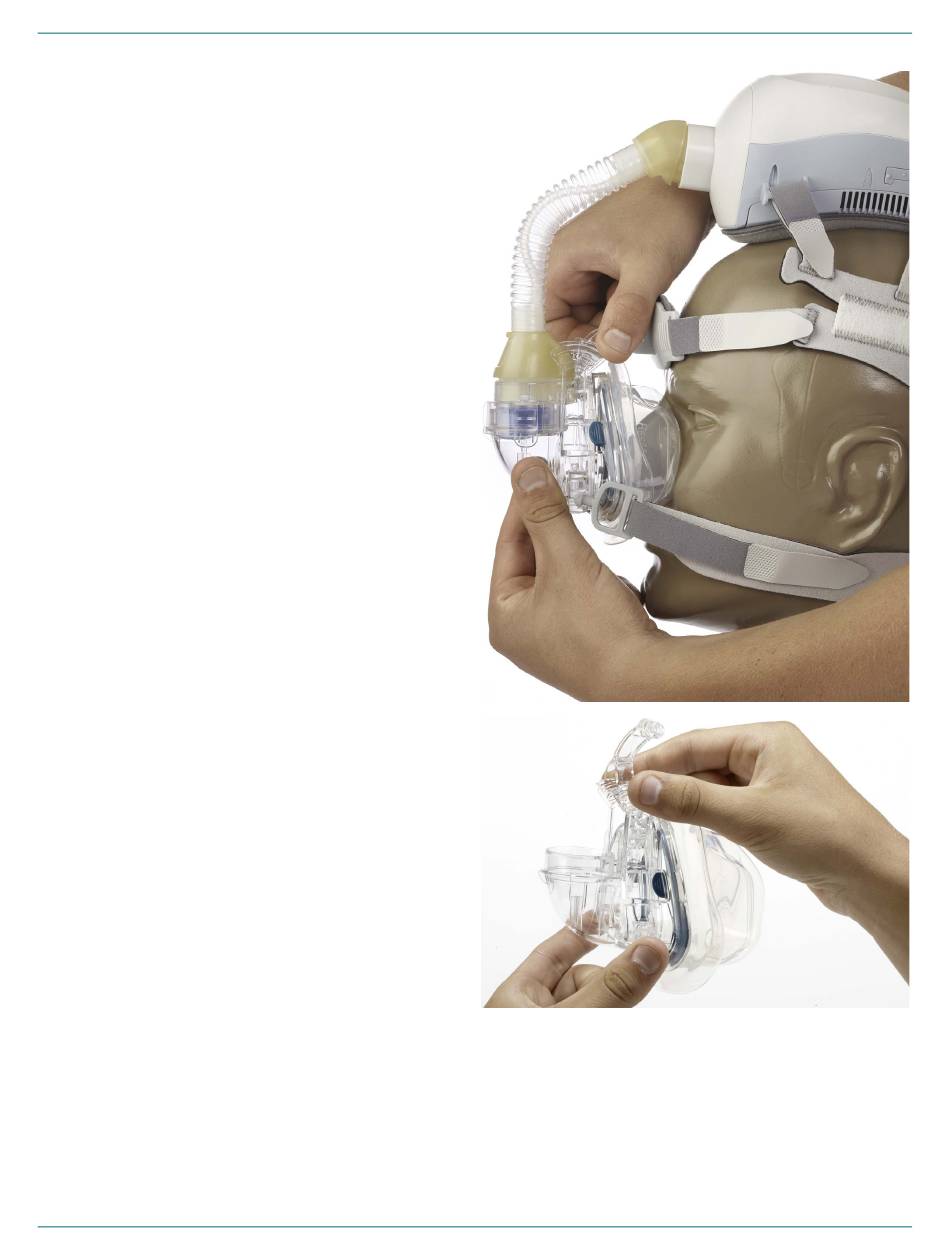

4. Connect the bottom straps of the headgear to
the interface by inserting the ball clips into the
notches on mask shell.
5. Gently squeeze the sides of the arm bar to
slide the mask further from or closer to the
face, so that it fits comfortably against the
nose.
6.
Adjust the headgear straps until the interface
feels secure.
Fitting the Transcend H6B and Transcend H9M Waterless Humidification Systems
