Assembling the Transcend H

Humidification System
Follow these steps to assemble the Transcend H

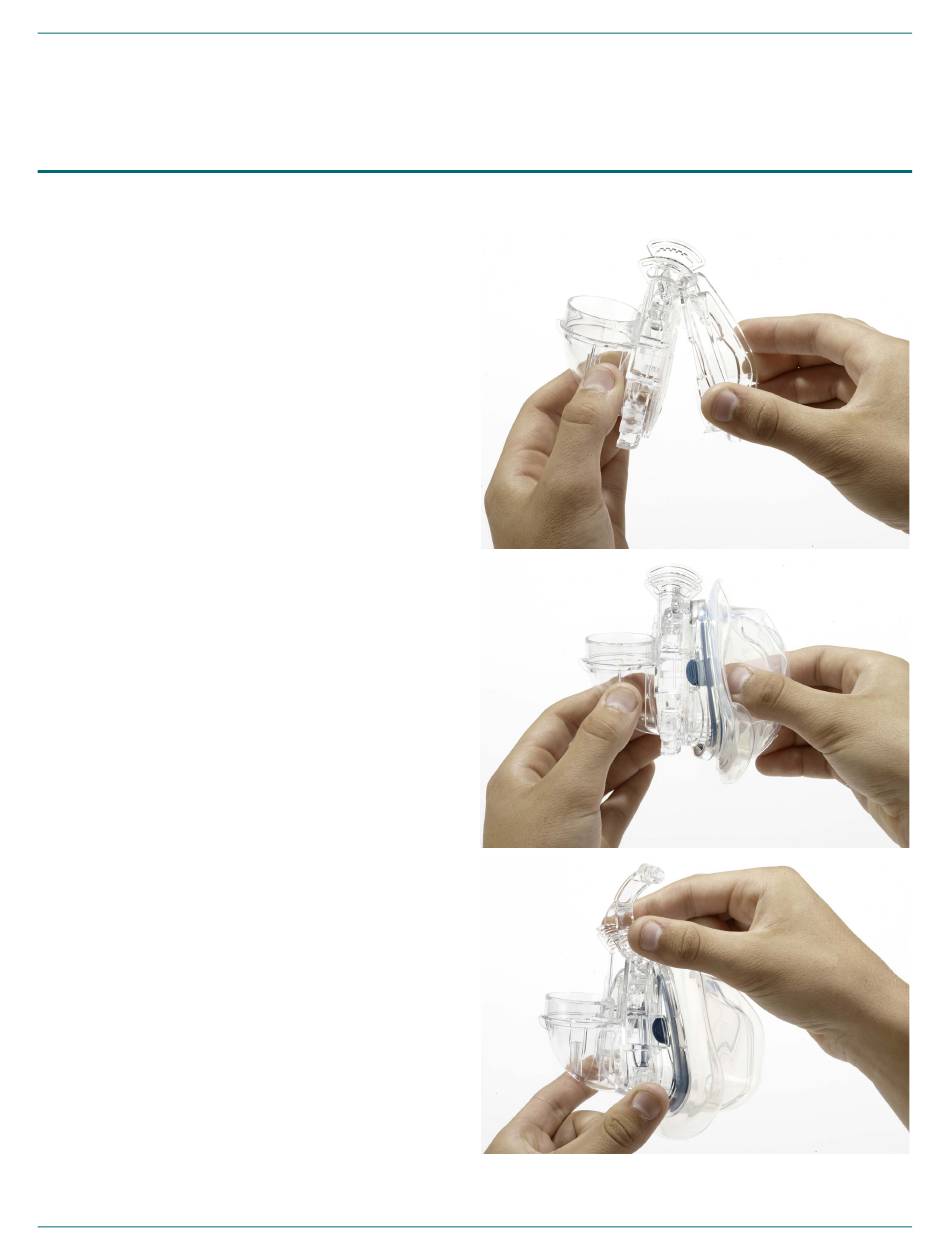

1. Attach the adaptor ring to the mask shell.
Connect the top clip first; then connect the
bottom clips. Both must click firmly into
place.
2. Clip the nasal seal into the adaptor ring.
3.
Connect the adjustment arm bar of the
appropriate size to the mask shell by squeezing
the sides of the arm until it fits into place, as
shown.
