Altronix Pace1PRMT Installation Manual page 4

Fig. 3
100m max.
100m max.
100m max.
100m max.
Powered Switch or
NetWay MidSpan
Maximum Length of Cable Type vs. Camera Power/PoE Class:
Cable Type
CAT5e
Cable Type
Single UTP
(23AWG)
Note: Calculations based on 56VDC starting voltage from power source and accounts for a
10VDC voltage drop. IEEE standards voltage range requirement for powered devices are:
PoE (15W) - 37VDC to 57VDC
PoE+ (30W) - 44VDC to 57VDC.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IIPace1PRMT
- 4 -

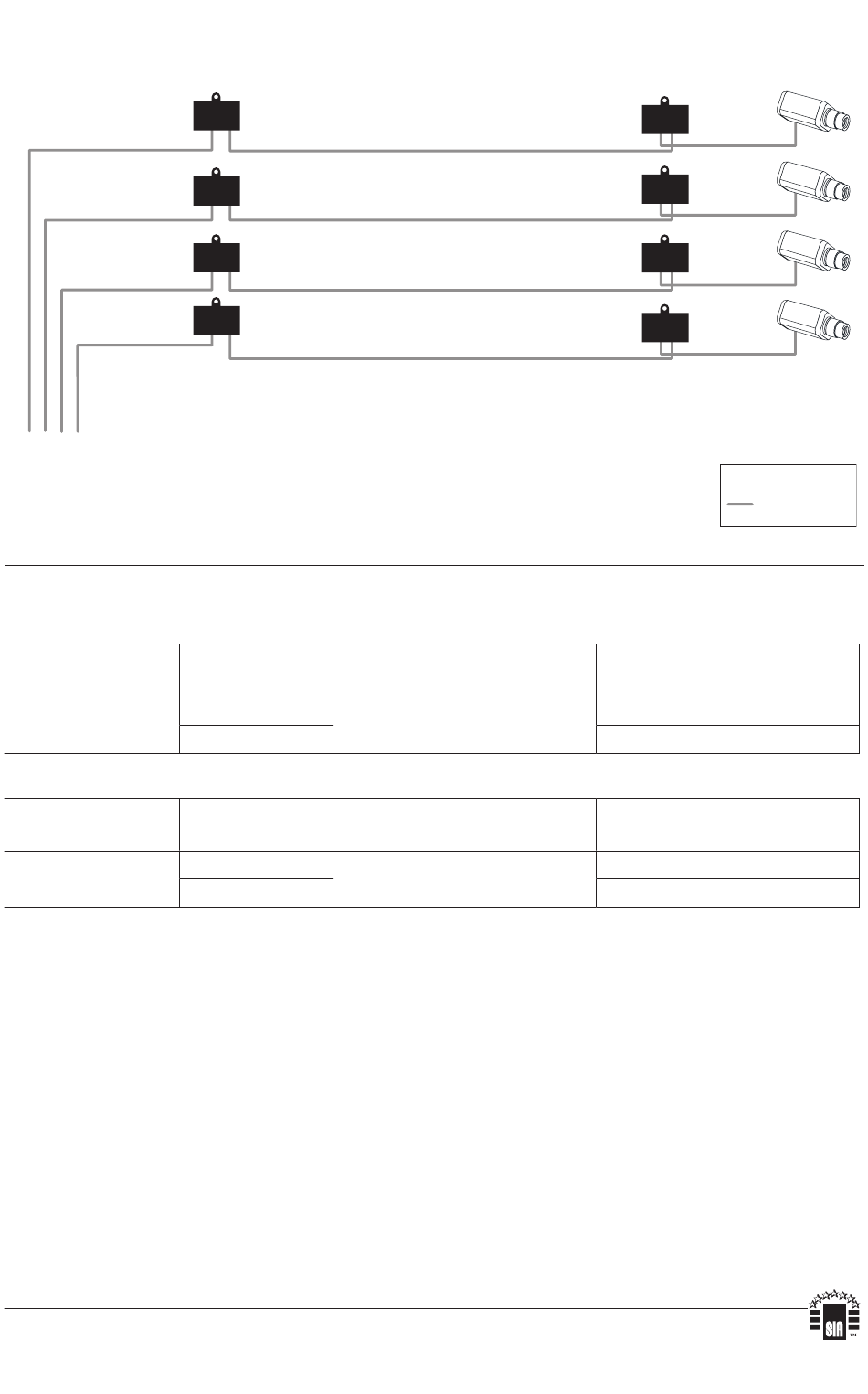

Multiple PoE Cameras Connection:
Pace1PRM
Pace1PRM
Pace1PRM
Pace1PRM
Total Power
Consumption
15W
30W
Total Power
Consumption
15W
30W
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
Max.
Data Distance
500m
Max.
Data Distance
153m
H17Q
Pace1PTM
PoE compliant
100m max.
PoE Camera
Pace1PTM
PoE compliant
100m max.
PoE Camera
Pace1PTM
PoE compliant
100m max.
PoE Camera
Pace1PTM
PoE compliant
100m max.
PoE Camera
Legend:
Structured Cable
or Single UTP
Max.
Power Distance
846m
423m
Max.
Power Distance
266m
133m
