Altronix Pace1PRMT Installation Manual page 3

Fig. 1
Pace1PRM
Single UTP from
Pace1PTM
CAT5 or higher
from Pace1PTM
*Note: Caution, once PoE connection is established between Pace1PRM and Pace1PTM, discon-
nection from Pace1PTM will not disable the PoE output voltage on the Pace1PRM. Although the
Pace1PTM can be reconnected, caution should be taken not to connect the CAT5e or single UTP
wiring from Pace1PRM to any non-PoE device.

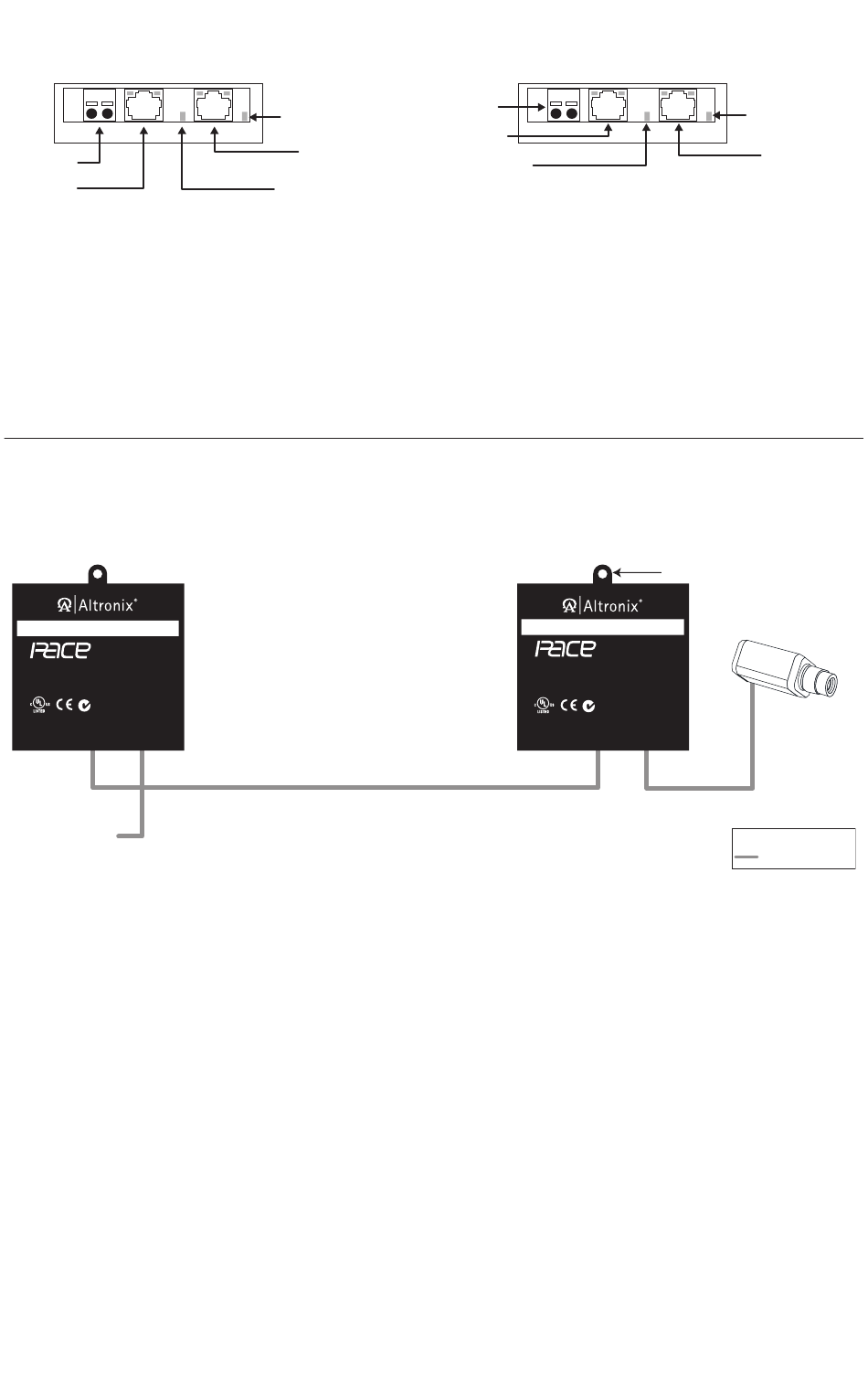

Single PoE Camera Connection Utilizing Pace1PRM and Pace1PTM:
Fig. 2
Pace1PRM
Pace1PRM - Receiver
IP-UTP Receiver
Passes PoE/PoE+
RJ45 LEDs Yellow - Activity
Green - Speed
Green LED Power and PoE
www.altronix.com
Z1409
I.T.E. 43KC
Output Input
UTP RJ45 PoE PoE PoE
Link Link LED Input LED
100m max.
Powered Switch
or NetWay MidSpan
Pace1PRMT
Green LED indicates PoE
from Pace1PRM
Present from Midspan/Endspan
from Pace receiver
Structured Cable
to Midspan/Endspan Green LED indicates
PoE received from Pace1PRM
Green LED indicates PoE
being transmitted to Pace1PTM
PoE+ over CAT5e up to 500m max.
Single UTP
CAT5 or higher
Fig. 2a
Pace1PTM
IP-UTP TRANSCEIVER
Transceiver
Passes PoE/PoE+
RJ45 LEDs Yellow - Activity
Green - Speed
Green LED Power and PoE
Z1409
I.T.E. 43KC
UTP RJ45
Link Link
Pace1PTM
Green LED indicates PoE
transmitted to Camera/Device
Structured Cable from
Camera/Device
Mounting Hole
PoE Camera
www.altronix.com
Input Output
PoE
PoE PoE
LED Out LED
PoE compliant
100m max.
Legend:
Structured Cable
- 3 -
