3.2 Clearing Memory

The Surge + Diagnostic is able to timestamp the 60 most recent power quality events (information stored
in microcontroller non-volatile memory). The microcontroller memory contents can be cleared at any time
by following one of these two methods:

3.2.1 RST Button

3.2.2
© 2013 SurgeX / Electronic Systems Protection, Inc. / Technical Support 800.645.9721 / www.surgex.com /

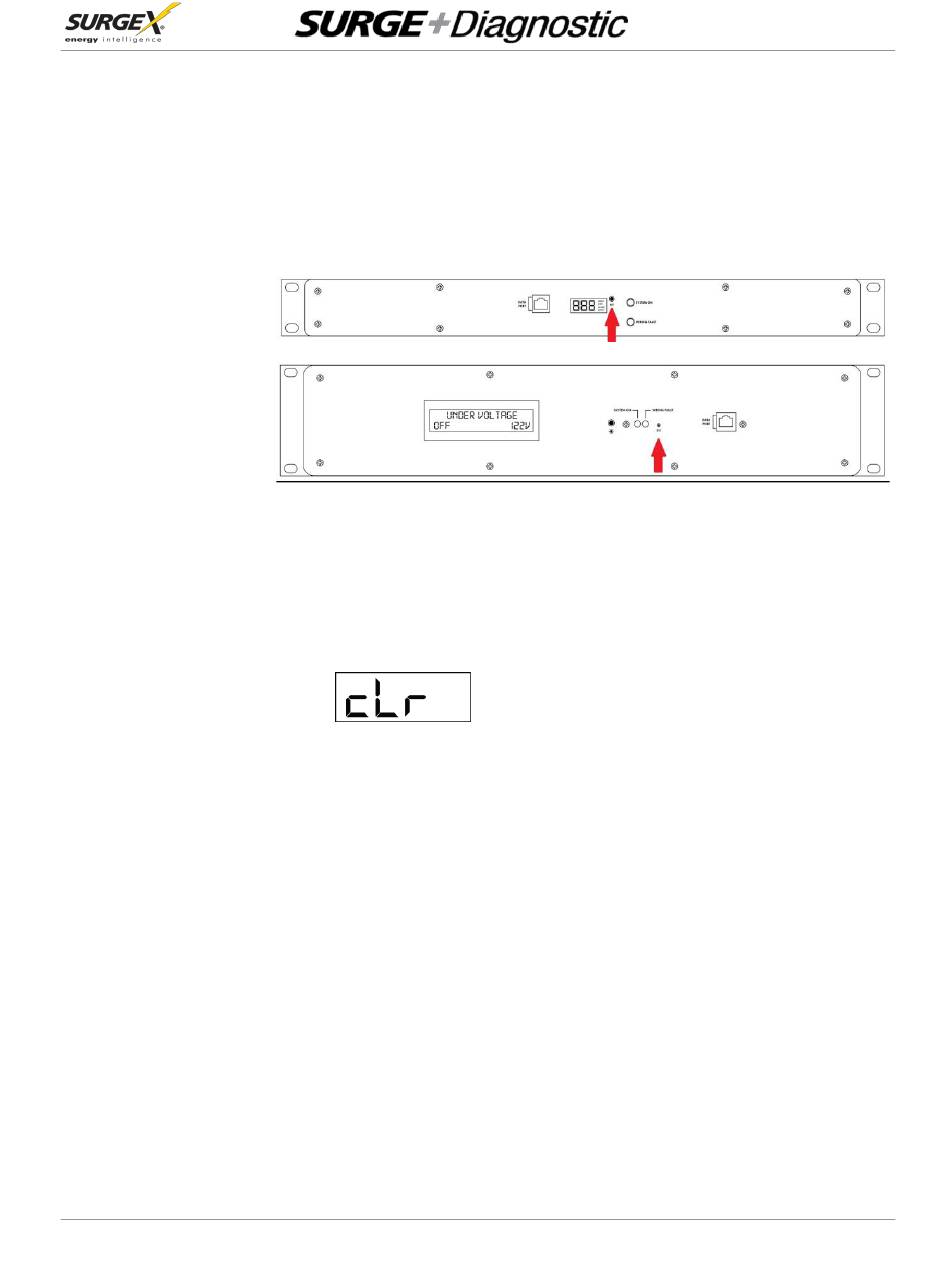

There is a recessed push button located on the front panel.
a. Follow these steps to clear the device memory:
1. Unplug the input cord of the Surge + Diagnostic from the branch circuit outlet.
2. Using a paperclip or small screwdriver, press and hold the RST button.
3. Plug the input cord of the Surge + Diagnostic into a properly grounded and
compatible branch circuit outlet, while continuing to hold the RST button.
4.
Wait approximately 3-5 seconds; the LCD Event Monitor will now display "cLr"; release
the RST button and the device microcontroller memory will now be cleared

Diagnostic Software

The device microcontroller memory may alternately be cleared from within the Diagnostic
Software in the following location: "Tools/Clear Device Memory". See Section 4– 4.3- C: Tools
.
Menu, for details
