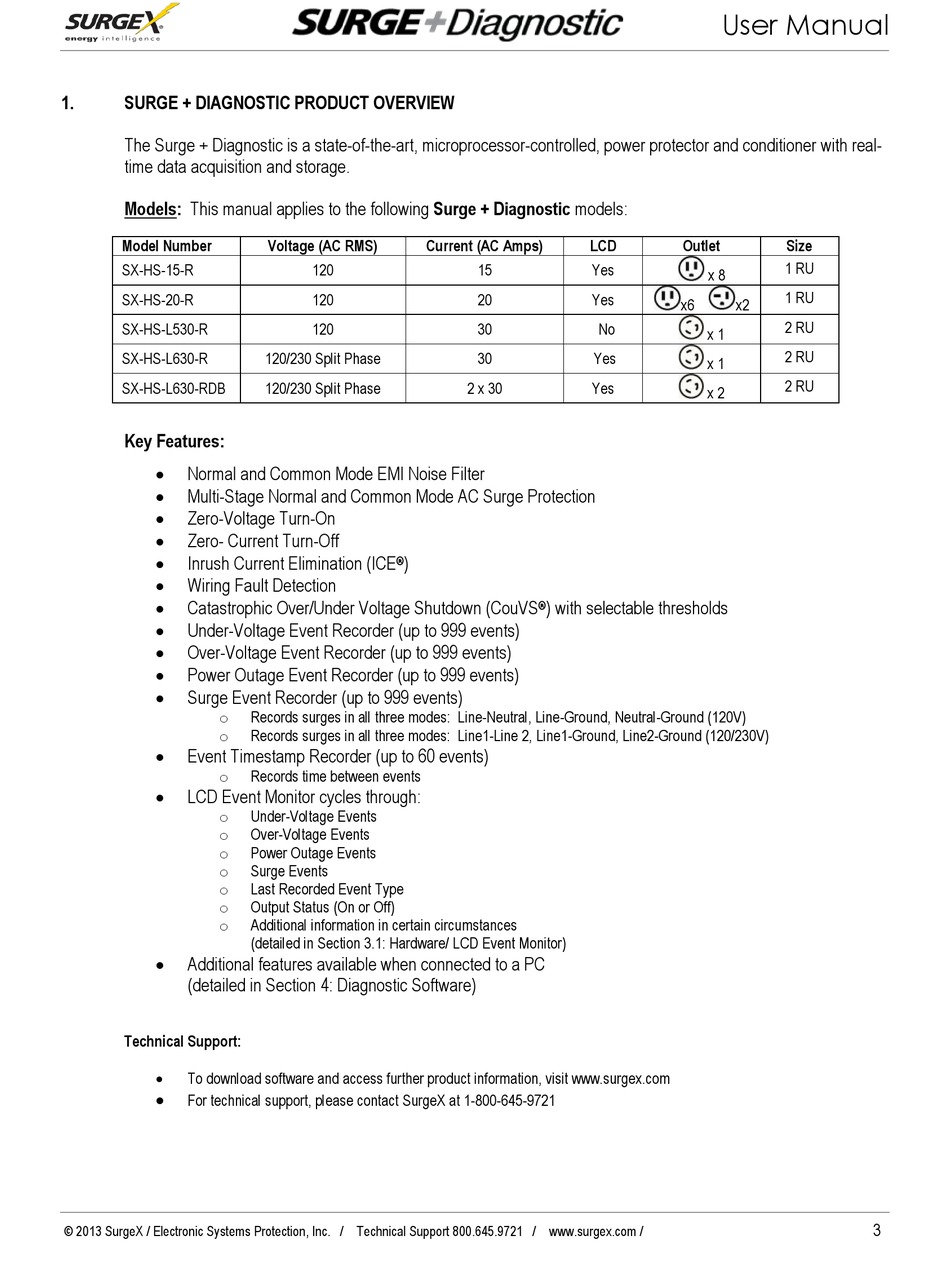

1. SURGE + DIAGNOSTIC PRODUCT OVERVIEW
The Surge + Diagnostic is a state-of-the-art, microprocessor-controlled, power protector and conditioner with real-
time data acquisition and storage.
Models: This manual applies to the following Surge + Diagnostic models:
Model Number
SX-HS-15-R
SX-HS-20-R
SX-HS-L530-R
SX-HS-L630-R
SX-HS-L630-RDB
Key Features:

Normal and Common Mode EMI Noise Filter

Multi-Stage Normal and Common Mode AC Surge Protection

Zero-Voltage Turn-On

Zero- Current Turn-Off

Inrush Current Elimination (ICE

Wiring Fault Detection

Catastrophic Over/Under Voltage Shutdown (CouVS

Under-Voltage Event Recorder (up to 999 events)

Over-Voltage Event Recorder (up to 999 events)

Power Outage Event Recorder (up to 999 events)

Surge Event Recorder (up to 999 events)
o
o

Event Timestamp Recorder (up to 60 events)
o

LCD Event Monitor cycles through:
o
o
o
o
o
o
o

Additional features available when connected to a PC
(detailed in Section 4: Diagnostic Software)
Technical Support:

To download software and access further product information, visit www.surgex.com

For technical support, please contact SurgeX at 1-800-645-9721
