Device: Bolin VCC-7HD30S-3SMN

Introduction

A large number of parameters can be controlled on the Bolin VCC-7HD30S-3SMN. Control is via VISCA

over IP (and not NDI). The Device Core is still in beta with few bugs to get sorted out.

Please notice currently the Bolin camera do not support block inquiry commands over IP, so not all current

settings on the camera will be transmitted back to our controllers. Examples

When our controller connects to the camera some settings will not be in sync with the actual state of the

camera. The shutter speed on our controller could reﬂect one setting, while the actual shutter speed on

the camera could be different until the shutter speed has in fact been set from our controller

If multiple SKAARHOJ controllers are connected to the same camera they will not be in sync, and

control might not be possible

If changes are made in the OSD these will not necessarily be reported back to the SKAARHOJ

controller

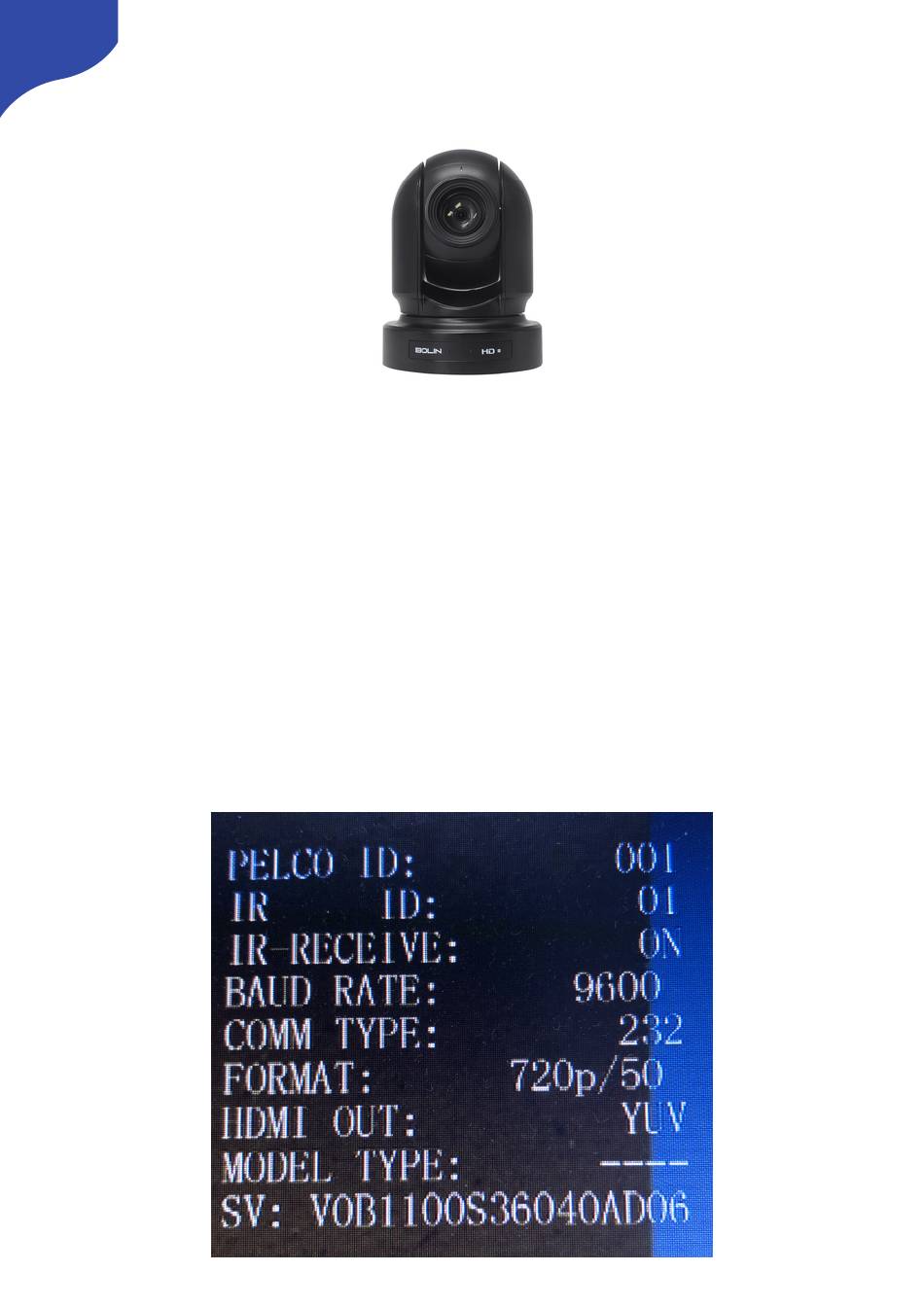

The implementation is done on Bolin VCC-7HD30S-3SMN Firmware version:

SKAARHOJ DEVICE CORES

Table of Contents

Do you have a question about the VCC-7HD30S-3SMN and is the answer not in the manual?

Page 1 Device: Bolin VCC-7HD30S-3SMN Introduction A large number of parameters can be controlled on the Bolin VCC-7HD30S-3SMN. Control is via VISCA over IP (and not NDI). The Device Core is still in beta with few bugs to get sorted out. Please notice currently the Bolin camera do not support block inquiry commands over IP, so not all current settings on the camera will be transmitted back to our controllers.
Page 2 SKAARHOJ DEVICE CORES Please see the “PTZ Manual” at https://www.skaarhoj.com/support/manuals/ to learn more about PTZ control in general from SKAARHOJ controllers and in particular network recommendations. In this manual it is worth noticing that one should not add additional Device Cores to control multiple cameras.
Page 3 SKAARHOJ DEVICE CORES Device Conﬁgurations Device conﬁguration options exist: Index 1: Video Standard If “0” = Reserved If “1” = Pal mode If “2” = NTSC mode Example: Enabling “Video Standard” to NTSC mode could look like this device conﬁguration code: “D0:1=2” where the general form would be “Dx:y=z”...
Page 4 SKAARHOJ DEVICE CORES Connection When a controller have successfully established connection to the camera the serial monitor will report "Status received from camera x!”...
Page 5 SKAARHOJ DEVICE CORES This is a overview of the actions implemented in the Device Core...
