6. Description of components

6.2.3 Description of the PGA 3

General remarks
The PGA 3 reads out the setup/actual values
received from the respectively selected pulse
meter. The measured values are displayed in
"Pulses/Min" or alternatively in "Liters/Min".
Moreover, the PGA 3 is also used to program
the threshold values and enter the groups for
the master and slave devices (IPM 12).
The measuring results are read out of the re-
spectively selected IPM 12 pulse meter via the
RS 232 serial interface. The data can be pas-
sed on to the downstream OPC server via a
LAN interface.

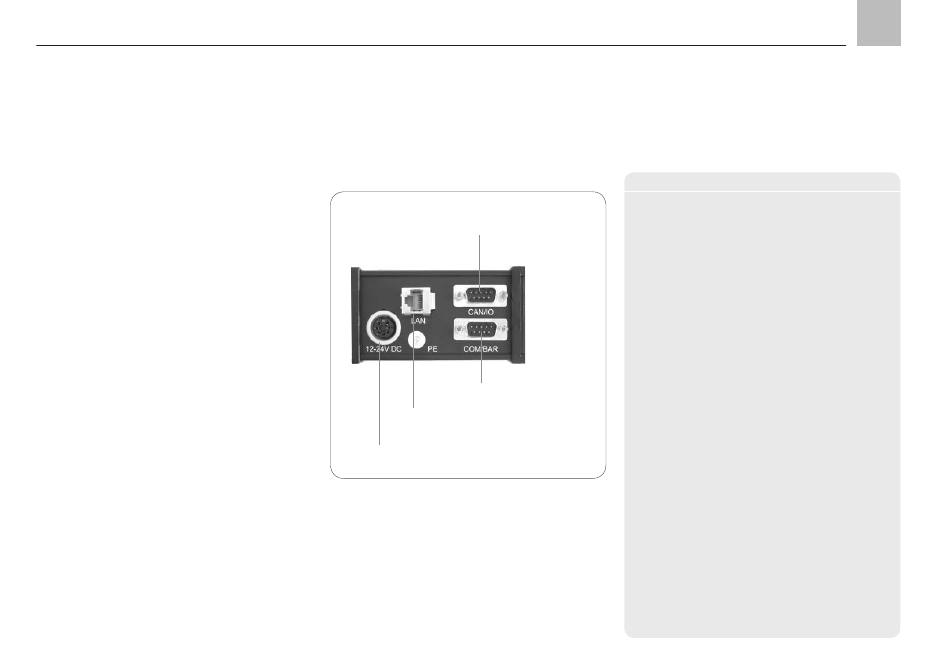

6.2.4 PGA 3 unit connection

not assigned
IPM 12 connection
OPC server connection
power supply
Page 77

6.2.5 PGA 3 characteristics

PGA 3 characteristics
General data
Mounting position any
Ambient temperature -20...+ 70 °C
Weight 1.4 kg
Type of protection IP 65
Processor
Type DIL/NetPC mit AMD
33Mhz, 8MB DRAM
Controller 10Mbit Ethernet
(LAN Controller
CS8900)
Electrical data
Operating voltage 24 V DC
Tolerance ± 15 %
Power consumption 170 mA
Interfaces Ethernet LAN inter
face RS232/422/485
serial Interface
Display
Display Graphic display
128x64 dots, CFL
backlighted, display
range approx. 62 x
44 mm, Dot size
approx. 0.55 mm
Display range 1...9999 pulses/min
or 0.01...99 liters/min
Display precision ± 2 %
EN
