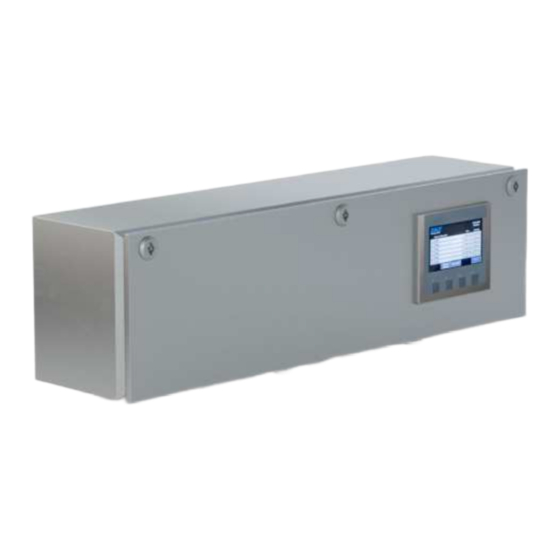

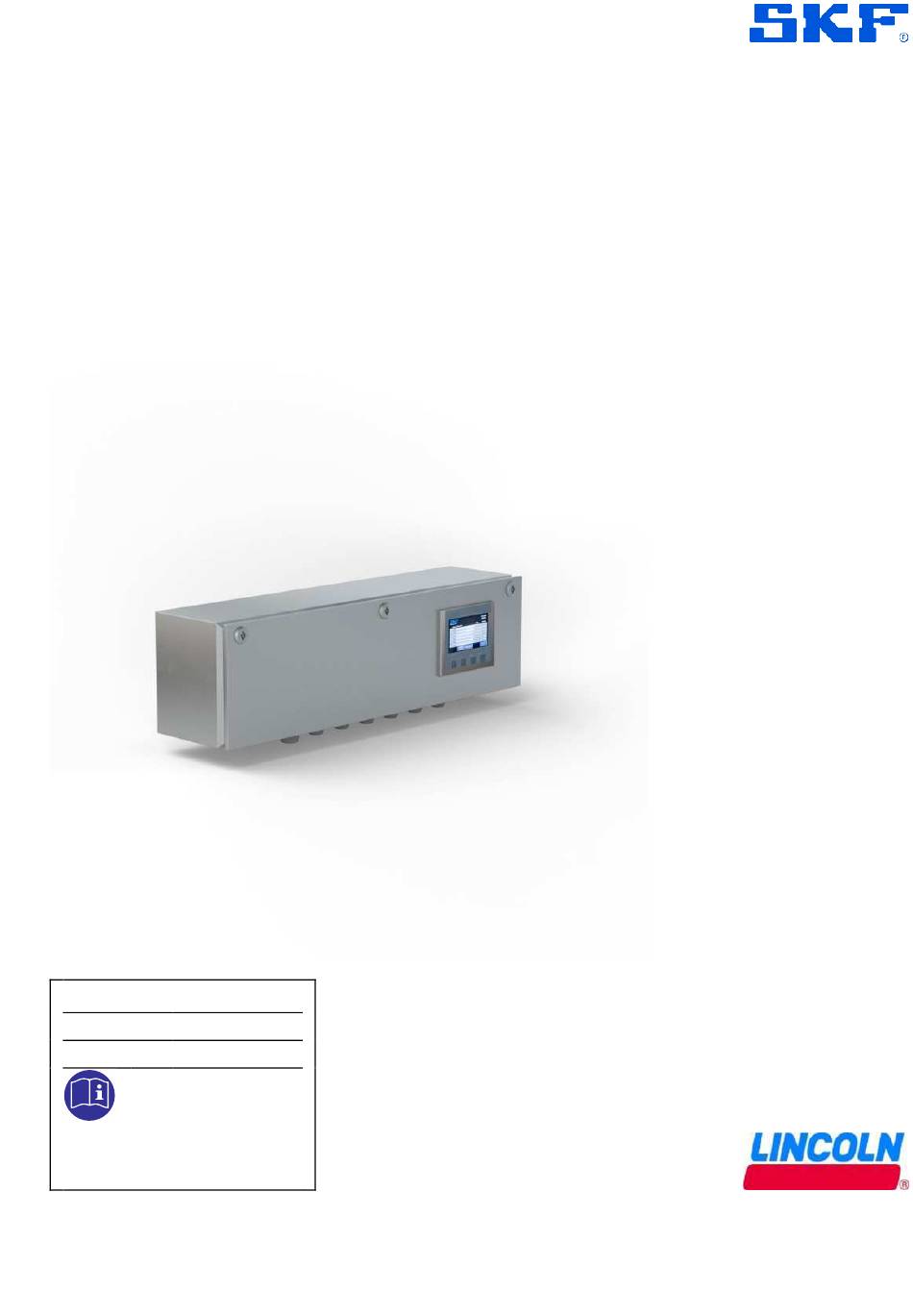

- Page 1 Operating Instructions Pulse meter IPM For digital flow monitoring in oil circulation systems Created on: 09-01-2023 Document no.: 951-180-199-EN Version: Read these instructions before installation or start-up of the product and keep them readily available for consultation.
- Page 2 Manager Application Engineering Europe Central Europe Central Manufacturer: SKF Lubrication Systems Germany GmbH, Heinrich-Hertz-Str. 2-8, 69190 Walldorf, Germany UK Declaration of Conformity pursuant to the Electrical Equipment (Safety) Regulations 2016 No. 1101, Annex IV The manufacturer hereby declares under its sole responsibility conformity of the product described below with all relevant harmonization legislation of the United Kingdom at the time of placing on the market.
-
Page 3: Masthead
Training www.skf.com/lubrication We conduct detailed training in order to enable maximum safety and efficiency. We recommend taking advantage of this training. Berlin Plant For further information, contact your authorized SKF dealer or Motzener Strasse 35/37 the manufacturer. 12277 Berlin Germany Tel. -
Page 4: Table Of Contents
4.4 Storage temperature range ............. 10 4.5 Declaration of decontamination ..........10 5. Assembly .................... 10 5.1 Dimensions ................. 11 5.1.1 Dimensions IPM 13 ............11 5.1.2 Dimensions IPM 29 ............12 5.1.3 Dimensions IPM 45 ............13 5.1.4 Dimension for mounting ..........14 5.2 Electrical connection .............. -
Page 5: Safety Alerts, Visual Presentation, And Layout
Safety alerts, visual presentation, and layout While reading these instructions, you will encounter various symbols, illustrations, and text layouts intended to help you navigate and understand the instructions. Their meaning is explained below. Safety alerts: Activities that present specific hazards (to life and limb or possible damage to property) are indicated by safety alerts. -
Page 6: Safety Instructions
Only • If protective and safety equipment has to be dismantled, it must original SKF spare parts and SKF accessories may be used. be reassembled immediately after finishing the work, and then • Any unclear points regarding proper condition or correct checked for correct function. -
Page 7: Tests
< • Use of C3 versions in areas with aggressive, corrosive WARNING substances (e.g., high salt load). Electrical component, electric shock hazard • Use of plastic parts in areas with high exposure to ozone, UV Disconnect the system or the corresponding light, or ionizing radiation. -
Page 8: Emergency Shutdown
with customer-specific Ethernet ports. The IPM is ideal for upgrading existing oil flow metering systems with pulse output or 1.17 Emergency shutdown static signals. This is done by a course of action to be defined by the operator. Fig. 2 1.18 Assembly, maintenance, fault, repair Prior to the start of this work, all relevant persons must be notified of it. -
Page 9: Power Disconnection
The first version monitors the gear wheels of one or more (max. 45) SKF flow meters. A flow can be determined from the pulses which is also displayed on the Touch Panel. The other version monitors whether an oil flow is present in SKF flow limiter. -
Page 10: Delivery, Returns, Storage
4.5 Declaration of decontamination 4. Delivery, returns, storage If the product came in contact with harmful substances, make 4.1 Delivery sure to thoroughly clean the product before returning it to us. Due to statutory provisions and for the safety of our employees After receipt of the shipment, it must be inspected for any and operation facilities we further need a fully completed and shipping damage and for completeness according to the shipping... -
Page 11: Dimensions
5.1 Dimensions 5.1.1 Dimensions IPM 13 Fig. 6 horizontal vertical... -
Page 12: Dimensions Ipm 29
5.1.2 Dimensions IPM 29 Abb. 7 horizontal vertical... -
Page 13: Dimensions Ipm 45
5.1.3 Dimensions IPM 45 Fig. 8 horizontal vertical... -
Page 14: Dimension For Mounting
5.3 Connection diagram for sensors Fig. 10 3-wire sensor The lines of the sensor outputs of the SKF flow meter / flow limiter must be placed on the terminal strip X3. The respective connection diagram is to be observed, depending on whether 3- wire or 2-wire sensors are installed. -
Page 15: Alarm Outputs Connection Diagram
6.2 General settings 5.5 Alarm outputs connection diagram Fig. 13 The IPM pulse meter is equipped with five relay outputs. These are floating. 15 different alarm combinations can be implemented as a result. Each input sensor and/or each lubrication point can be assigned to one of the 15 output combinations. -
Page 16: Setting The Individual Lubrication Points
Fig. 15 Table 2 Adjustable parameters Parameter Value Explanation <Co ntent> Name of max. 14 characters Freely selectable lubrication name point (e.g. Lube Point 1) Setpoint Max. 99.99 l/min Minimum setpoint (e.g. 20.50 l/min) ml / pulse max. 99.999 ml/pulse Proportional factor of the SMB/SMD Alarm Group 1 / 2 / 3 / 4 / 5 / 1+2 / Alarm group for... -
Page 17: First Start-Up
necessary. If necessary, copy the table for regular maintenance Fig. 18 activities. The described products are virtually maintenance-free. 9. Cleaning < WARNING Risk of fatal electric shock Cleaning work may only be performed on products that have been de-energized first. When cleaning electrical components, be mindful of the IP enclosure rating. -
Page 18: Faults, Causes, And Remedies
10. Faults, causes, and remedies Table 3 Malfunctions, causes, and remedies Fault Cause Remedy Touchscreen does not start or is off FC1 fuse tripped Check the power supply Supply line fuse tripped Check the fuses inside Loose contact on the touchscreen plug Check the plug on the touchscreen Touchscreen shows no values S7 1200 is not working or is faulty... -
Page 19: Spare Parts
Screwed gland, brass, M25×1.5 2360-00000377 DIGITAL INPUT vertical 237-13496-4 Nut SM-M 25×1.5 237-13498-3 Screwed gland, brass, M20×1.5 14 HMI-78001-1 Control panel IPM 13 horizontal 13 237-13496-3 Nut SM-M 20×1.5 HMI-78002-1 Control panel IPM 29 horizontal 29 2370-00000006 Set of multiple seals HMI-78003-1 Control panel IPM 45 horizontal 45 DIX-M, M20, 3x 5.3mm... -
Page 20: Appendix
14. Appendix 14.1 China RoHS Table Table 5... - Page 21 ® SKF and Lincoln are registered trademarks of the SKF Group. ™ eLube is a trademark of the SKF Group. © SKF Group 2022 Reprint or reproduction of the contents of this information - even in part - is permitted only with SKF's prior written consent.
