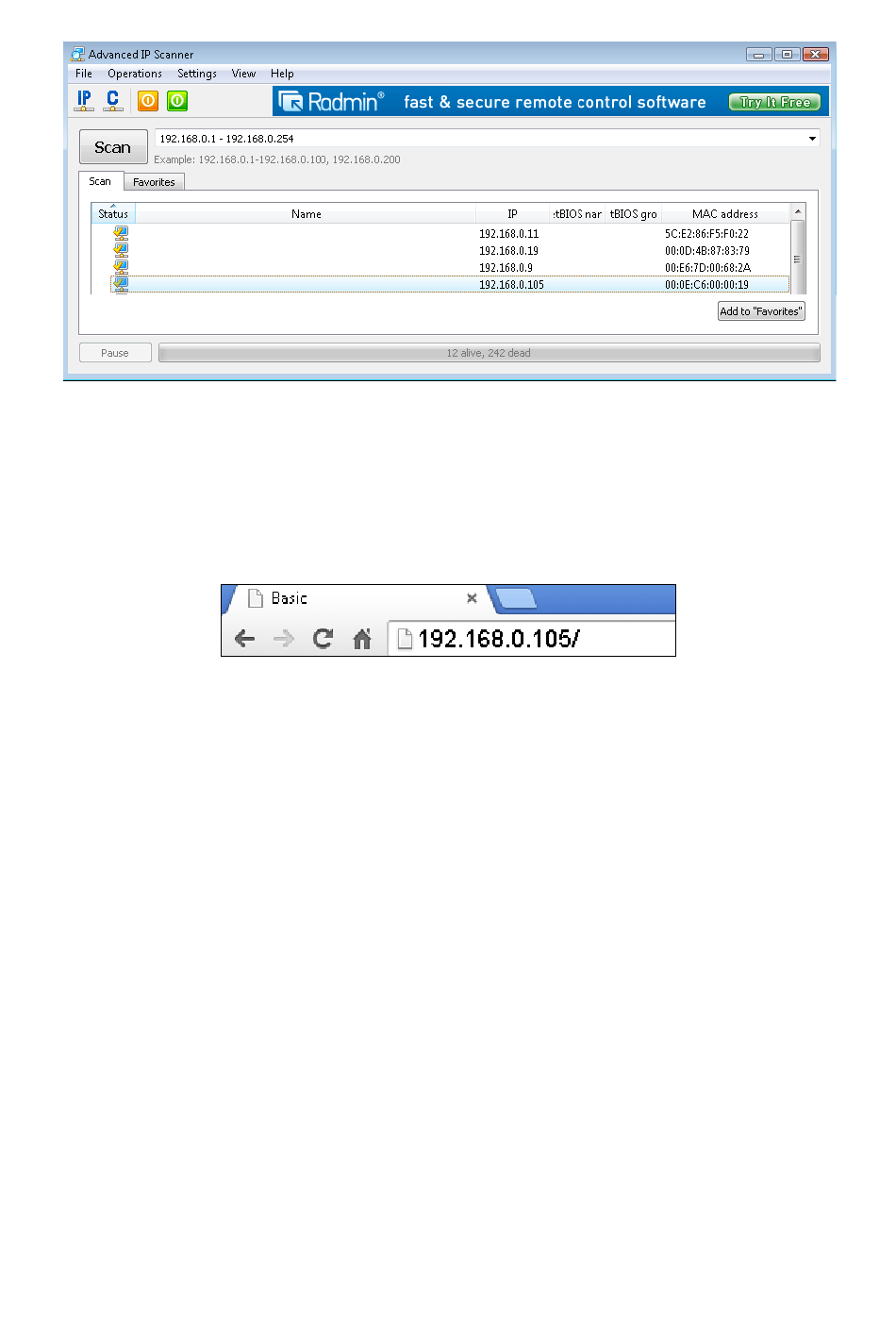

Type the IP address you located from the IP Scan Tool into your web browser (example,
Figure 5):
You are now communicating directly to the device and can proceed to Section 0.
4.6.5 Local Device Network Settings
From your web browser, access the device from the IP address obtained in the previous
section.
Select the Local Network tab to program the local network settings. Reference Figure 18:
1. IP Address. The default setting is receive automatically (DCHP), which is
recommended. The network will assign an IP address. To statically assign an IP
address, select Static from the pull down menu. This will prevent the IP address from
changing each time you power up the receiver.
2. Static IP Address. If Static is selected as the IP address, enter the IP address you
wish to access the device.
3. Static Subnet Mask. Default is 255.255.255.0. This should not be changed unless
you are familiar with networking and subnet masking.
4. Static Default Gateway. This is typically the IP address of your router.
5. Static DNS Server. This is your DNS Server setting based on your router connection.
6. Server Listening Port. Default is 5000. Enter an integer between 1024 – 65535.
Figure 24
Figure 25
