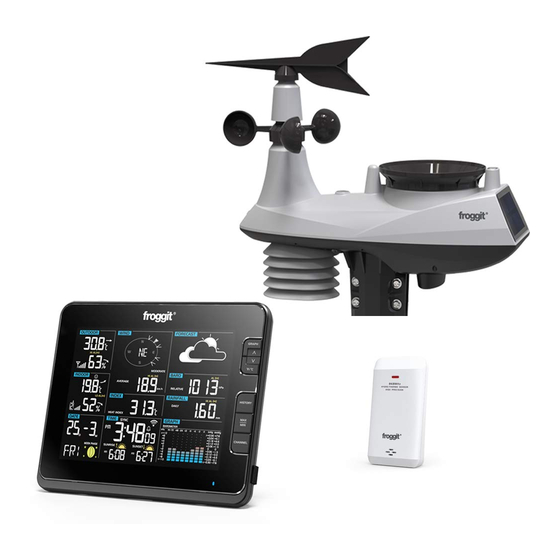

WH6000 WI-FI Internet Wireless Weather station
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Froggit WH6000

  • Page 1 WH6000 Manual (EN) WH6000 WI-FI Internet Wireless Weather station...
  • Page 2: Table Of Contents

    WH6000 Table of contents Introduction Overview Main Console LCD Display Installation and Setup Wireless Indoor Sensor Wireless Outdoor Sensor Main Console Create a Wunderground Account and Setup Wi-Fi Connection Viewing Live Weather Data Operation and other Settings oft he Console Time &...
  • Page 3: Introduction

    INTRODUCTION Thank you for selecting Wi-fi weather station with 6-in-1 professional sensor. This system gathers and automatically uploads accurate and detailed weather data to Weather Underground website - the famous weather service which allows weather observers to upload their local weather data with automated personal weather stations (PWS) - at which you can access and upload your weather data freely .
  • Page 4 6 . LCD display 10 . [ MAX / MIN ] key 7 . [ GRAPH / Λ ] key 11 . [ CHANNEL ] key 8 . [ °F / °C / V ] key 12 . Status LED 9 .
  • Page 5: Lcd Display

    LCD DISPLAY 1 . Outdoor temperature & humidity 6 . Time, sunrise/sunset & system status 2 . Indoor temperature & humidity 7 . Weather forecast 3 . Calendar & moon phase 8 . Barometer 9 . Rainfall 4 . Wind direction & speed 5 .
  • Page 6: Installation And Setup

    INSTALLATION AND SETUP WIRELESS INDOOR SENSOR Pairing the wireless Indoor sensor with the console 1 . Remove the battery door of the sensor . 2 . Insert 2 x AA size batteries into the battery compartment . Make sure you insert them the right way according to the polarity information marked on the battery compartment .
  • Page 7: Main Console

    Mounting guideline 1 . Install the sensor at least 1 .5m off the ground for better and more accurate wind measurements . 2 . Choose an open area within 150 meters from the main console . 3 . Install the sensor as level as possible to achieve accurate rain and wind measurements .
  • Page 8: Create A Wunderground Account And Setup Wi-Fi Connection

    Note: This console has a dual backup system which allows you to backup different settings and history records . Backup item list - Time & Date - Bar chart records By battery backup - Max/Min records - Past 24 hours weather history data records - Alert setting values - Router setting...
  • Page 9 Note: You need to validate your email address before you can register your weather station . Click “Send Validation Email” to receive an email from wunderground.com that contains a validation link. Click on the link to finish the validation. 2 . After you have created your account and completed the Email validation, please go back to the WUndergound web page .
  • Page 10 4 . Enter a name for your PWS, then choose “Other” for “Station Hardware” . Once you have completed, click “Submit” . 5 . Jot down Your Station ID and Station key for the further setup step .
  • Page 11 B. Setup the Wi-fi Console to transmit weather data to wunderground.com 1 . When you plug the adaptor into the DC jack to power up the Wi-fi console during the first time start up, or press and hold the [ Wi-Fi / SENSOR ] key for 6 seconds in normal mode, the Status LED on the main console will flash green light to signify that it has entered into the AP mode, in which the console is ready for the Wi-fi setup.
  • Page 12 5 . Click “Apply” to finish the setup. If all the information you entered is correct, the setup interface will show as the following. If it does not change, check and fill in the missing information . Once the setup is completed, the Wi-fi console will disconnect the Wi-fi connection with your smart phone or computer and start to search for the router that you have assigned .
  • Page 13: Viewing Live Weather Data

    VIEWING LIVE WEATHER DATA 1 . To view the wireless outdoor sensor's live data in a web browser (PC or mobile version), please visit www .wunderground.com, and then, In the menu bar, enter your “station ID” in the searching box . The weather information will show up on the next page . 2 .
  • Page 14: Operation And Other Settings Oft He Console

    OPERATION AND OTHER SETTING OF THE CONSOLE TIME & DATE, MOON PHASE, SUNRISE & SUNSET The TIME and DATE information windows locate at the bottom left of the console display . You can view all the time related information and console status in these two sections . Moon Phase The moon phase is determined by the time, date and time zone .
  • Page 15: Wi-Fi Connection Status

    Wi-fi CONNECTION STATUS As soon as the console successfully connects to the Wi-fi router, the Wi-fi signal icon “ ” will appear on the LCD display. If the Wi-fi signal is not stable or the console is trying to connect to the router, the icon will flash.
  • Page 16: Setting Alarm Time

    SETTING ALARM TIME 1 . In normal time mode, press and hold [ ALARM ] key for 2 seconds until the alarm hour digit flashes to enter alarm time setting mode. 2 . Press [ GRAPH / Λ ] or [ °F / °C / V ] key to adjust the value, or press and hold to change rapidly .
  • Page 17: Wind

    The INDOOR Window The INDOOR window displays the thermo-hygro reading of wireless indoor thermo-hygro sensor(s) (Ch .1 -Ch .7) Wireless Indoor sensor signal strength: No signal Weak signal Good signal Note: Please locate the sensors where console can receive good signal . Viewing Different Indoor Channel This console is capable to pair with up to 7 wireless indoor thermo-hygro sensors .
  • Page 18: Weather Index

    Viewing Wind Direction Real time wind Past wind directions direction indicator indicator of last 5 minutes Wind direction in 360° Wind speed level or 16-direction Average / gust wind speed To select the wind display mode In normal mode, press [ WIND ] key to switch between AVERAGE wind speed and GUST wind speed .
  • Page 19 1 . In normal mode of the console, press and hold [ INDEX ] key for 10 seconds to enter into UV index calibration mode 2 . Use [ GRAPH / Λ ] or [ °F / °C / V ] key to adjust the UV gain magnification factor 3 .
  • Page 20 20 ~ 28 km/h Dust and loose paper raised . Small 13 ~ 17 mph Moderate breeze branches begin to move . 11 ~ 16 knots 5.5 ~ 7.9 m/s 29 ~ 38 km/h Branches of a moderate size move . 18 ~ 24 mph Fresh breeze Small trees in leaf begin to sway .
  • Page 21: Weather Forecast

    Wind Chill A combination of the wireless outdoor sensor's temperature and wind speed data determines the current wind-chill factor . Heat Index The heat index, which is determined by the wireless outdoor sensor's temperature & humidity data, when the temperature is between 27°C (80°F) and 50°C (120°F) . Heat Index range Warning Explanation...
  • Page 22: Barometric Pressure

    Note: - The weather forecast is reflecting the weather situation for next 12 hours, it may not necessarily reflect the current situation. - The “Snowy” icon will be displayed when the outdoor temperature is below -3°C (26°F), and under cloudy or rainy forecast . BAROMETRIC PRESSURE The barometric pressure window (BARO) locates in the middle right of the LCD Barometric pressure: the atmospheric pressure is the pressure at any location of the Earth caused by...
  • Page 23: Rainfall

    RAINFALL The RAINFALL reading displays in the middle right of the LCD . It shows how many mm/inches of rain have accumulated in the rain collector in one-hour time period to indicate the current rainfall rate . To set the rainfall unit 1 .
  • Page 24 Outdoor °F or °C Past 72 hours temperature Indoor humidity Past 72 hours (according to the current channel) Outdoor humidity Past 72 hours Rainfall mm or in Past 7 days (daily) To view the daily MAX/MIN The console can record the daily MAX/MIN weather data for your easy review . - In normal mode, press [ MAX / MIN ] key to check the daily MAX/MIN records .
  • Page 25: Weather Alert Setting

    WEATHER ALERT SETTING Weather Alert can alert you of certain weather conditions . Once the alert criterion is met, the alarm sound will activate and the LCD’s alert icon will flash. To set alert 1 . Press [ ALERT ] to select and display the desired weather alert reading in the sequence below: Alert reading Sequence Setting Range...
  • Page 26: Pointing The 6-In-1 Sensor To South

    POINTING THE 6-IN-1 SENSOR TO SOUTH The outdoor 6-in-1 sensor is calibrated to point to North for the maximum accuracy . However, for the user's convenience (e .g . users in the Southern hemisphere), it is possible to use the sensor with the wind vane pointing to South .
  • Page 27: Cleaning The Uv Sensor And Calibration

    CLEANING THE UV SENSOR AND CALIBRATION Clean the UV sensor cover lens For precision UV measurement, gentle clean the UV sensor cover lens by the pure water regularly . UV Sensor Degradation Over time, the UV sensor will naturally degrade . The UV sensor can be calibrated with a utility grade UV meter .
  • Page 28: Precautions

    6 . Once the update completed, the main console will restart and return to the normal display screen . 7 . Remove the USB mass storage driver from the main console . 8 . Set the time zone on the main console . 9 .
  • Page 29: Specification

    SPECIFICATION MAIN CONSOLE General Specification Dimensions (W x H x D) 215 x 172 x 29mm (8 .5 x 6 .8 x 1 .1in) Weight 639g (with batteries) Main power DC 5V, 1A adaptor Backup battery 3 x AAA size 1 .5V batteries (alkaline recommended) -5˚C ~ 50˚C Operating temperature range Wi-fi Communication Specification...
  • Page 30 Indoor / Outdoor Temperature Display & Function Specification Note: The following details are listed as they are displayed or operate on the console . Temperature unit °C and °F Display range -40 ~ 80°C (-40 ~ 176°F) 55 ~ 60°C ± 0.5°C (131 ~ 140°F ± 0.9°F) Accuracy 10 ~ 55°C ±...
  • Page 31 Weather Index Display & Function Specification Note: The following details are listed as they are displayed or operate on the console Weather index mode UV Index, Beaufort, Wind Chill, Heat Index and Dew point UV index range 0 ~ 16 Beaufort scale 0 ~ 12 Wind Chill range...
  • Page 32 We accept no liability for technical errors or printing errors, and their consequences. All trademarks and copyrights are acknowledged. www.froggit.de HS Group GmbH & Co. KG Escherstr.31 50733 Koeln...
  • Page 33 The declaration of conformity for this product can be found at: www.froggit.de or on reques.
